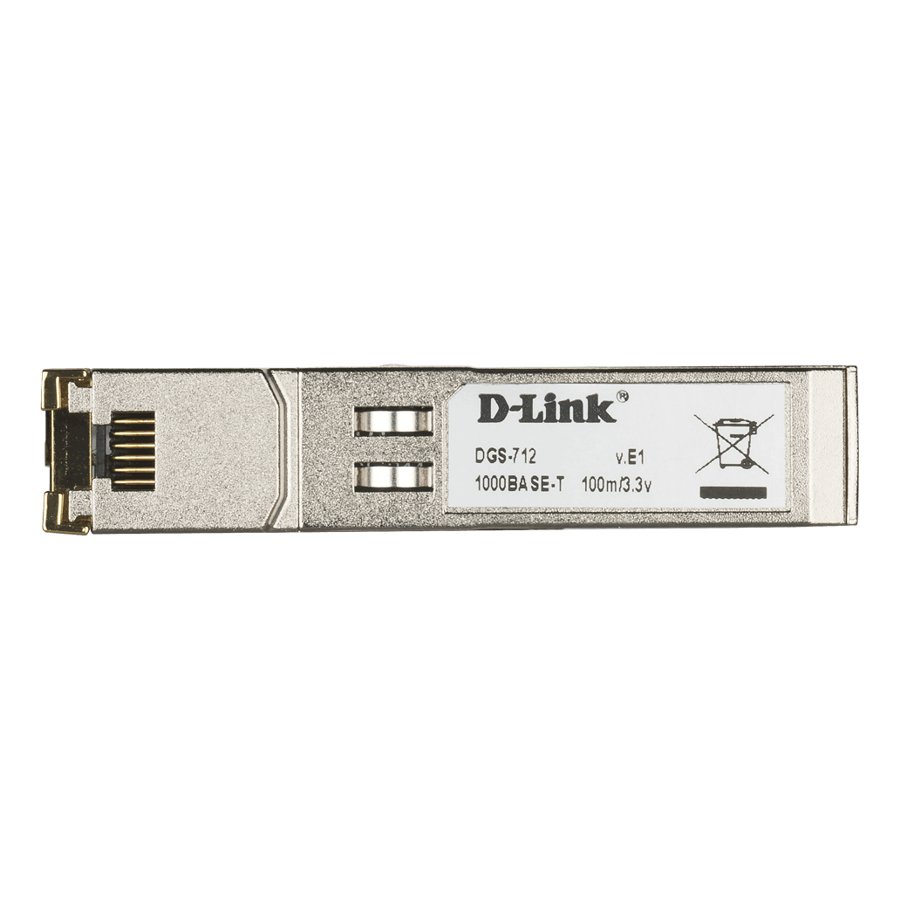

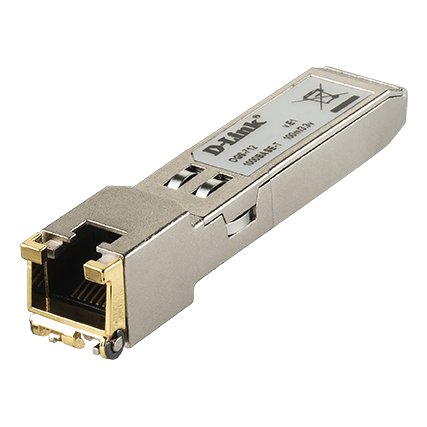

D-Link DGS-712 1000Base-T Copper SFP Transceiver
D-Link DGS-712 1000Base-T Copper SFP Transceiver من منتجات منتج. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A D-Link SFP / SFP+ transceiver module for fiber or copper uplinks on D-Link switches.
- 1-port 1000BaseT 3.3V mini-GBIC
عام
| الموديل | DGS-712 |
|---|
Key Features
- 1-port 1000BaseT 3.3V mini-GBIC
Best Fit Applications
Switch uplinks and backbone links.
Technical Specifications
| Model | DGS-712 |
|---|---|
| Description | 1-port 1000BaseT 3.3V mini-GBIC |
| Compliant Standard | IEEE 802.3 10BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3u 100BASE-TX Note: Conditionally support 10/100BASE-T operation in host system with SGMII interface. Please check switch system whether there is SGMII reserved |
| Transceiver Type | RJ45 |
| Distance Capacity | 100m |
| Speed | 1Gbps Note: Conditionally support 10/100BASE-T operation in host system with SGMII interface. Please check switch system whether there is SGMII reserved |
| Cable Type | Cat5 Cat5e Cat6 |
| Power Feature | 3.3 V |
| Max Input Current | 375mA |
| MTBF | 5,617,000 hours |
| Temperature | Operating: 0 ~ 85 °C Storage -40 ~ 85℃ |
| Humidity | Operating: 0~80% RH Storage: 0%-80% RH |
| Dimensions | 13.7mm(W)x 70.2mm(D)x13.4mm(H) |
| Weight | 20g |
![[DEM-410T] D-Link DEM-410T SFP+ 10GBASE-T Copper Transceiver](/web/image/product.template/2898/image_512)
![[DEM-431XT-DD] D-Link DEM-431XT-DD 10GBase-SR SFP+ Transceiver, DDM, 80/300m](/web/image/product.template/2899/image_512)
![[DEM-432XT-DD] D-Link DEM-432XT-DD 10GBASE-LR SFP+ Transceiver (with DDM)](/web/image/product.template/2900/image_512)
![[DMC-520SSC] D-Link DMC-520SSC 10/100M 1310nm SM 20Km SC](/web/image/product.template/2908/image_512)
![[DMC-700MSC] D-Link DMC-700MSC 10/100/1000BASE-T Gigabit Twisted-pair to 1000BASE-SX Gigabit Fiber 850nm Multi-mode Fiber](/web/image/product.template/2909/image_512)
![[DMC-810SSC] D-Link DMC-810SSC 10/100/1000BASE-T Gigabit Twisted-pair to 1000BASE-LX Gigabit Fiber 1310nm Single-mode Fiber](/web/image/product.template/2910/image_512)
![[DEM-310GT] D-Link 1-Port Mini GBIC Module for 1000BaseLX (LC Duplex)](/web/image/product.template/724/image_512)

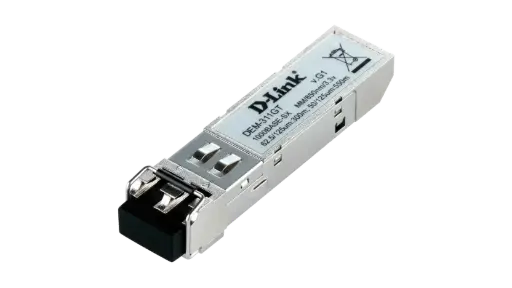

![[DEM-311GT] D-Link Gigabit SFP Transceivers](/web/image/product.template/738/image_512)
