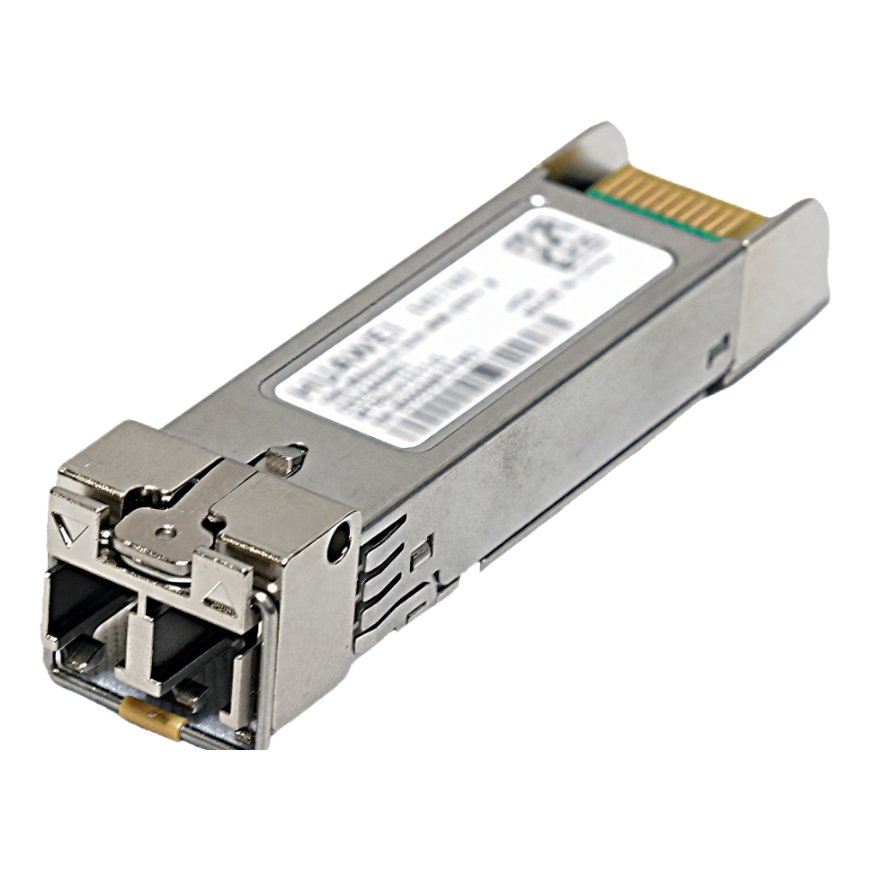

Huawei OGSC10DD0 Optical Transceiver, eSFP(industry), 1310nm, 1.25Gb/s, -9.5~-3dBm, -20dBm, LC, single-mode, 10km
Huawei OGSC10DD0 Optical Transceiver, eSFP(industry), 1310nm, 1.25Gb/s, -9.5~-3dBm, -20dBm, LC, single-mode, 10km من منتجات منتج. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
An original Huawei optical transceiver / cable for Huawei eKit switches, routers and firewalls.
- Optical Transceiver, eSFP(industry), 1310nm, 1.25Gb/s, -9.5~-3dBm, -20dBm, LC, single-mode, 10km
عام
| الموديل | OGSC10DD0 |
|---|
Key Features
- Optical Transceiver, eSFP(industry), 1310nm, 1.25Gb/s, -9.5~-3dBm, -20dBm, LC, single-mode, 10km
Best Fit Applications
Fiber uplinks and stacking between Huawei switches, servers and storage.
Technical Specifications
| Model | OGSC10DD0 |
|---|---|
| Part Number | 02310LJH |
| Level-1 category | GE eSFP Optical Modules, Industrial Optical Modules |
| Module name | OGSC10DD0 |
| Form Factor | eSFP |
| Application standard | 1000BASE-LX10/LH |
| Connector type | LC |
| Optical fiber type | SMF |
| Working case temperature[°C(°F)] | -40°C to +85°C (-40°F to +185°F) |
| Digital diagnostic monitoring (DDM) | Supported |
| Transmission rate[bit/s] | 1 Gbit/s |
| Target transmission distance[km] | Single-mode fiber: 10 km |
| Center wavelength[nm] | 1310 |
| Maximum Tx optical power[dBm] | -3.0 |
| Minimum Tx optical power[dBm] | -9.0 |
| Minimum extinction ratio[dB] | 9.5 |
| Rx sensitivity[dBm] | -19 |
| Overload power [dBm] | -3.0 |
