كود المنتج:
CMP200 (L/R)

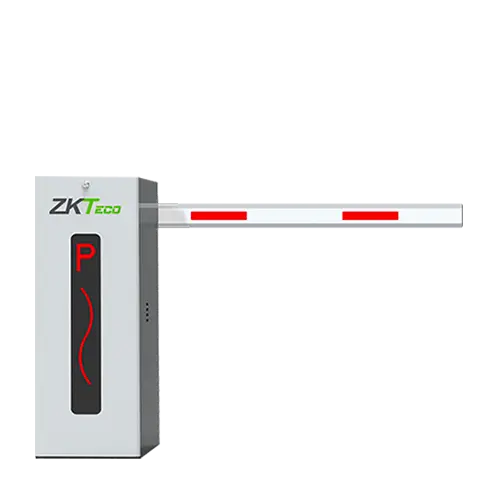

ZKTeco Automatic Barrier Gate with Telescopic Boom Arm
ZKTeco Automatic Barrier Gate with Telescopic Boom Arm (CMP200 (L/R)) من منتجات بوابة مواقف سيارات. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
CMP200 (L/R)
The zk CMP200 (L/R) is an automatic barrier gate manufactured by ZKTeco, designed for controlling vehicle access in areas like parking lots and commercial properties. The (L/R) designation specifies whether the barrier's main cabinet is mounted on the left (L) or right (R) side of the passage.
Key features
- Automatic operation: The barrier system automates the process of opening and closing the boom arm for vehicle entry and exit.
- Telescopic boom arm: The CMP200 uses a straight telescopic boom, which can be adjusted to a length of up to 4.5 meters. This allows for flexibility during installation to accommodate different lane widths. A larger, 6-meter boom option may also be available.
- Fast operation: For the 4.5-meter boom, the gate can open or close in just 3 seconds, ensuring efficient traffic flow.
- Safety features: The system includes "anti-smash" technology to prevent the boom arm from damaging a vehicle or injuring a person. It is also compatible with external safety devices such as infrared detectors, loop detectors, and radar detectors for automatic closing.
- Durable construction: The barrier gate is built for long-term outdoor use, featuring a cold-rolled steel cabinet and a boom arm made of aluminum and wood.
- LED indicator: A built-in LED light on the chassis indicates the gate's status, providing a better user experience.
- Remote control: The barrier can be operated remotely via a key fob with an effective distance of up to 30 meters.
- Integration capability: It can be integrated with third-party systems, including access control, ticketing systems, and license plate recognition (LPR) technology.
Technical specifications
- Opening/closing time: 3s (for a 4.5m boom) or 6s (for a 6m boom).
- Supply voltage: AC110V/220V, 50/60Hz.
- Power consumption: Up to 120W.
- Operating temperature: -25°C to +75°C.
- Operating humidity: ≤90%.
- Dimensions (D*W*H): 350 x 280 x 1010 mm.
- Net weight: 45 kg.
Applications
The CMP200 is suitable for any location that requires reliable vehicle access control. This includes:
- Parking lots
- Office buildings
- Gated communities
- Industrial zones
- Toll booths
عام
| الموديل | CMP200 (L/R) |
|---|
المواصفات الفنية
| الموديل | CMP200 (L/R) |
| المواصفات | |
| زمن فتح / قفل البوابة | 3s (max. 4.5m), 6s (max. 6m) |
| جهد التغذية | AC110V / 220V, 50 / 60Hz |
| استهلاك الطاقة | 100W (max. 120W) |
| مسافة الريموت | ≤ 30m |
| تردد الريموت | 430MHz |
| خامة الكابينة | صلب مدرفل على البارد |
| خامة الذراع | ألومنيوم وخشب |
| درجة حرارة التشغيل | -25°C ~ +75°C |
| رطوبة التشغيل | ≤ 90% |
| أبعاد الجسم | 350 * 280 * 1010 (mm) |
| الوزن | 45kg |
| الوزن الإجمالي | 47kg |
| نوع الذراع | ذراع مستقيم تلسكوبي |
| وزن الذراع | 3.5kg(4.5m), 4.5kg(6m) |
| طول الذراع | 4.5m (طول التغليف 2.8m)، 6m (طول التغليف 3.6m) |
