10 Buttons Audio Outdoor Aluminum Slave Panel

Model DR-10US
Product Code: DR-10US
Commax

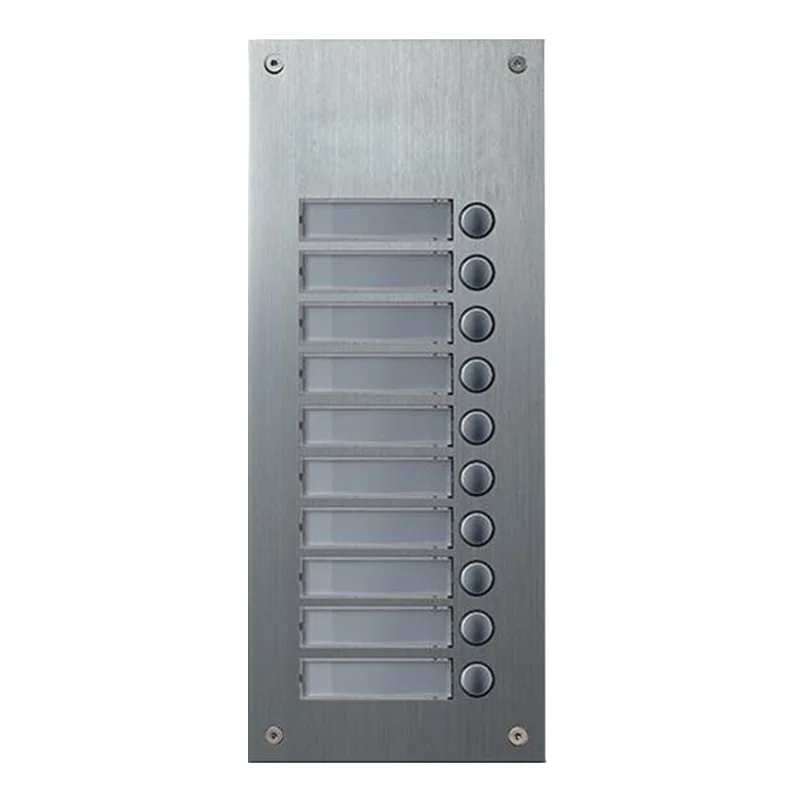

10 Buttons Audio Outdoor Aluminum Slave Panel

10 Buttons Audio Outdoor Aluminum Slave Panel (DR-10US) is a Audio Intercom product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/154/image_1920?unique=11239dc
DR-10US

The Commax DR-10US is an audio-only door station designed for multi-unit apartment buildings. It is a 10-button sub-panel used to expand an existing system to support additional apartments.
Key features
  • System type: The DR-10US is an audio extension panel, and is not a standalone intercom system.
  • Capacity: This is a 10-button unit, which can connect up to 10 additional apartments to an existing Commax multi-unit intercom system.
  • Expandability: Multiple DR-10US panels can be connected together. For example, a system can be expanded to up to 40 apartments by chaining multiple panels.
  • Installation: It is designed for flush mounting into a wall.
  • Compatibility: The DR-10US is compatible with Commax "4+n" wire audio intercom systems and integrates with devices like the Commax DR-xUM and other indoor audio stations.
  • Durability: The front panel is made from anodized aluminum with a brushed finish to be weatherproof and durable.
  • Wiring: It operates on a 4+n wiring system.
  • Mounting: Designed for flush-mounted installation, the panel can be secured with special security screws.

This combination does not exist.

  • Audio Intercom
  • 1-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

General
Model DR-10US

Technical Specifications

ModelDR-10US
General
TypeMulti-button audio entrance station (slave / extension panel)
Direct buttons10
Name plate10-button wide name plate
MaterialAluminium
CommunicationHands-free
Display deviceLED light
FunctionsHouse call and talk
Compatible handsetsn+3 wiring audio phones (DP-SS, DP-RS, DP-ML)
Wiring & Power
Power sourceDC 12 V
WiringCommon 3 wires + individual 1 wire
Distance28 m (0.5 mm) / 50 m (0.65 mm)
Physical
Operating temperature-10 to +50 °C
Dimensions (W x H x D)130 x 315 x 10 mm
Flush box size (W x H x D)130 x 315 x 10 (37) mm
Installation hole size (W x H)110 x 284 mm
