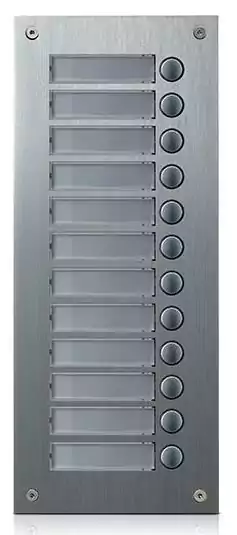

12 Buttons Audio Outdoor Aluminum Slave Panel
12 Buttons Audio Outdoor Aluminum Slave Panel (DR-12US) is a Audio Intercom product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
DR-12US
The Commax DR-12US is a 12-button extension unit or sub-panel for a multi-button audio intercom system. It is an outdoor audio panel used for apartments or multi-household buildings. The model name indicates that it is a "U" series model, which stands for a single-row button door panel.
Key specifications
According to a user manual found on a2t.ro, which covers similar DR-nUS models, the general specifications for this series are as follows:
- Power Source: 12V, 500mA.
- Wiring: 3 wires in common, plus 1 individual wire for each unit.
- Communication: Hands-free.
- Temperature: Can operate in temperatures ranging from -10°C to +50°C, and has been tested down to -40°C.
- Dimensions (for DR-nUS models): Vary by the number of buttons, but the DR-nUS models generally share a similar form factor.
General
| Model | DR-12US |
|---|
Technical Specifications
| Model | DR-12US |
| General | |
| Type | Multi-button audio entrance station (slave / extension panel) |
| Direct buttons | 12 |
| Name plate | 12-button wide name plate |
| Material | Aluminium |
| Communication | Hands-free |
| Display device | LED light |
| Functions | House call and talk |
| Compatible handsets | n+3 wiring audio phones (DP-SS, DP-RS, DP-ML) |
| Wiring & Power | |
| Power source | DC 12 V |
| Wiring | Common 3 wires + individual 1 wire |
| Distance | 28 m (0.5 mm) / 50 m (0.65 mm) |
| Physical | |
| Operating temperature | -10 to +50 °C |
| Dimensions (W x H x D) | 130 x 315 x 10 mm |
| Flush box size (W x H x D) | 130 x 315 x 10 (37) mm |
| Installation hole size (W x H) | 110 x 284 mm |
No PDF files or external links are attached to this product yet.
