Model 5300FE
Product Code: 5300FE

Belden

Belden (5300FE) is a Product product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/1912/image_1920?unique=d1308f7
5300FE

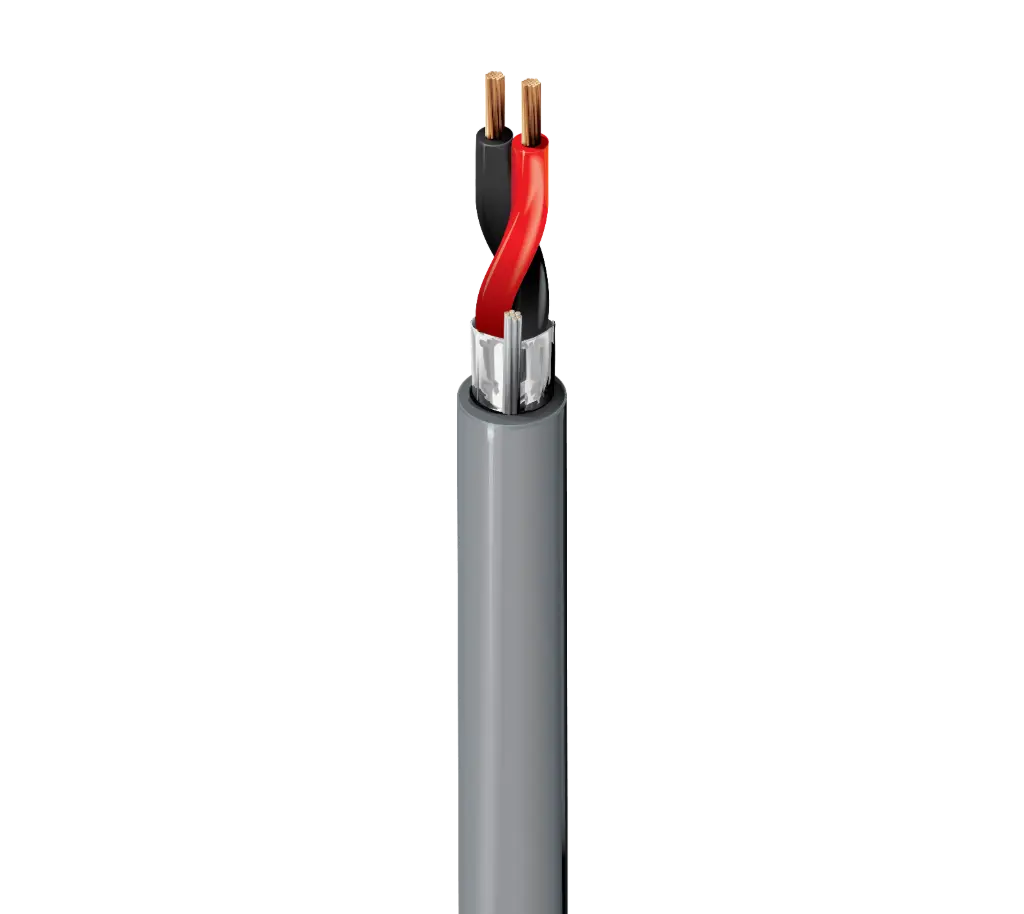

Security & Commercial Audio Cable, Riser-CMR, 2-18 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield and PVC jacket with ripcord

This combination does not exist.

  • Speaker Cables
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

General
Model 5300FE

Technical Specifications

Model5300FE
General
DescriptionSecurity & Sound, 2 conductor 18 AWG, BC, shielded, CMR
Suitable ApplicationsIntercom/PA systems, sound/audio systems
Environmental SuitabilityIndoor - riser, indoor
Construction
Conductors2 x 18 AWG, 7x26 stranded, bare copper
InsulationPolyolefin, 0.23 mm nominal thickness, 1.6 mm nominal diameter
Color CodeBlack, red
Outer ShieldBi-laminate (Alum+Poly) tape, 100% coverage
Drain Wire24 AWG (7x32) tinned copper
Outer JacketPVC, 0.43 mm nominal thickness, with ripcord
Overall Cable Diameter (nominal)4.11 mm (0.162 in)
Electrical
Nom. Conductor DCR6.5 Ohm/1000 ft
Nom. Capacitance Cond-to-Cond170 pF/m (53 pF/ft)
Nom. Capacitance Cond-to-Other313 pF/m (95.5 pF/ft)
Nom. Inductance0.476 µH/m (0.145 µH/ft)
Max. Current5 A per conductor @ 25°C
Nom. Outer Shield DCR53.31 Ohm/km (16.25 Ohm/1000 ft)
UL Voltage Rating300 V (CMR)
Mechanical
Operating Temperature-20°C to +75°C
Min. Bend Radius (stationary / installation)41 mm (1.6 in)
Max. Pull Tension26 kg (58 lbs)
Bulk Cable Weight18 lbs/1000 ft
Standards
Flammability / Reaction to FireUL 1666 Riser, FT4, IEC 60332-1-2
CPR EuroclassEca
NEC / ULArticle 800, CMR
Plenum Equivalent6300FE

Insulation

ElementMaterialNom. ThicknessNom. Insulation DiameterColor Code
Conductor(s)PO - Polyolefin0.009 in (0.23 mm)0.062 in (1.6 mm)Black, Red

Outer Shield

Shield TypeMaterialCoverageDrainwire Type
TapeBi-Laminate (Alum+Poly)100%24 AWG (7x32) TC

Outer Jacket

MaterialNom. ThicknessNom. DiameterRipcord
PVC - Polyvinyl Chloride0.017 in (0.43 mm)0.162 in (4.11 mm)Yes

Overall Cable Diameter (Nominal)

0.162 in (4.11 mm)
