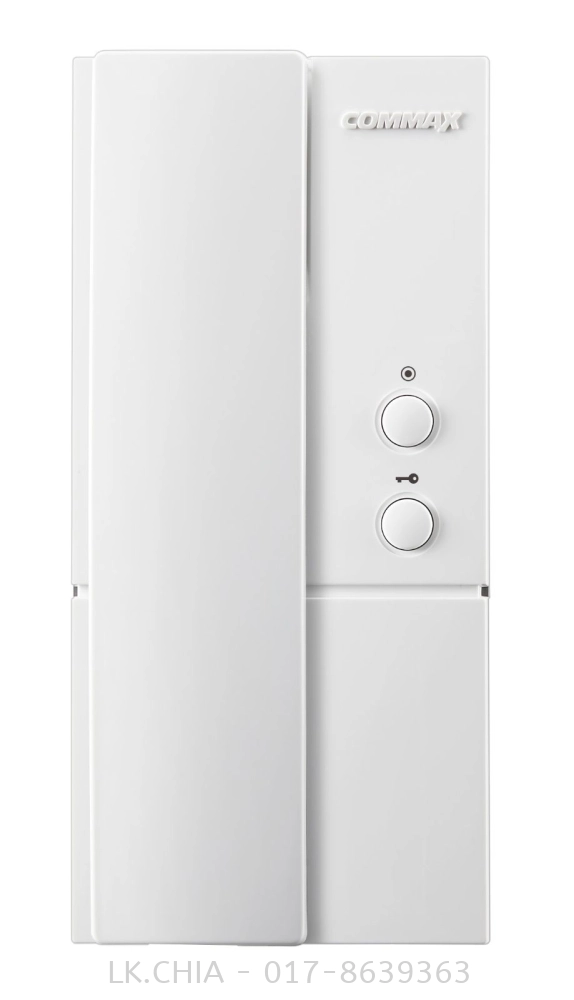

Commax Audio Handset with 2 Buttons
Commax Audio Handset with 2 Buttons (DP-ML) is a Audio Intercom product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
DP-ML
The Commax DP-ML is a 4-wire audio intercom handset, part of an audio doorphone system. It is used for two primary functions: conversing with visitors at the entrance and remotely unlocking the door.
Key features
- System integration: The DP-ML is designed to work with Commax audio panels, such as the DR-nUM and DR-nAM models.
- Wired connection: It connects to the rest of the system using a 4-wire setup.
- Two-button operation: The handset typically features two buttons, one for speaking with a guest and another for opening the lock.
- Door lock control: The handset offers the convenience of remotely controlling and unlocking an entrance door.
- Energy efficiency: The device is designed to be energy-efficient, with no current draw when not in use.
- Compact design: The DP-ML has a sleek and modern design with dimensions of 195 x 107 x 39 mm.
- Power source: It receives its DC 12V power from the connected audio panels.
General
| Model | DP-ML |
|---|
Technical Specifications
| Model | DP-ML |
| General | |
| Type | Audio door phone (handset) for multi-button audio panels |
| Functions | Talk with a visitor, door release |
| Phones per household | Up to 2 audio phones |
| System size | Up to 56 households |
| Linked panel | Multi-button panel DR-nUM |
| Power source | DC 12 V (from multi-panel) |
| Mount type | Wall-mounted |
| Wiring | n + 3 wires |
| Distance | 100 m (0.65 mm), 150 m (0.8 mm) |
| Dimensions (W x H x D) | 98 x 208 x 65 mm |
