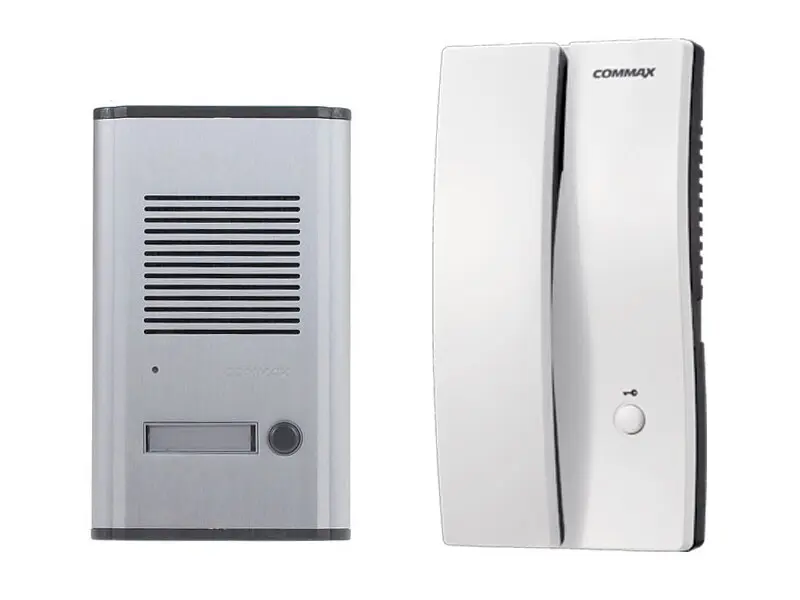

Commax Audio Intercom Kit 1 Line Aluminum Panel
Commax Audio Intercom Kit 1 Line Aluminum Panel (DP-2S/DR-201A) is a Audio Intercom product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
DP-2S/DR-201A
Kit includes one doorphone DP-2S and doorbell DR-201A.
DP-2S Doorphone:
- Audio door phone
- User friendly handset design with convenient hand grip.
- Door phone with door lock release function (electric door strike not included)
- Easy installation: 2-wires to the door station and 2-wire to electric door strike (optional)
DR-201A Doorbell:
- enhanced mechanical resistance (anti-vandal).
- duplex audio communication.
- flush-mounted.
- powered from the door phone.
- dimensions: 185x125mm.
Specifications
DP-2S Doorphone:
- Power source AC 110/220/230/240V / 50/60Hz
- Wiring Call: 2 wires
Door Release: 2 wires(1.6Ø Copper wire) - Mount type Wall-mounted type
- Distance 100m(0.65Ø), 150m(0.8Ø)
- Dimension(mm) 108(W)×210(H)×33(61)(D)
DR-201A Doorbell:
- Power source 9V
- Operation temp. -10℃~+40℃
- Dimensions 185x125mm
- Mount type Flush-mounted type
- Wiring 2 wires
General
| Model | DP-2S/DR-201A |
|---|
Technical Specifications
| Model | DP-2S/DR-201A |
| General | |
| Brand | Commax |
| Kit Contents | DP-2S handset + DR-201A door panel |
| Handset Type | Audio door phone (handset) |
| Functions | |
| Functions | Talk with a visitor, door release |
| Construction | |
| Handset Design | Handset with convenient hand grip |
| Door Panel Material | Aluminium front |
| Power | |
| Power source | AC 110/220/230/240 V, 50/60 Hz |
| Installation | |
| Handset Mount type | Wall-mounted |
| Door Panel Mounting | Surface mount with rain cover |
| Connectivity | |
| Wiring | Call: 2 wires (non-polarity) / Door release: 2 wires (1.6 mm copper wire) |
| Distance | 100 m (0.65 mm), 150 m (0.8 mm) |
| Physical | |
| Handset Dimensions (W x H x D) | 108 x 210 x 33 (61) mm |
| Audio | |
| Door Panel Audio | Built-in speaker and microphone |
