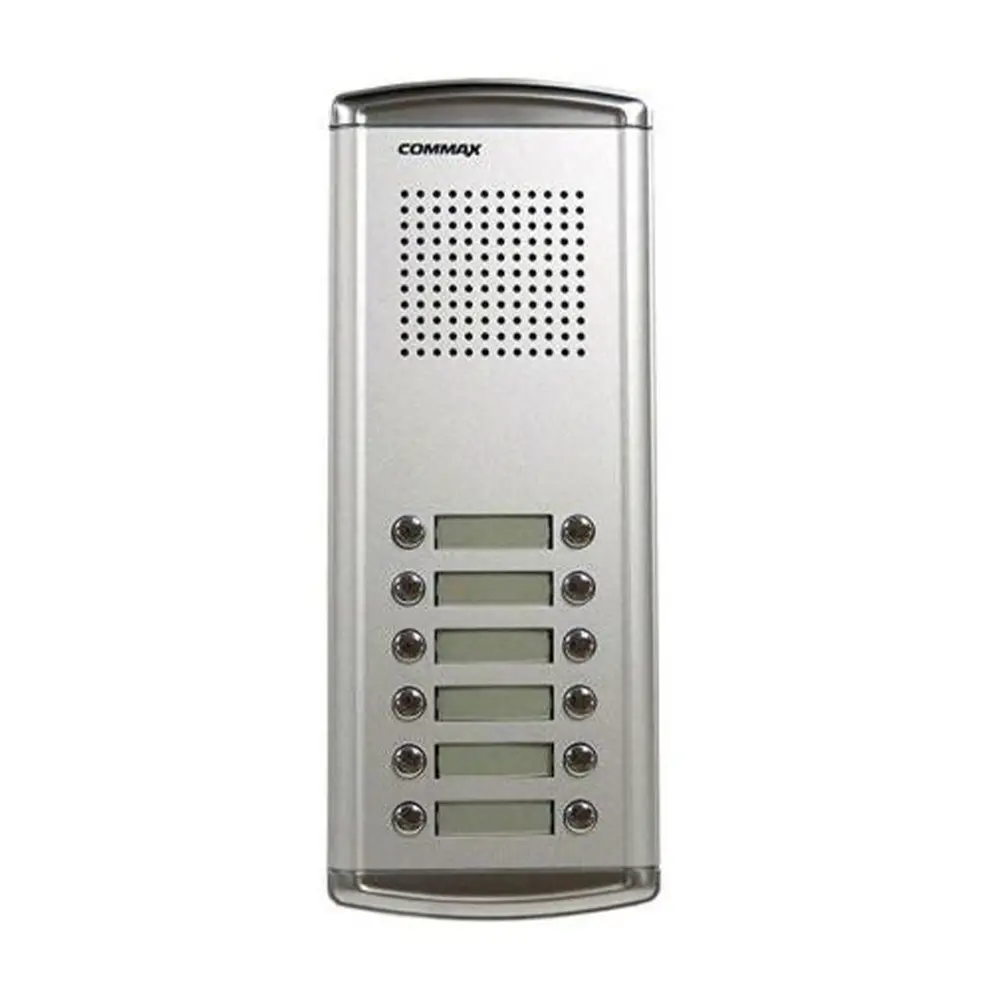

Commax Intercom 12 Buttons Audio Outdoor Aluminum Panel
Commax Intercom 12 Buttons Audio Outdoor Aluminum Panel (DR-12AM) is a Audio Intercom product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
DR-12AM
The Commax DR-12AM is an outdoor audio panel designed for multi-unit apartment or office building intercom systems. It features 12 call buttons for individual residential stations and is made with a durable aluminum panel. The panel is designed for flush mounting.
Features and specifications
- Capacity: The panel supports up to 12 separate residential stations or apartments.
- Functionality: It enables two-way audio communication and includes a name card for each unit.
- Installation: The DR-12AM is a flush-mount type, meaning it sits flush with the wall.
- Construction: The unit is built with an aluminum panel for weather resistance and durability.
- Wiring: The panel requires a common 3-wire connection, plus one individual wire for each unit.
- Power source: It operates on DC 12V power.
- Compatibility: The DR-12AM is compatible with a range of indoor handsets, including the Commax models DP-KSS, DP-SS, and DP-ML.
Replacement components
Replacement parts for the Commax DR-12AM and compatible indoor handsets are available from Commax distributors and other retailers. If the DR-12AM itself needs to be replaced, other panels in the same series, such as the DR-16AM (16-button), offer similar functionality.
General
| Model | DR-12AM |
|---|
Technical Specifications
| Model | DR-12AM |
| General | |
| Brand | Commax |
| Type | Multi-apartment audio door panel |
| Call Buttons | 12 |
| System | |
| Apartments | Up to 12 |
| Compatible Handsets | Commax audio door phones (DP series) |
| Audio | |
| Audio | Built-in speaker and microphone, two-way talk |
| Functions | |
| Door Release | Electric lock release from each apartment handset |
| Connectivity | |
| Wiring | Common audio lines + one call wire per apartment |
| Power | |
| Power Source | From intercom power supply |
| Features | |
| Name Plates | Illuminated name tags |
| Environment | |
| Installation Location | Outdoor, building entrance |
| Operating Temperature | -10 to +40 °C |
| Construction | |
| Front Panel | Aluminium |
| Installation | |
| Mounting | Flush or surface mount |
No PDF files or external links are attached to this product yet.
