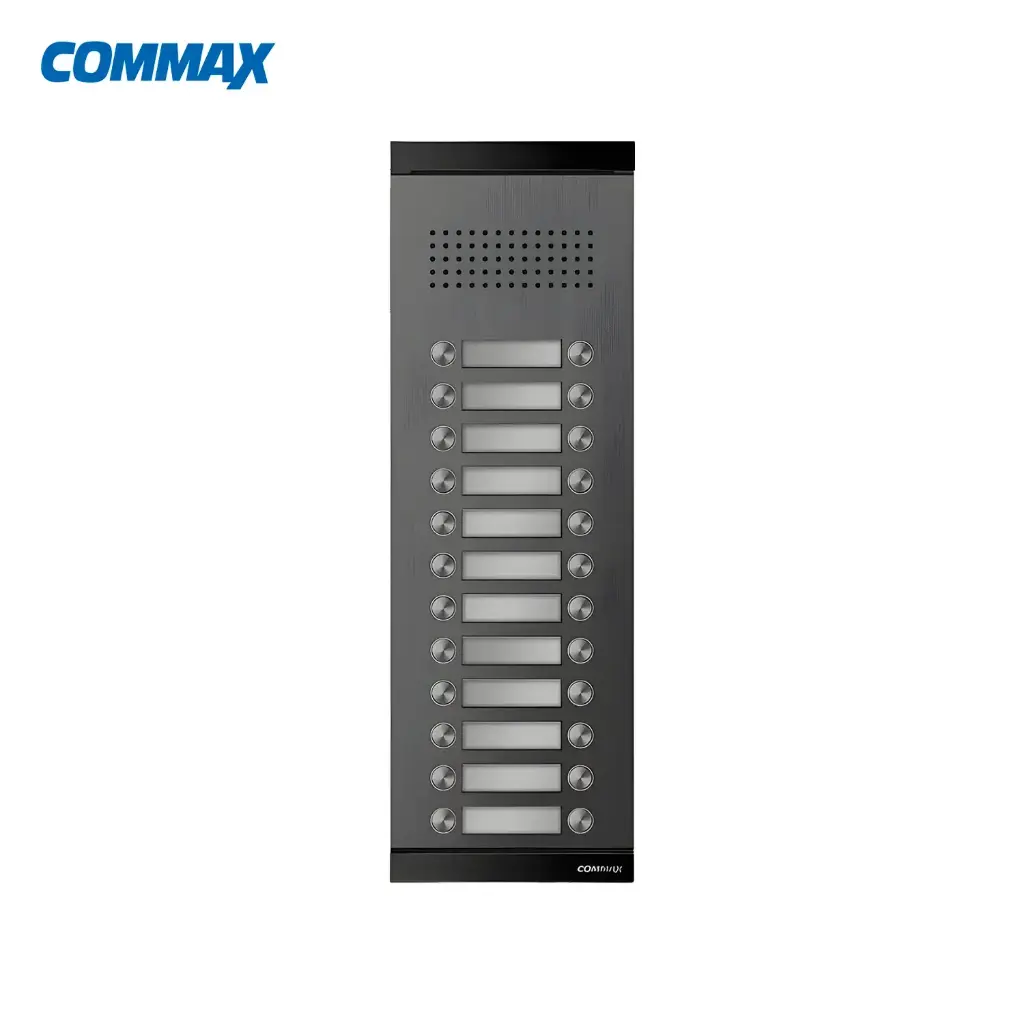

Commax Intercom 24 Buttons Audio Outdoor Aluminum Panel
Commax Intercom 24 Buttons Audio Outdoor Aluminum Panel (DR-24ML) is a Audio Intercom product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
DR-24ML
The Commax DR-24ML is a multi-button audio intercom station designed for large buildings with up to 24 separate apartments or units. It is an outdoor panel, typically installed in a lobby or at the main entrance, to allow visitors to call individual residents.
Features and design
- Capacity: The panel features a 24-button wide nameplate, with each button dedicated to a single apartment or resident.
- Construction: The unit has a durable, weather-resistant metal (aluminum) design, ensuring longevity for outdoor use and a modern appearance.
- User interface: It includes LED lights for enhanced visibility, which provide visual cues for the "house call" and "talk" functions, making it easy to operate in low-light environments.
- Connectivity: The DR-24ML can be connected to an additional extension panel, allowing the system to be expanded to accommodate more units.
- Installation: It is a flush-mount intercom panel and is powered by 12V DC.
Compatibility
The DR-24ML is designed to be integrated with other Commax products, including:
- Handsets:
- DP-SS
- DP-ML
- DP-RS
- Extension Panels: The "DR n;M" series of extension panels, which allow for a higher number of households, can be used in conjunction with the DR-24ML.
Wiring and function
According to the manual available from Tohama, a vendor in Egypt, the wiring for the DR-24ML is a 3-common wire system with individual wires for each unit and two additional wires for the door lock.
The main functions of the system include:
- House call: A visitor can press a button to initiate a call to a specific apartment.
- Talk function: When the resident answers the call using a compatible indoor handset, a conversation can take place.
- Door release: Residents can unlock the door remotely from their indoor unit after communicating with the visitor.
General
| Model | DR-24ML |
|---|
Technical Specifications
| Model | DR-24ML |
| General | |
| Type | Multi-button audio entrance station |
| Direct buttons | 24 |
| Name plate | 24-button wide name plate |
| Material | Aluminium (metal design) |
| Display device | LED light |
| Functions | House call and talk |
| Expansion | Connects with extension panel (DR-26XM/28XM/30XM/32XM) |
| Compatible handsets | DP-SS, DP-RS, DP-ML |
| Wiring & Power | |
| Power source | DC 12 V |
| Wiring | Common 3 wires + individual 1 wire |
| Distance | 28 m (0.5 mm) / 50 m (0.65 mm) |
| Physical | |
| Operating temperature | -10 to +50 °C |
| Dimensions (W x H x D) | 130 x 315 x 10 mm |
| Installation hole size (W x H) | 112 x 211 mm |
