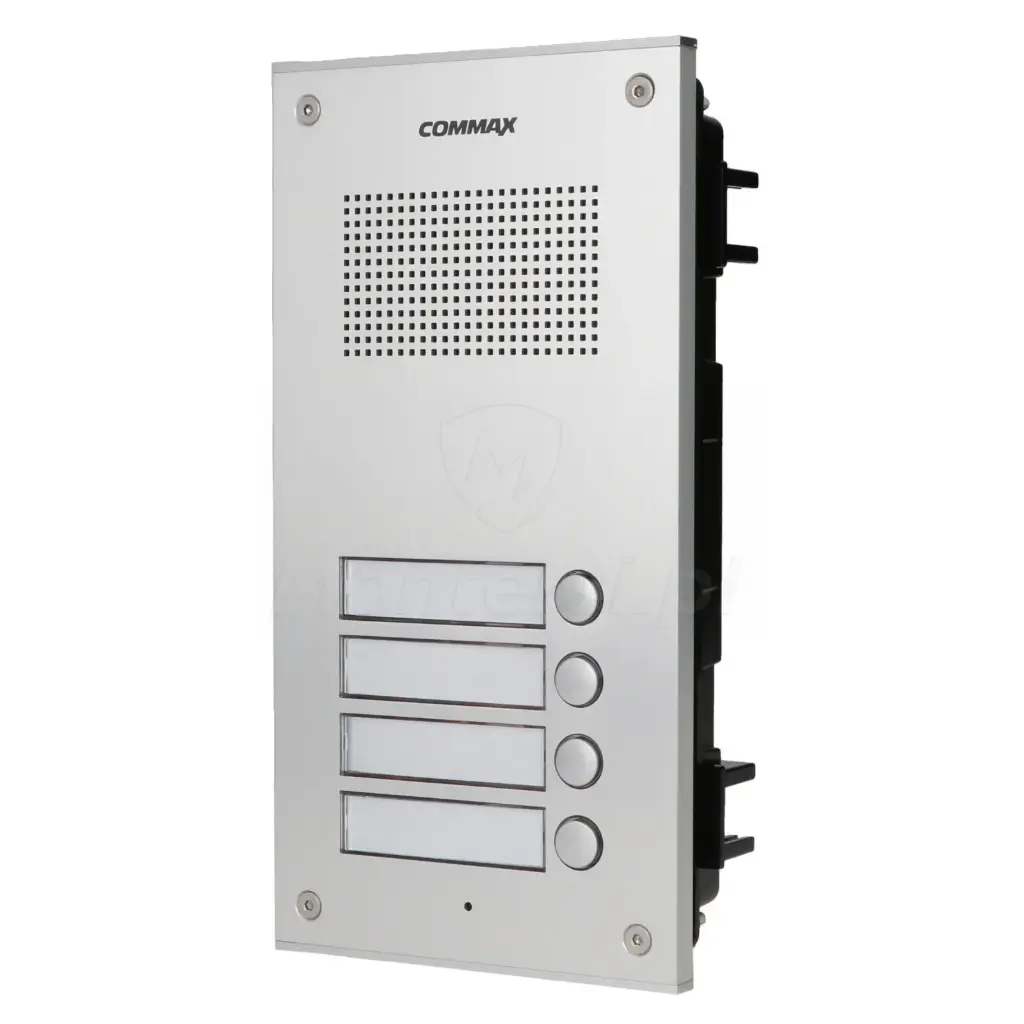

Commax Intercom 4 Buttons Intercom
Commax Intercom 4 Buttons Intercom (DR-4UM) is a Audio Intercom product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
DR-4UM
Features & Compatibility
Commax DR-4UM – calling audio panel for 4 subscribers
. Communication line: 3 common wires + 1 to each DP-SS OR DP-ML
. Metal buttons, the backlight of the label with the name of the subscriber
. Flush mount
. not included power
General
| Model | DR-4UM |
|---|
Technical Specifications
| Model | DR-4UM |
| General | |
| Type | Multi-button audio entrance station |
| Direct buttons | 4 |
| Name plate | 4-button wide name plate |
| Material | Aluminium |
| Communication | Hands-free |
| Display device | LED light |
| Functions | House call and talk |
| Compatible handsets | n+3 wiring audio phones (DP-SS, DP-RS, DP-ML) |
| Wiring & Power | |
| Power source | DC 12 V |
| Wiring | Common 3 wires + individual 1 wire |
| Distance | 28 m (0.5 mm) / 50 m (0.65 mm) |
| Physical | |
| Operating temperature | -10 to +50 °C |
| Dimensions (W x H x D) | 130 x 315 x 10 mm |
| Flush box size (W x H x D) | 130 x 315 x 10 (37) mm |
| Installation hole size (W x H) | 110 x 284 mm |
