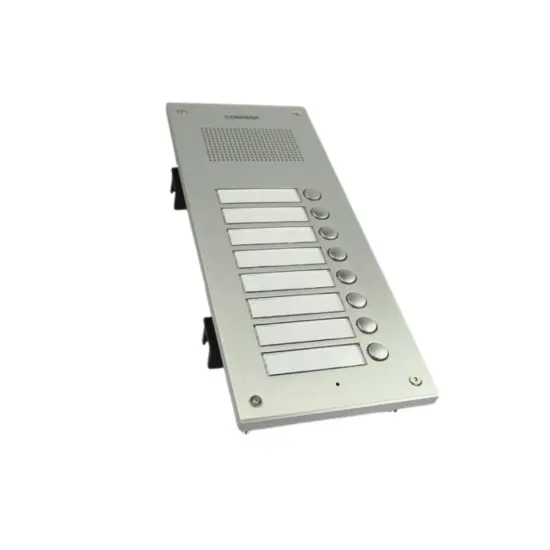

Commax Intercom 8 Buttons Intercom
Commax Intercom 8 Buttons Intercom (DR-8UM) is a Audio Intercom product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
DR-8UM
The designation DR-8UM most commonly refers to a specific model of an audio intercom lobby panel manufactured by Commax.
Overview
- The DR-8UM is an outdoor, multi-household audio intercom panel with a durable aluminum construction.
- It is designed for use in small to medium-sized apartment buildings.
- The number "8" in the model name indicates that the panel features eight buttons, with each button corresponding to one apartment unit.
Features
- Audio communication: It provides clear, hands-free voice transmission for visitors to communicate with residents inside.
- Backlit name cards: It includes backlit name card holders for easy identification of the residents.
- Power: It requires a DC 12V power supply, which is typically sold separately.
- Installation: It is designed for flush-mount installation into a wall.
- Compatibility: The panel works with specific Commax indoor intercom units, such as the DP-SS.
General
| Model | DR-8UM |
|---|
Technical Specifications
| Model | DR-8UM |
| General | |
| Type | Multi-button audio entrance station |
| Direct buttons | 8 |
| Name plate | 8-button wide name plate |
| Material | Aluminium |
| Communication | Hands-free |
| Display device | LED light |
| Functions | House call and talk |
| Compatible handsets | n+3 wiring audio phones (DP-SS, DP-RS, DP-ML) |
| Wiring & Power | |
| Power source | DC 12 V |
| Wiring | Common 3 wires + individual 1 wire |
| Distance | 28 m (0.5 mm) / 50 m (0.65 mm) |
| Physical | |
| Operating temperature | -10 to +50 °C |
| Dimensions (W x H x D) | 130 x 315 x 10 mm |
| Flush box size (W x H x D) | 130 x 315 x 10 (37) mm |
| Installation hole size (W x H) | 110 x 284 mm |
