Product Code:
DH-SD2C400NA-B-PV-PRO

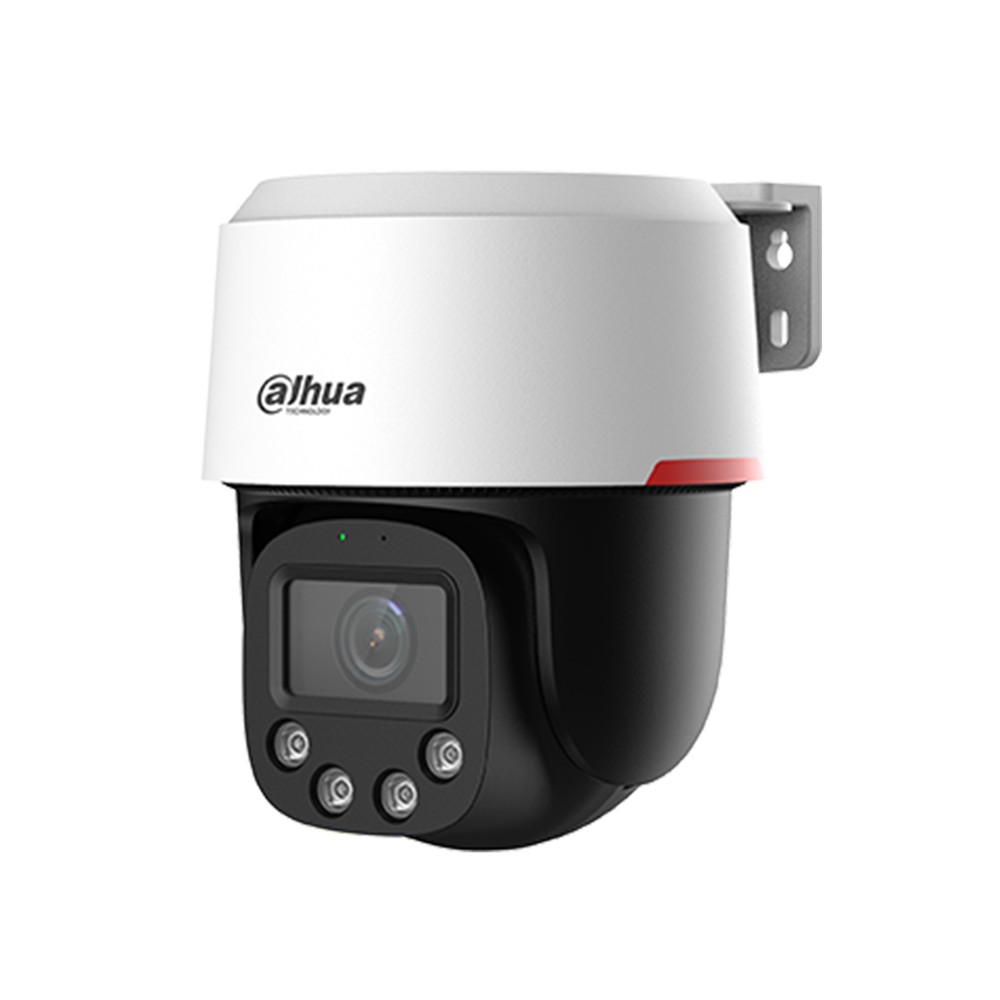

Dahua DH-SD2C400NA-B-PV-PRO 4MP WizColor WizSense Network PT Camera
Dahua DH-SD2C400NA-B-PV-PRO 4MP WizColor WizSense Network PT Camera is a PTZ Camera product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
Dahua DH-SD2C400NA-B-PV-PRO: 4MP WizColor WizSense Network PT Camera. High-Quality Imaging with 4MP Resolution.
- High-Quality Imaging with 4MP Resolution
- Expansive Night View With up to 30 m Warm Distance for 24/7 Monitoring
- 1/1.8" CMOS Sensor Ensures Premium Images
- Exceptional Image Quality in Low-Light Environments by WizColor Technology
- Real-Time Communication via Built-In Two-Way Talk
General
| Model | DH-SD2C400NA-B-PV-PRO |
|---|
Key Features
- High-Quality Imaging with 4MP Resolution
- Expansive Night View With up to 30 m Warm Distance for 24/7 Monitoring
- 1/1.8" CMOS Sensor Ensures Premium Images
- Exceptional Image Quality in Low-Light Environments by WizColor Technology
- Real-Time Communication via Built-In Two-Way Talk
- Deep Learning-Based Human and Vehicle Classification
- Supports Auto Tracking Lite
Best Fit Applications
Parking lots, building perimeters, yards and large outdoor areas.
Technical Specifications
| Brand | Dahua |
|---|---|
| Model | DH-SD2C400NA-B-PV-PRO |
| Type | 4MP WizColor WizSense Network PT Camera |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2560 (H) × 1440 (V) |
| Focal Length | 4 mm |
| Max. Aperture | F1.0 |
| Field of View | 4 mm: H: 97°; V: 52°; D: 114° |
| Illumination Distance | 4 mm: 30 m (164.04 ft) (Warm light) |
| Network Port | RJ-45 (10/100 Base-T) |
| Video Compression | Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG |
| Storage | Micro SD card (Up to 256 GB); FTP |
| Pan/Tilt Range | Pan: 0° to 345°; Tilt: 0° to +90° |
| Protection | TVS 2000 V lightning proof; surge protection; voltage transient protection;Waterproof and Dustproof |
| Power Supply | 12 VDC, 1A ± 10% PoE (802.3af) |
| Power Consumption | PoE: Basic: 3.6 W Max: 9.5 W (illuminator + PTZ) |
| Operating Temperature | –30 °C to +55 °C (–22 °F to +131 °F) |
| Product Dimensions | 153.5 mm × Φ129.3 mm (6.04" × Φ5.09") |
| Net Weight | 0.66 kg (1.46 lb) |
| Lifecycle | Discontinued by Dahua (last stock) |
