Product Code:
DH-XVR5104HS-I3/T

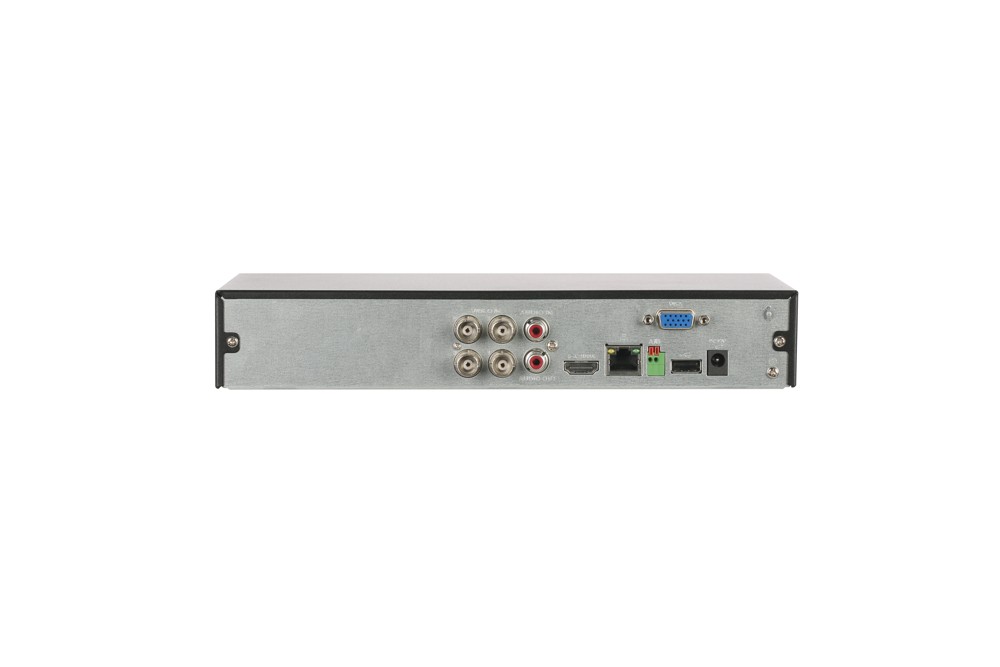

Dahua DH-XVR5104HS-I3/T 4CH Penta-brid 5MP Value/1080P Compact 1U 1HDD WizSense Digital Video Recorder
Dahua DH-XVR5104HS-I3/T 4CH Penta-brid 5MP Value/1080P Compact 1U 1HDD WizSense Digital Video Recorder is a Digital Video Recorder product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
Dahua DH-XVR5104HS-I3/T: 4CH Penta-brid 5MP Value/1080P Compact 1U 1HDD WizSense Digital Video Recorder. 4-ch Analog Video Input, Max. 5M-N@25fps/1080p@25fps Encoding Capability.
- 4-ch Analog Video Input, Max. 5M-N@25fps/1080p@25fps Encoding Capability
- Max. 6-ch IP Video Input (Up to 6MP)
- 4-ch Two-way Talk
- AI Functions: 2-ch AcuPick, 2-ch FR, 4-ch Perimeter Protection, 4-ch SMD, 4-ch AI Coding
- 1 Bay. Up to 16TB for Each HDD Storage Capacity
General
| Model | DH-XVR5104HS-I3/T |
|---|
Key Features
- 4-ch Analog Video Input, Max. 5M-N@25fps/1080p@25fps Encoding Capability
- Max. 6-ch IP Video Input (Up to 6MP)
- 4-ch Two-way Talk
- AI Functions: 2-ch AcuPick, 2-ch FR, 4-ch Perimeter Protection, 4-ch SMD, 4-ch AI Coding
- 1 Bay. Up to 16TB for Each HDD Storage Capacity
Best Fit Applications
CCTV systems for homes, shops, offices and projects.
Technical Specifications
| Brand | Dahua |
|---|---|
| Model | DH-XVR5104HS-I3/T |
| Type | 4CH Penta-brid 5MP Value/1080P Compact 1U 1HDD WizSense Digital Video Recorder |
| Analog Camera Input | 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | <5 W (without HDD) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Product Dimensions | 260.0 mm × 237.8 mm × 47.6 mm (10.24" × 9.36" × 1.87") (W × D × H) |
| Net Weight | 0.84 kg (1.85 lb) |
