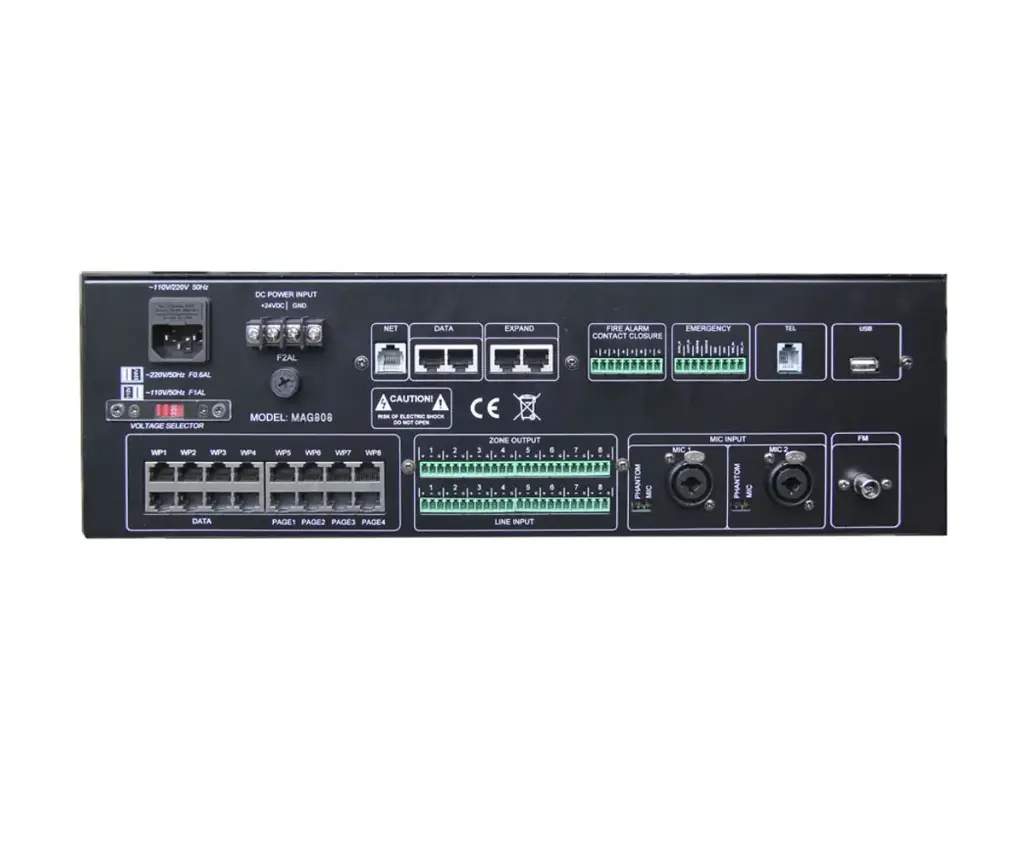

DSPPA MAG808 - 8x8 Digital Audio Matrix

DSPPA MAG808 is a high-performance 8x8 digital audio matrix with zone control and paging functions, designed for professional AV installations in multi-zone environments. It integrates audio matrix, timing control, zone management, MP3 playback, and FM radio in one unit. The built-in 7" capacitive touch screen and embedded operating system ensure intuitive and efficient operation.

The matrix features 8 balanced audio inputs and 8 balanced outputs, two microphone inputs with phantom power, telephone input, emergency input, 8 zone-trigger inputs, and one emergency output. It supports remote control via wall panels, paging microphones, PC, and Android devices. With 8 GB of internal storage and support for up to 32 GB, it allows flexible audio management and system configuration.

MAG808 is a complete solution for venues such as shopping malls, hotels, airports, sports centers, and entertainment facilities requiring reliable multi-zone audio control.

Functionality:

• 8 balanced audio inputs and 8 balanced outputs
• 2 microphone inputs with phantom power (+48V)
• built-in MP3 player (USB) and FM tuner
• telephone input with access management
• emergency input and one-touch alarm function
• 8 zone-trigger inputs, 1 emergency output
• remote control via MAG808C/MAG808S panels, MAG808R microphones, PC, Android
• 7" capacitive touch screen with color display
• built-in DSP and 10M/100M/1000M Ethernet interface
• built-in zone monitoring
• internal 8 GB storage, supports up to 32 GB
• power supply: AC 110/220V and DC 24V

Features:

• MIC frequency response: 80 Hz - 10 kHz (±3 dB)
• line frequency response: 20 Hz - 20 kHz (±3 dB)
• input sensitivity: MIC 10 mV, AUX 250 mV
• output voltage: 1 V
• FM band: 86-108 MHz
• output distortion: <1% @ 1 kHz
• max output noise: <3 mV
• dimensions: 484 x 375 x 132 mm
• packing size: 540 x 510 x 195 mm
• net weight: 10 kg
• gross weight: 13 kg

DSPPA MAG808 is a reliable audio matrix for demanding AV installations, offering full zone control, emergency integration, and flexible remote operation.
