Hikvision IP Video Intercom Kit 4 Port POE Switch
Hikvision IP Video Intercom Kit 4 Port POE Switch (DS-KD-DIS) is a Video Intercom product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
- DS-KD-DIS
- Display module of modular door station

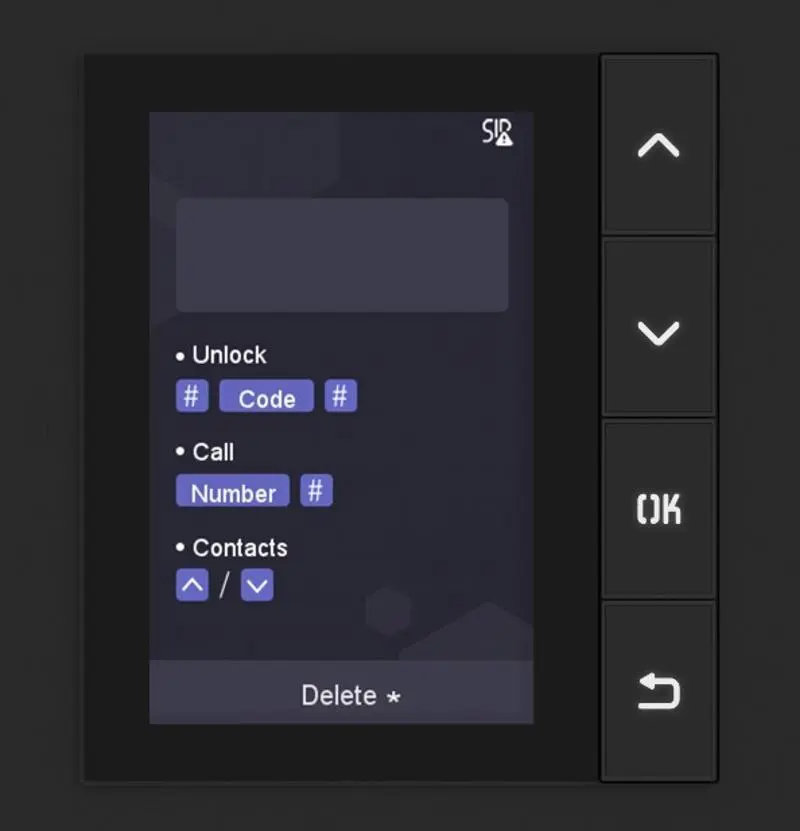

- 3.5-inch LCD screen with rich information display: Dial number, pin code unlock, contact list
- Store up to 2000 contacts
- IP65 protection level
- Backlight compensation behind the module
- Support multiple languages
General
| Model | DS-KD-DIS |
|---|
- System parameters
- ProcessorEmbedded MCU Processor
- Operation systemEmbedded Linux Operation System
- Video parameters
- Supplement lightIR Supplement
- Video compression standardH.264
- Audio parameters
- Audio inputBuilt-in Omnidirectional Microphone
- Audio outputBuilt-in Loudspeaker(More than 85 dB within 20 cm )
- Audio compression bitrate64 Kbps
- Audio qualityNoise Suppression and Echo Cancellation
- Network parameters
- Ethernet10/100 Mbps Self-Adaptive Ethernet
- Network protocolTCP/IP, RTSP
- Device interfaces
- Alarm inputTampering Alarm
- I/O input4
- I/O output2
- General
- Power supply12 VDC/PoE ( IEEE 802.3af)
- Power consumption4 W
- Working temperature-40° C to +55° C (-40° F to 131° F)
- Working humidity10% to 95%
- Protective levelIP65
- Dimensions(L × W × H)98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")
- LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak
