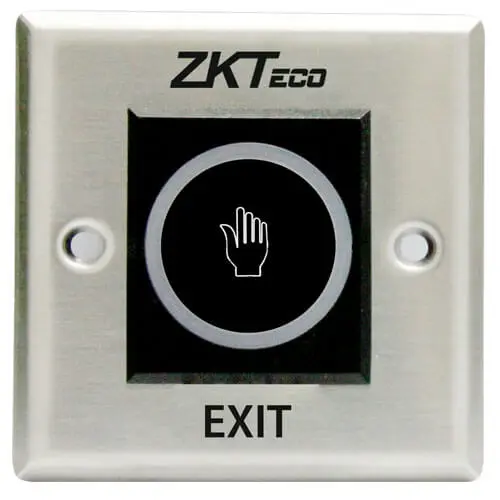

ZkTeco Exit Button
ZkTeco Exit Button is a Access Control Device product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
LMB-280-U
The ZKTeco LMB-280U is a U-bracket accessory used for installing 280kg (600lb) electromagnetic locks on frameless glass doors. It is made from high-strength aluminum alloy and is also suitable for fireproof doors. The bracket ensures secure and proper mounting for access control systems in commercial and residential settings.
Specifications
According to specs from Dataworld Kenya and BDStall, the ZKTeco LMB-280U has the following features:
- Door Compatibility: Frameless glass doors with a thickness of 8–15mm.
- Door Opening Angle: Designed for 90-degree door openings.
- Compatible Locks: Works with ZKTeco electromagnetic lock models, including the LM-2802 and LM-2805.
- Holding Capacity: Supports electromagnetic locks with a holding force of 280kg (600lbs).
- Construction: Made from high-quality, durable aluminum alloy.
- Finish: Features a silver, sandblasted finish.
- Fireproof: Yes.
- Dimensions: 180 x 43 x 28mm.
- Weight: Approximately 0.42kg.
Installation
The LMB-280U is designed for straightforward installation on glass doors that do not have a frame. The U-shaped bracket is used to mount the electromagnetic lock's iron plate to the glass door itself, while the main lock body is installed on the door frame. This allows for a secure fit without the need for drilling or major modifications to the glass.
