كود المنتج:
CDV-70NM

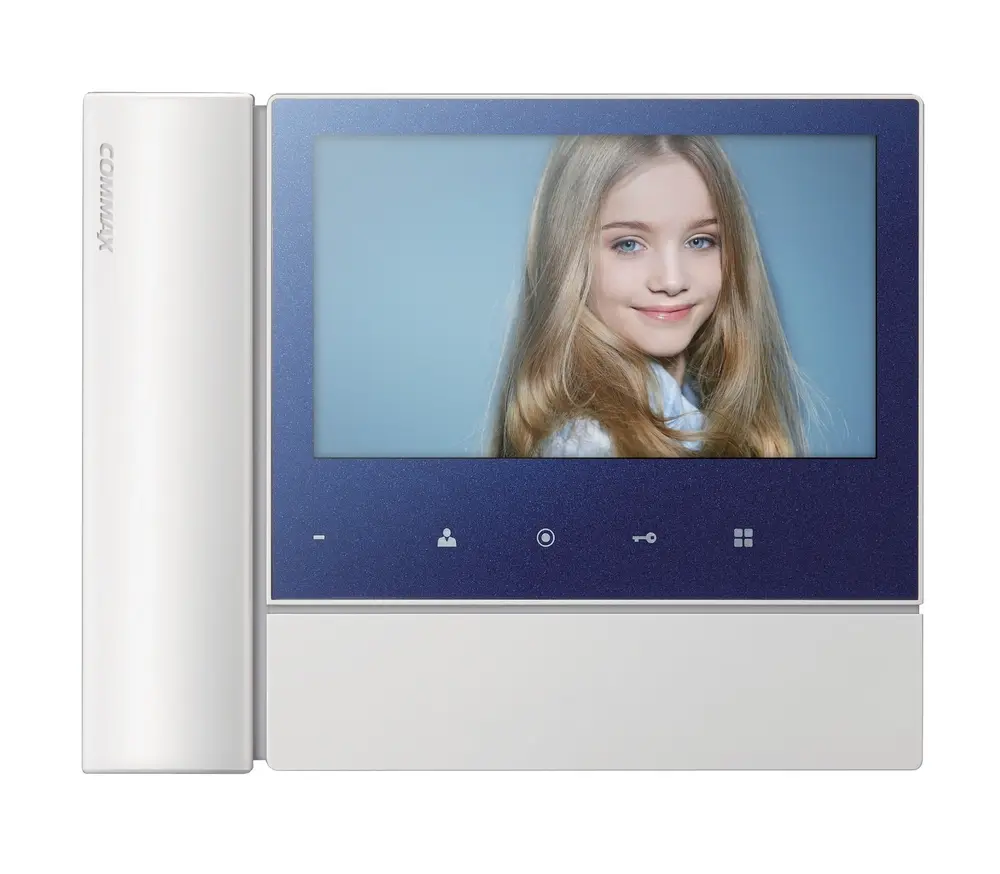

Commax Color Video Doorphone Monitor With SD Card 7 inch
Commax Color Video Doorphone Monitor With SD Card 7 inch (CDV-70NM) من منتجات انتركم مرئي. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
CDV-70NM
The COMMAX CDV-70NM is a 7-inch color video door phone monitor designed for home security and communication. As a handset-type model, it provides clear audio and video communication with visitors and allows for remote door unlocking. The system is analog, using a 4-wire installation.
Key features
- 7-inch Fine View display: The monitor is equipped with a 7-inch TFT LCD screen featuring "FINE VIEW" technology for a clear and vibrant image.
- Handset design: Unlike hands-free models, the CDV-70NM has a handset for audio privacy during a call.
- Intercommunication: The system can be expanded to support up to two monitors and two interphones per household, allowing for internal communication between different units.
- Door lock release: You can remotely control and release an electric door lock directly from the monitor.
- SD memory storage: The monitor supports SD memory cards for storing photos and videos of visitors, though the card is not included.
- Wall-mounted installation: The unit is designed to be wall-mounted and has a slim, lightweight design.
- Multiple device support: It supports one door camera and two interphones.
Specifications
the COMMAX CDV-70NM are:
- Power source: AC 100-240V, 50/60Hz
- Mount type: Wall-mounted
- Display: 7-inch TFT LCD
- Wiring: Door camera (4 wires), Interphone (4 wires)
- Dimensions: 230(W) x 180(H) x 28(D) mm
- Power consumption: Max. 16W (3W standby)
عام
| الموديل | CDV-70NM |
|---|
المواصفات الفنية
| الموديل | CDV-70NM |
| عام | |
| الماركة | Commax |
| النوع | شاشة |
| المقاس | 7 بوصة |
| المميزات | بطاقة RFID |
