CommScope 700206725 GigaSPEED XL MGS400 Cat6 U/UTP Information Outlet, White
CommScope 700206725 GigaSPEED XL MGS400 Cat6 U/UTP Information Outlet, White من منتجات مكون شبكات سلبية. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A CommScope SYSTIMAX GigaSPEED XL MGS400 Category 6 U/UTP modular jack (information outlet), white, for M-Series faceplates, surface boxes and modular panels.
- Category 6 U/UTP RJ45
- GigaSPEED XL performance
- T568A / T568B wiring
- 22-24 AWG, 110 punchdown
- Fits M-Series faceplates and panels
عام
| الموديل | 700206725 |
|---|
Key Features
- Category 6 U/UTP RJ45
- GigaSPEED XL performance
- T568A / T568B wiring
- 22-24 AWG, 110 punchdown
- Fits M-Series faceplates and panels
Best Fit Applications
Workstation outlets for Cat6 structured cabling in offices, hotels, hospitals and projects.
Technical Specifications
| Part Number | 700206725 |
|---|---|
| Model | MGS400 (GigaSPEED XL) |
| Category | Cat6, U/UTP (unshielded) |
| Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 Class E |
| Wiring | T568A and T568B |
| Conductor Size | 22-24 AWG |
| Termination | 110 punchdown IDC |
| Mounting | M-Series faceplates, surface mount boxes, modular panels; 90° or 45° |
| Dimensions (H x W x D) | 19.4 x 21.08 x 30.2 mm |
| Color | White |

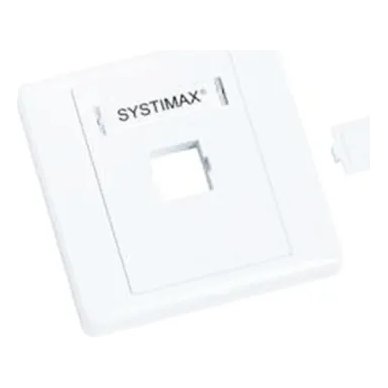

![[760200428] CommScope 760200428 M10CF Faceplate, 1-Port, Flush Mount, White](/web/image/product.template/2531/image_512)
