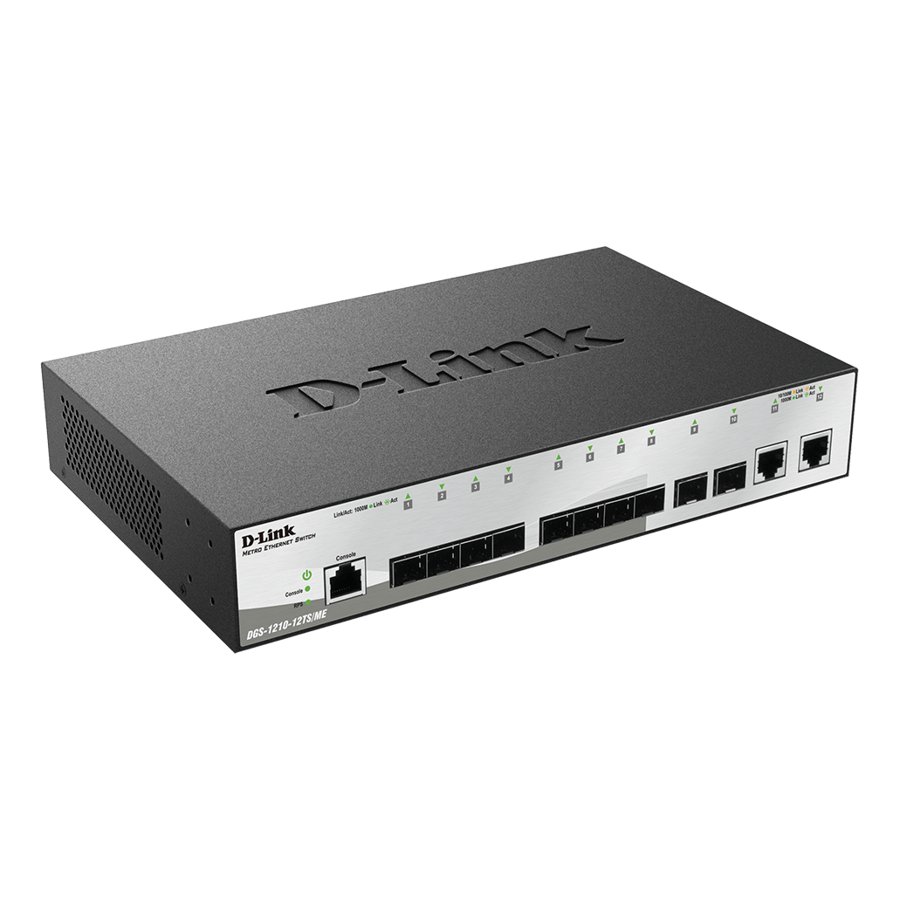

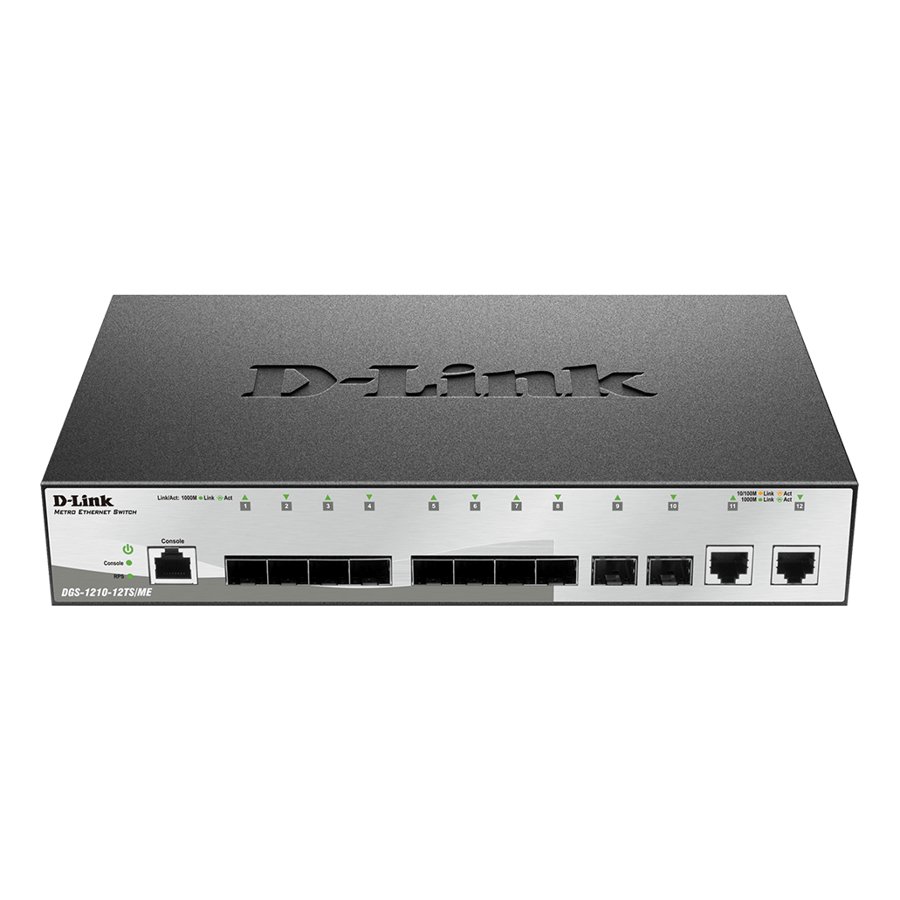

D-Link DGS-1210-12TS/ME 12-Port Gigabit Fiber Metro Ethernet Switch
D-Link DGS-1210-12TS/ME 12-Port Gigabit Fiber Metro Ethernet Switch من منتجات سويتش شبكات. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A D-Link network switch for offices, CCTV / PoE camera projects and business networks.
- 10 SFP Ports + 2 10/100/1000BASE-T Ports L2 Metro Ethernet Management Switch
عام
| الموديل | DGS-1210-12TS/ME |
|---|
Key Features
- 10 SFP Ports + 2 10/100/1000BASE-T Ports L2 Metro Ethernet Management Switch
Best Fit Applications
Offices, CCTV projects, shops, hotels and business networks.
Technical Specifications
| Model | DGS-1210-12TS/ME |
|---|---|
| Description | 10 SFP Ports + 2 10/100/1000BASE-T Ports L2 Metro Ethernet Management Switch |
| Interfaces | 10 x SFP ports, 2 x 10/100/1000BASE-T ports |
| Console Port | Supported |
| Switching Capacity | 24 Gbps |
| Maximum Forwarding Rate | 17.86 Mpps |
| Store & Forwarding Forwading | Yes |
| Dimensions | 280 x 180 x 44 mm(11.02 x 7.08 x 1.73 in) |
| Weight | 1.17 kg |
| Temperature | Operating: -5 to 50° C (23 to 122° F) Storage: -20 - 70 ˚C |
| Humidity | Operating: 0% - 95% RH Storage: 0% - 95% RH |
| Operating Altitude | 1500 m |
| Max Power Consumption | 13.6 W/100 V 13.85 W/240 V |
| Standby Power Consumption | 7.28 W/100V 7.49 W/240V |
| Maximum Heat Dissipation | 47.25 BTU/hr |
| MTBF | 405,083 hours |
| Power Input | 100 to 240 V AC |
| CPU Speed | 400MHz |
| DRAM Size | 256MB |
| Flash Memory Size | 32 MB |
| Packet Buffer Size | 1.5Mbits |
| FAN | Fanless |
| Comply with RoHS 6 | Yes |
| Energy Efficiency Ethernet (EEE) | Yes |
| Power Saving | By Link Status By LED Shut-Off By Port Shut-Off By System Hibernation |
| MAC Address Table Size | 16K |
| Control | 802.3x Flow |

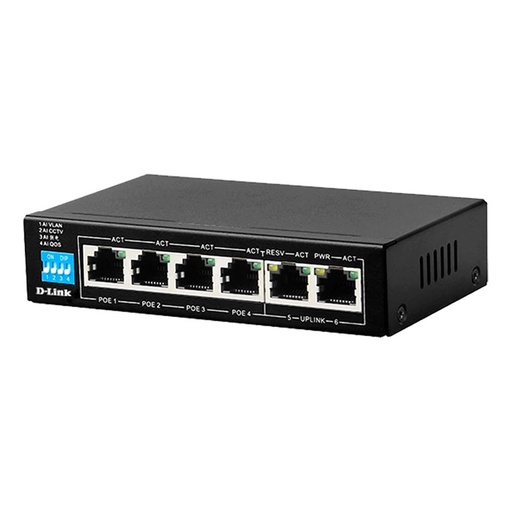

![[DES-F1006P-E] D-Link DES-F1006P-E 6-port 10/100Base-T Unmanaged Long Range 250m PoE+ Surveillance Switch with 4 PoE ports](/web/image/product.template/2887/image_512)

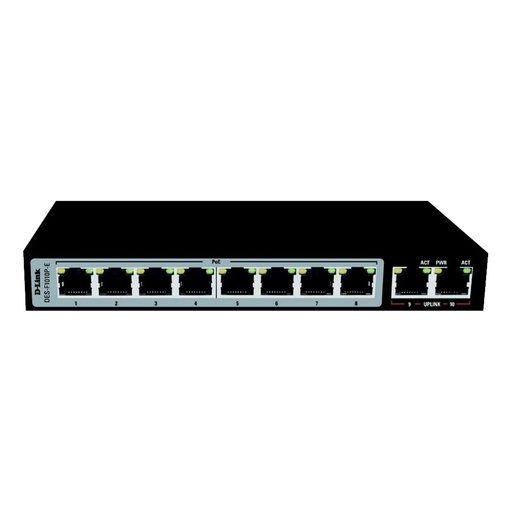

![[DES-F1010P-E] D-Link DES-F1010P-E 8 + 2 1000Mbps 250m PoE Switch](/web/image/product.template/2888/image_512)

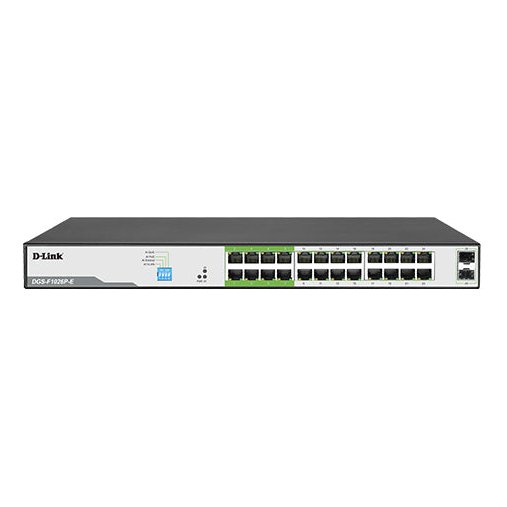

![[DES-F1016P-E] D-Link DES-F1016P-E 16-port 10/100Base-T Unmanaged Long Range 250m PoE+ Surveillance Switch with 8 PoE ports](/web/image/product.template/2889/image_512)

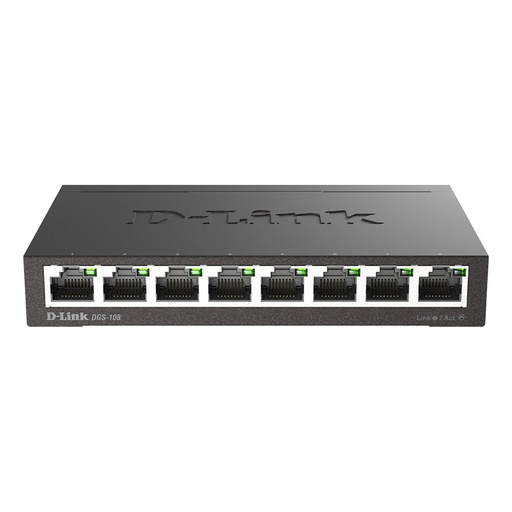

![[DGS-108] D-Link DGS-108 8-Port Gigabit Unmanaged Desktop Switch](/web/image/product.template/2881/image_512)
![[DGS-1210-28] D-Link DGS-1210-28 28-Port Gigabit Smart Managed Switch](/web/image/product.template/2883/image_512)
![[DGS-1210-28MP] D-Link DGS-1210-28MP 28-Port Gigabit Smart Managed PoE Switch](/web/image/product.template/2901/image_512)

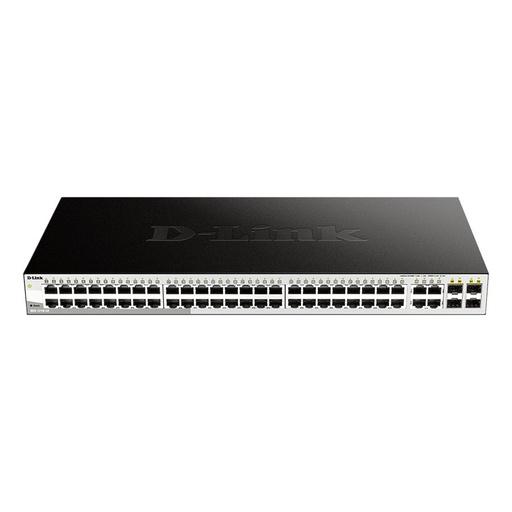

![[DGS-1210-52] D-Link DGS-1210-52 52-Port Gigabit Smart Managed Switch](/web/image/product.template/2884/image_512)

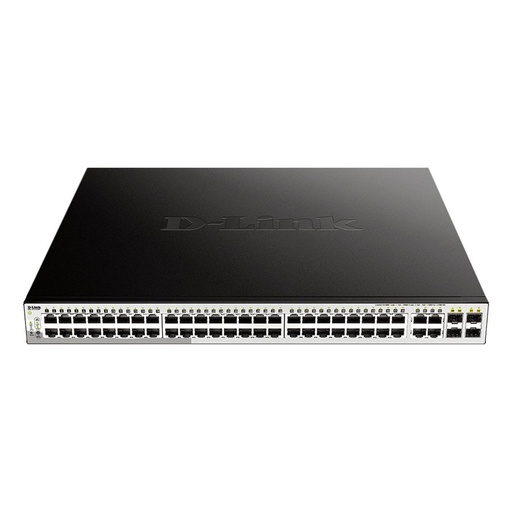

![[DGS-1210-52MP] D-Link DGS-1210-52MP 52-Port Gigabit Smart Managed PoE Switch](/web/image/product.template/2902/image_512)
