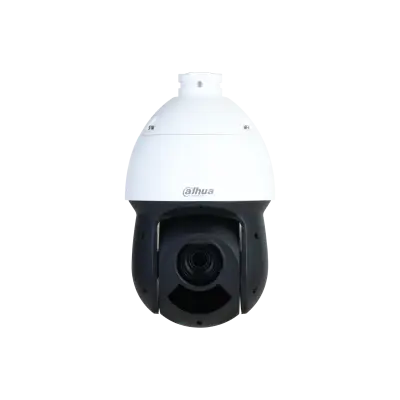

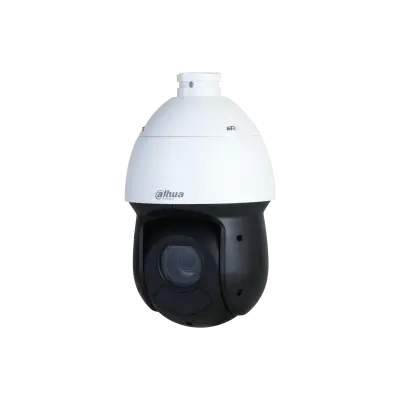

Dahua 2MP 25x Starlight IR Network PTZ Camera

Camera

Image Sensor

1/2.8" CMOS

Pixel

2 MP

Max. Resolution

1920 (H) × 1080 (V)

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.6

B/W: 0.0005 lux@F1.6

0 lux (IR light on)

Illumination Distance

100 m (328.08 ft) (IR)

Illuminator On/Off Control

Zoom Prio; Manual; Smart IR

Illuminator Number

3 (IR)

Lens

Focal Length

4.8 mm–120 mm

Max. Aperture

F1.6–F3.5

Field of View

H: 58.5°–2.8°; V: 33.2°–1.5°; D: 67.5°–3.2

Optical Zoom

25x

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.1 m–1.5 m (0.33 ft–4.92 ft)

Iris Control

Auto

DORI Distance

Detect

Observe

Recognize

Identify

1,613 m (5,291.99 ft)

646 m (2,119.42 ft)

323 m (1,059.71 ft)

161 m (528.22 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless

Tilt: –15° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°/s–80°/s

Tilt: 0.1°/s–80°/s

Preset Speed

Pan: 80°/s; Tilt: 80°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Preset;Pattern;Tour;Scan

PTZ Protocol

DH-SD

Pelco-P/D (Auto recognition)

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification

Face Detection

Supports face detection, capturing pictures, and face enhancement

SMD

SMD 3.0

Auto Patrol

It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets

Video

Video Compression

Smart H.265+;H.265;Smart H.264+;H.264;H.264B;MJPEG(Sub Stream)

Streaming Capability

3 streams

Resolution

1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 1080p/960p/720p@(1–25/30 fps)

Sub stream 1: D1/VGA/CIF@(1–25/30 fps)

Sub stream 2: 1080p/960p/720p@(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 1792 kbps–8192 kbps

H.265: 512 kbps–5632 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Electronic (EIS)

Defog

Electronic

Digital Zoom

16×

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view

S/N Ratio

≥ 55 dB

Audio

Audio Compression

G.711a; G.711Mu; G.722.1; G.726; MPEG2-Layer2; G.729

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;Qos;FTP;UPnP;ICMP;SNMP;SNMPv1/v2c/v3(MIB-2);IGMP;ARP;RTCP;RTP;PPPoE;IP Filter;RTMP;Bonjour;TCP;SMB;NFS

Interoperability

CGI; Dahua SDK; API; SDK; ONVIF（Profile S & Profile G & Profile T & Profile M）

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

FTP; Micro SD card (512 GB); NAS

Browser

IE 7 and later versions

Chrome

Firefox

Safari

Management Software

DMSS; DSS Pro

Mobile Client

iOS; Android; iPhone; iPad

Certification

Certifications

CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB, ANSI C63.4- 2014

Port

Audio Input

1 channel (LINE IN, bare wire)

Audio Output

1 channel (LINE OUT,bare wire)

Alarm Linkage

Capture; preset; tour; pattern; recording; alarm digital input; audio; send email

Alarm Event

Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection

Alarm Input

2 channels in: supports wet contact connection (max load 5 mA 3-5 VDC); supports dry contact connection

Alarm Output

1 channel out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC

Audio I/O

1/1

Power

Power Supply

12 VDC (± 10%),3 A;POE+(802.3at)

Power Consumption

Basic: 12 W

Max.: 20 W (IR light)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Protection

IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

270.4 mm × Φ160.0 mm (10.65" × Φ6.30")

Net Weight

2.4 kg (5.29 lb)

Gross Weight

3.9 kg (8.60 lb)
