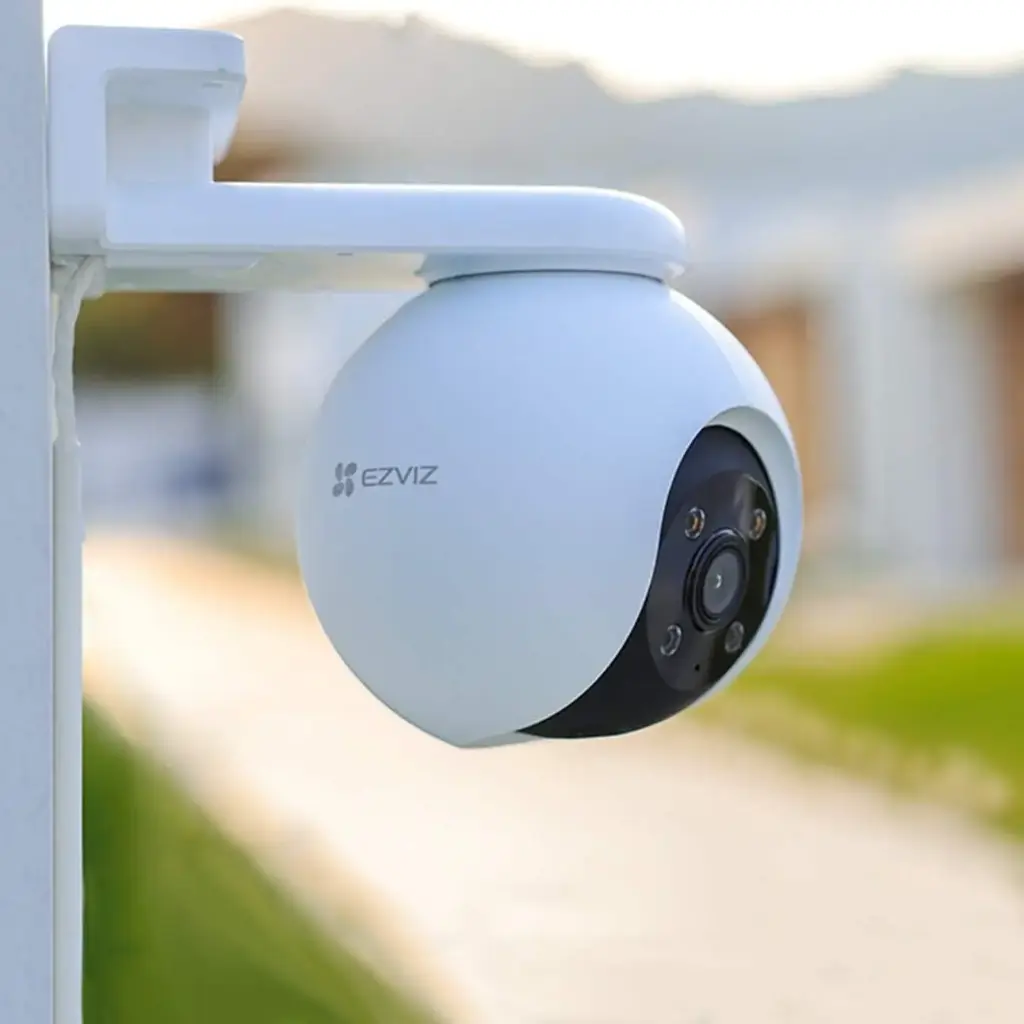

EZVIZ H8 Pro 3K - Pan & Tilt Wi-Fi Camera in 3K
EZVIZ H8 Pro 3K - Pan & Tilt Wi-Fi Camera in 3K (H8 Pro 3K) مناسب لمشروعات WIFI CAMERA التي تحتاج إلى مواصفات واضحة وتوافق عملي مع أنظمة المراقبة أو الشبكات أو التحكم في الدخول، مع دعم دو لينك في مصر.
H8 Pro 3K
| Specifications | |
|---|---|
| Model | CS-H8-R100-1J5WKFL |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm@ F1.6, Viewing angle: 46° (Vertica), 89° (Horizontal), 104° (Diagonal) 6mm@ F1.6, Viewing angle:28° (Vertica), 54° (Horizontal), 62° (Diagonal) |
| PT Angle | Pan: 340°, Tilt: 80° |
| Minimum Illumination | 0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Night Vision Distance | Up to 30m / 98ft |
| Video & Audio | |
| Max. Resolution | 2880 × 1620 |
| Frame Rate | Max:30fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Quad HD+; Full HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 4 Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b 11Mbps, 11g 54Mbps, 11n 72Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1(10M / 100M Adaptive Ethernet Port) |
| Storage | |
| Local Storage | Supports Micro SD card (Up to 512GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| Function | |
| Smart Alarm | AI Powered Human / Vehicle Detection / Waving-Hand Recognition &Control |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| General | |
| Operating Conditions | -30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing) |
| IP Grade | Weatherproof Design |
| Power Supply | DC 12V / 1A |
| Power Consumption | MAX. 6W |
| Dimensions | 116 × 153.2 × 163.8 mm (4.57 × 6.03 × 6.45 inch) |
| Packaging Dimensions | 187 × 174 × 186.5 mm (7.36 × 6.85 × 7.34 inch) |
| Weight | Net Weight: 592 g (20.88 oz) With Package: 943 g (33.26 oz) For EU Standard Version |
| In the box | |
| In the box | - H8 Pro 3K Camera |
| - Power Adapter | |
| - Screw Kit | |
| - Waterproof Kit | |
| - Drilling Template | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | UL / FCC / CE / WEEE / RoHS / UKCA |
عام
| الموديل | H8 Pro 3K |
|---|
