كود المنتج:
SONORA-5TB

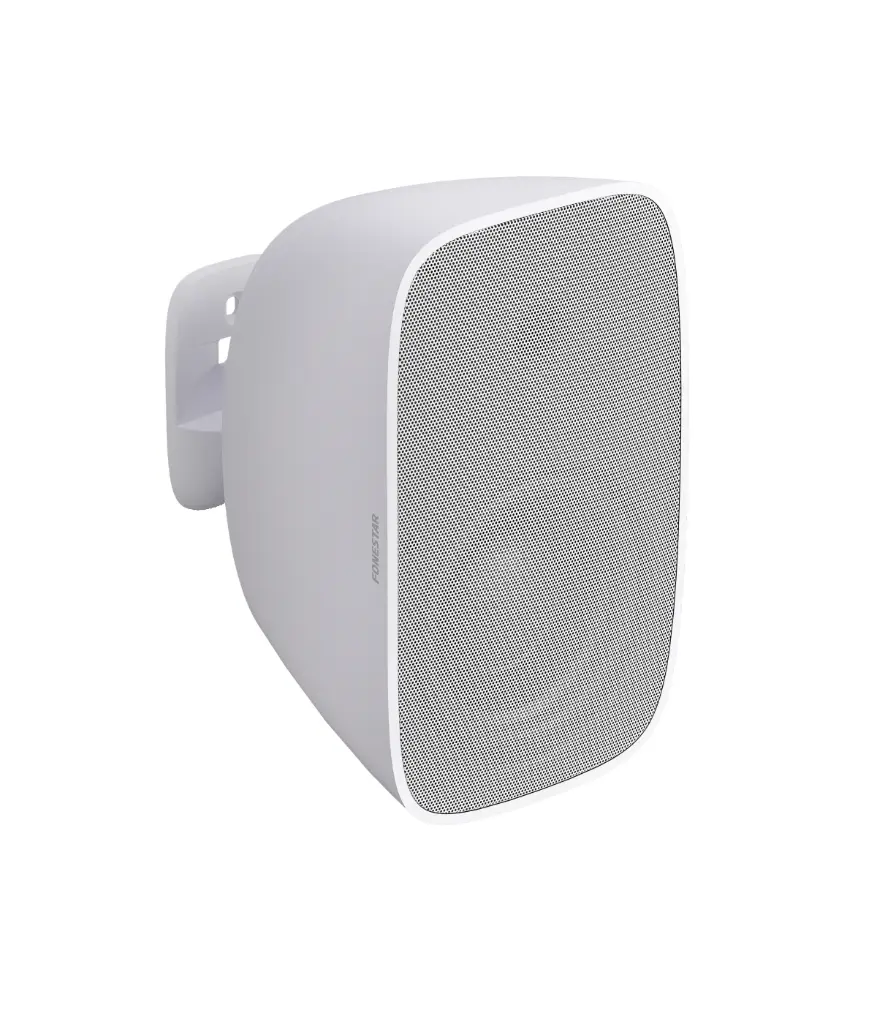

Fonestar SONORA-5TB 5.25″ Outdoor Wall Speaker – 40W
Fonestar SONORA-5TB 5.25″ Outdoor Wall Speaker – 40W من منتجات سماعة صوت. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
SONORA-5TB
Sound reinforcement loudspeaker with 100 V line transformer and low impedance
Based on our extensive experience in the sound sector, FONESTAR has created SONORA.
SONORA is a series of speakers specially designed for PA and background sound applications.
Its excellent finish and elegant design allow perfect integration in any space.
They are fully prepared for outdoor use as they feature an aluminium grille and protection against water (IP-66) and marine environments.
In addition, SONORA provides high sound quality, clear and distortion-free.
They include all the necessary accessories for easy and quick installation: adjustable fixing mount with weatherproof treatment, stainless steel screws and a steel safety cable.
For public address and background sound applications in public places such as restaurants, cafés, supermarkets and shopping centres.
عام
| الموديل | SONORA-5TB |
|---|
| FEATURES: | Low impedance loudspeaker with 100 V line transformer. Suitable for outdoor use, waterproof and rustproof materials. |
| POWER: | 80 W max., 40 W RMS |
| SPEAKERS: | 1 x 5 ¼" polypropylene woofer 1 x 1" tweeter |
| RESPONSE: | 80-20,000 Hz |
| IMPEDANCE: | 40 W RMS@100 V (250 Ω) 20 W RMS@100 V/70 V (500 Ω/245 Ω) 10 W RMS@100 V/70 V (1.000 Ω/490 Ω) 5 W RMS@100 V/70 V (2.000 Ω/980 Ω) 2'5 W RMS@70 V (1.960 Ω) Low Z: 8 Ω |
| SENSITIVITY: | 88.3 dB @ 1 W/1 m |
| MAXIMUN SOUND PRESSURE: | 102.2 dB @ máx. W/1 m |
| COVERAGE ANGLE: | 135º H x 135º V @1kHz (-6 dB) |
| PROTECTIONS: | IP-66 in compliance with EN 60529 IEC 60068-2-11 Enviromental Test (Salt mist) |
| MATERIAL: | ABS (UV resistance) Aluminium mesh grille, with powder-coated finish Weather-resistant mount Stainless steel screws |
| SWITCH: | W selector in high Z and low Z |
| CONNECTORS: | Euroblock in and out for cable 0.25 - 2.5 mm² cross section |
| TEMPERATURE RANGE: | -10ºC ~ 60ºC |
| COLOUR: | White (RAL 9003) |
| DIMENSIONS: | Loudspeaker: 162 x 263 x 147 mm depth Mount wall plate: 68 x 110 mm Loudspeaker with mount: 216 mm depth |
| WEIGHT: | 2.2 kg |
| ACCESSORIES: | Adjustable mounting bracket ± 60º in all directions. Steel safety cable |

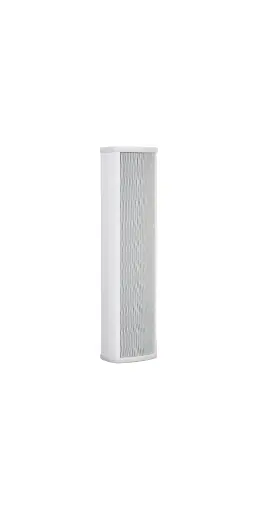

![[TOWER-20TB] Fonestar Speakers Sound columns TOWER-20TB](/web/image/product.template/1997/image_512)
