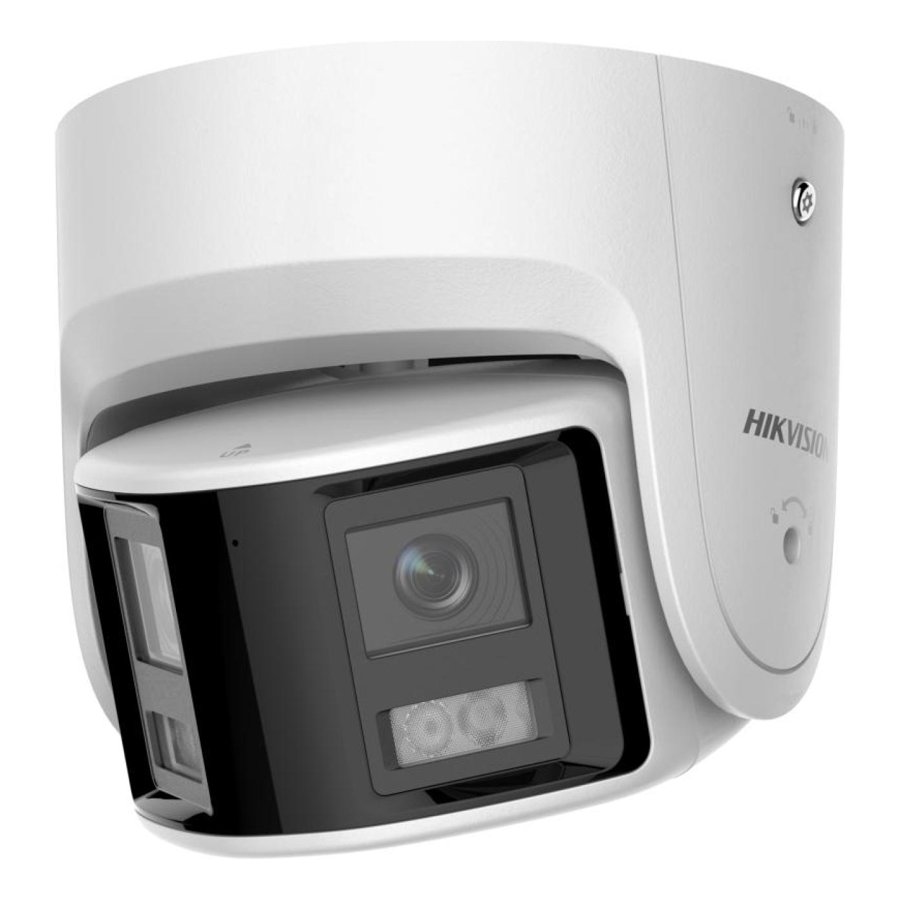

Hikvision DS-2CD2367G2P-LSU/SL 6 MP Panoramic Fixed Turret Network Camera

• Image Sensor
  • 2 × 1/2.5" Progressive Scan CMOS
• Min. Illumination
  • Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
• Shutter Time
  • 1/3 s to 1/100,000 s
• Max. Resolution
  • 3632 × 1632
• Angle Adjustment
  • Pan: 0° to 30°, tilt: -75° to 75°
• Lens Type
  • Fixed focal lens, dual lens, 2.8 mm
• Aperture
  • F1.0
• Iris Type
  • Fixed
• Depth of Field
  • 2 m to ∞
• & Focal Length FOV
  • 2.8 mm, horizontal FOV: 180°, vertical FOV: 81°
• DORI
  • 2.8 mm, D: 45 m, O: 17.5 m, R: 9 m, I: 4.5 m
• Supplement Light Type
  • White Light
• Supplement Light Range
  • Up to 30 m
• Smart Supplement Light
  • Yes
• Video Bit Rate
  • 32 Kbps to 16 Mbps
• Video Compression
  • Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
• H.264 Type
  • Baseline Profile, Main Profile, High Profile
• H.265 Type
  • Main Profile
• Main Stream
  • 50 Hz: 20 fps (3632 × 1632) 60 Hz: 20 fps (3632 × 1632)
• Sub-Stream
  • 50 Hz: 20 fps (1200 × 536, 960 × 432) 60 Hz: 20 fps (1200 × 536, 960 × 432)
• Bit Rate Control
  • CBR, VBR
• Scalable Video Coding (SVC)
  • H.264 and H.265 encoding
• Region of Interest (ROI)
  • 1 fixed region(s) for main stream
• Environment Noise Filtering
  • Yes
• Audio Sampling Rate
  • 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression
  • G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate
  • 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Type
  • Mono sound
• Network Storage
  • NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Protocols
  • TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets
• API
  • Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
• Security
  • Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over
• Simultaneous Live View
  • Up to 6 channels
• User/Host
  • Up to 32 users 3 user levels: administrator, operator, and user
• Client
  • iVMS-4200, Hik-Connect, Hik-Central
• Web Browser
  • Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Wide Dynamic Range (WDR)
  • 130 dB
• Image Enhancement
  • BLC, HLC, 3D DNR
• Day/Night Switch
  • Day, Night, Auto, Schedule
• Image Parameters Switch
  • Yes
• Image Settings
  • Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• SNR
  • ≥ 52 dB
• Privacy Mask
  • 8 rectangular privacy masks
• Audio
  • 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm
  • 1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
• On-Board Storage
  • Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Reset Key
  • Yes
• Ethernet Interface
  • 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in Microphone
  • Yes
• Built-in Speaker
  • Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB.
• Smart Event
  • Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), Scene change detection
• Basic Event
  • Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception
• Linkage
  • Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing
• المادة
  • Base: metal, cover: metal
• Startup and Operating Conditions
  • -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power
  • 12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
• Dimension
  • Ø140 mm × 145.6 mm (Ø5.5" × 5.7")
• Weight
  • Approx. 920 g (2.0 lb.)
• Package Dimension
  • 230 mm × 230 mm × 230 mm (9" × 9" × 9")
• With Package Weight
  • Approx. 1680 g (3.7 lb.)
• Storage Conditions
  • -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language
  • 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Tradition
• Flashing Light
  • Yes
