كود المنتج:
DS-2CD2367G2P-LSU/SL

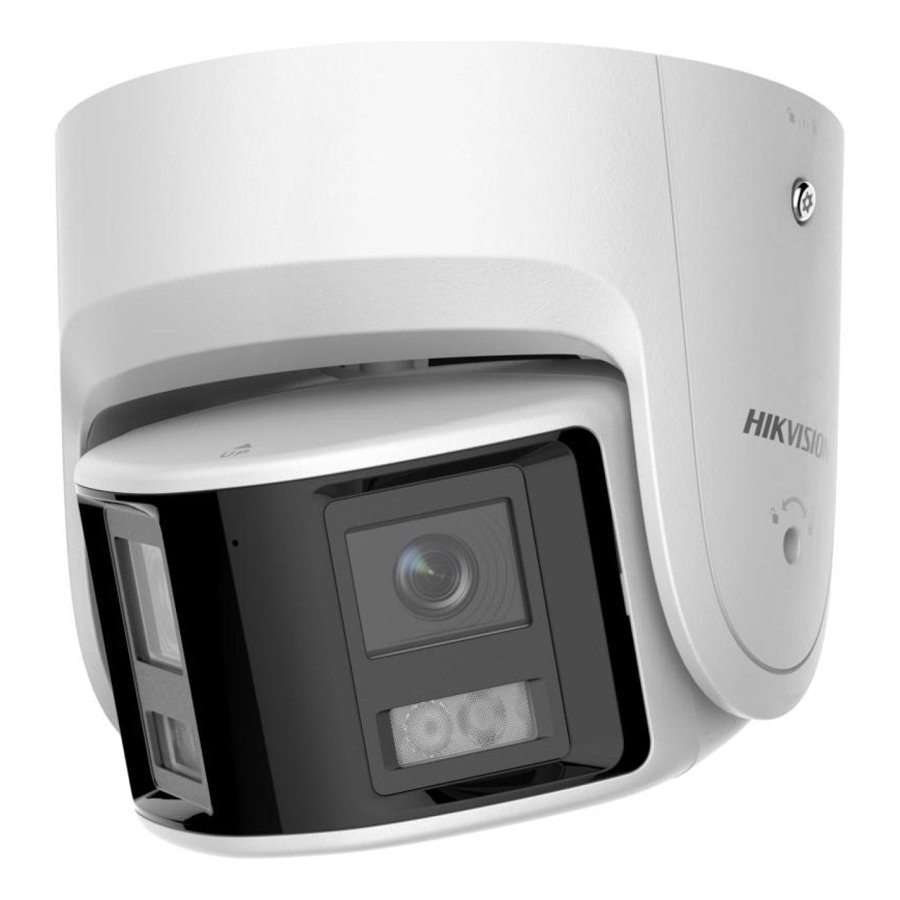

Hikvision DS-2CD2367G2P-LSU/SL 6 MP Panoramic Fixed Turret Network Camera
Hikvision DS-2CD2367G2P-LSU/SL 6 MP Panoramic Fixed Turret Network Camera من منتجات كاميرا مراقبة IP. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A Hikvision IP network camera with official Hikvision image quality, smart detection and H.265+ compression, for professional CCTV systems.
- High quality imaging with 6 MP resolution
- One image that presents all the scenes covered by the camera
- 24/7 colorful imaging
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 130 dB WDR technology
6MP Ultra HD
H.265+ Smart Codec
WDR 130 dB
Color Night Vision
AI Human & Vehicle
Built-in Microphone
SD Card up to 512 GB
PoE Power over Ethernet
| Image Sensor: 2 × 1/2.5" Progressive Scan CMOS |
| Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time: 1/3 s to 1/100,000 s |
| Max. Resolution: 3632 × 1632 |
| Angle Adjustment: Pan: 0° to 30°, tilt: -75° to 75° |
| Lens Type: Fixed focal lens, dual lens, 2.8 mm |
| Aperture: F1.0 |
| Iris Type: Fixed |
| Depth of Field: 2 m to ∞ |
| & Focal Length FOV: 2.8 mm, horizontal FOV: 180°, vertical FOV: 81° |
| DORI: 2.8 mm, D: 45 m, O: 17.5 m, R: 9 m, I: 4.5 m |
| Supplement Light Type: White Light |
| Supplement Light Range: Up to 30 m |
| Smart Supplement Light: Yes |
| Video Bit Rate: 32 Kbps to 16 Mbps |
| Video Compression: Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| H.264 Type: Baseline Profile, Main Profile, High Profile |
| H.265 Type: Main Profile |
| Main Stream: 50 Hz: 20 fps (3632 × 1632) 60 Hz: 20 fps (3632 × 1632) |
| Sub-Stream: 50 Hz: 20 fps (1200 × 536, 960 × 432) 60 Hz: 20 fps (1200 × 536, 960 × 432) |
| Bit Rate Control: CBR, VBR |
| Scalable Video Coding (SVC): H.264 and H.265 encoding |
| Region of Interest (ROI): 1 fixed region(s) for main stream |
| Environment Noise Filtering: Yes |
| Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Type: Mono sound |
| Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets |
| API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK |
| Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over |
| Simultaneous Live View: Up to 6 channels |
| User/Host: Up to 32 users 3 user levels: administrator, operator, and user |
| Client: iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Wide Dynamic Range (WDR): 130 dB |
| Image Enhancement: BLC, HLC, 3D DNR |
| Day/Night Switch: Day, Night, Auto, Schedule |
| Image Parameters Switch: Yes |
| Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| SNR: ≥ 52 dB |
| Privacy Mask: 8 rectangular privacy masks |
| Audio: 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm: 1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A) |
| On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Reset Key: Yes |
| Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Built-in Microphone: Yes |
| Built-in Speaker: Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB. |
| Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), Scene change detection |
| Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception |
| Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing |
| المادة : Base: metal, cover: metal |
| Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Power: 12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W |
| Dimension: Ø140 mm × 145.6 mm (Ø5.5" × 5.7") |
| Weight: Approx. 920 g (2.0 lb.) |
| Package Dimension: 230 mm × 230 mm × 230 mm (9" × 9" × 9") |
| With Package Weight: Approx. 1680 g (3.7 lb.) |
| Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Tradition |
| Flashing Light: Yes |
عام
| الموديل | DS-2CD2367G2P-LSU/SL |
|---|
Key Features
- High quality imaging with 6 MP resolution
- One image that presents all the scenes covered by the camera
- 24/7 colorful imaging
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 130 dB WDR technology
- Focus on human and vehicle classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
Best Fit Applications
Homes, villas, shops, offices, warehouses, factories, schools, parking areas and building perimeters.
Technical Specifications
| Model | DS-2CD2367G2P-LSU/SL |
| Camera | |
| Image Sensor | 2 × 1/2.5" Progressive Scan CMOS |
| Max. Resolution | 3632 × 1632 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Angle Adjustment | Pan: 0° to 30°, tilt: -75° to 75° |
| Lens | |
| Lens Type | Fixed focal lens, dual lens, 2.8 mm |
| & Focal Length FOV | 2.8 mm, horizontal FOV: 180°, vertical FOV: 81° |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 2 m to ∞ |
| DORI | |
| DORI | 2.8 mm, D: 45 m, O: 17.5 m, R: 9 m, I: 4.5 m |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| Video | |
| Main Stream | 50 Hz: 20 fps (3632 × 1632) 60 Hz: 20 fps (3632 × 1632) |
| Sub-Stream | 50 Hz: 20 fps (1200 × 536, 960 × 432) 60 Hz: 20 fps (1200 × 536, 960 × 432) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region(s) for main stream |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 130 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 8 rectangular privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | Yes |
| Built-in Speaker | Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB. |
| Audio | 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), Scene change detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing |
| General | |
| Power | 12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W |
| Material | Base: metal, cover: metal |
| Dimension | Ø140 mm × 145.6 mm (Ø5.5" × 5.7") |
| Package Dimension | 230 mm × 230 mm × 230 mm (9" × 9" × 9") |
| Weight | Approx. 920 g (2.0 lb.) |
| With Package Weight | Approx. 1680 g (3.7 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Tradition |
| Flashing Light | Yes |
الخصائص
| Image Sensor | 2 × 1/2.5" Progressive Scan CMOS |
|---|---|
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Max. Resolution | 3632 × 1632 |
| Angle Adjustment | Pan: 0° to 30°, tilt: -75° to 75° |
| Lens Type | Fixed focal lens, dual lens, 2.8 mm |
| Aperture | F1.0 |
| Iris Type | Fixed |
| Depth of Field | 2 m to ∞ |
| & Focal Length FOV | 2.8 mm, horizontal FOV: 180°, vertical FOV: 81° |
| DORI | 2.8 mm, D: 45 m, O: 17.5 m, R: 9 m, I: 4.5 m |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Main Stream | 50 Hz: 20 fps (3632 × 1632) 60 Hz: 20 fps (3632 × 1632) |
| Sub-Stream | 50 Hz: 20 fps (1200 × 536, 960 × 432) 60 Hz: 20 fps (1200 × 536, 960 × 432) |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region(s) for main stream |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Type | Mono sound |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Wide Dynamic Range (WDR) | 130 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| SNR | ≥ 52 dB |
| Privacy Mask | 8 rectangular privacy masks |
| Audio | 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A) |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Reset Key | Yes |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Built-in Microphone | Yes |
| Built-in Speaker | Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB. |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), Scene change detection |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing |
| المادة | Base: metal, cover: metal |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Power | 12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W |
| Dimension | Ø140 mm × 145.6 mm (Ø5.5" × 5.7") |
| Weight | Approx. 920 g (2.0 lb.) |
| Package Dimension | 230 mm × 230 mm × 230 mm (9" × 9" × 9") |
| With Package Weight | Approx. 1680 g (3.7 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Tradition |
| Flashing Light | Yes |
![[DS-2CD2087G3-LIY] Hikvision DS-2CD2087G3-LIY 8 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera](/web/image/product.template/2982/image_512)
![[DS-2CD2347G2H-LI] Hikvision DS-2CD2347G2H-LI 4 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera](/web/image/product.template/2963/image_512)
![[DS-2CD2625FHWD-IZS] Hikvision DS-2CD2625FHWD-IZS 2 MP IR Varifocal Bullet Network Camera](/web/image/product.template/2955/image_512)
![[DS-2CD2665G0-IZS] Hikvision DS-2CD2665G0-IZS 6 MP IR Varifocal Bullet Network Camera](/web/image/product.template/2954/image_512)
![[DS-2CD2T83G2-2I] Hikvision DS-2CD2T83G2-2I 8 MP AcuSense Fixed Bullet Network Camera](/web/image/product.template/2956/image_512)
![[DS-2CD3043G2-IU] Hikvision DS-2CD3043G2-IU 4 MP WDR Fixed Bullet Network Camera](/web/image/product.template/2989/image_512)
![[DS-2CD3051G0-I] Hikvision DS-2CD3051G0-I 5 MP IR Fixed Bullet Network Camera](/web/image/product.template/2991/image_512)
![[DS-2CD3061G2-LIUF] Hikvision DS-2CD3061G2-LIUF 6 MP Smart Hybrid Light Motion 2.0 Fixed Bullet Network Camera](/web/image/product.template/2986/image_512)
![[DS-2CD2367G2P-LSU/SL] Hikvision DS-2CD2367G2P-LSU/SL 6 MP Panoramic Fixed Turret Network Camera](/web/image/product.template/2959/image_256)
هل تحتاج مساعدة في الاختيار؟
هل تريد معرفة المزيد؟
تحدث مع مختص من Do Link لتحديد المواصفات المناسبة، والتكامل، والدعم الميداني.
