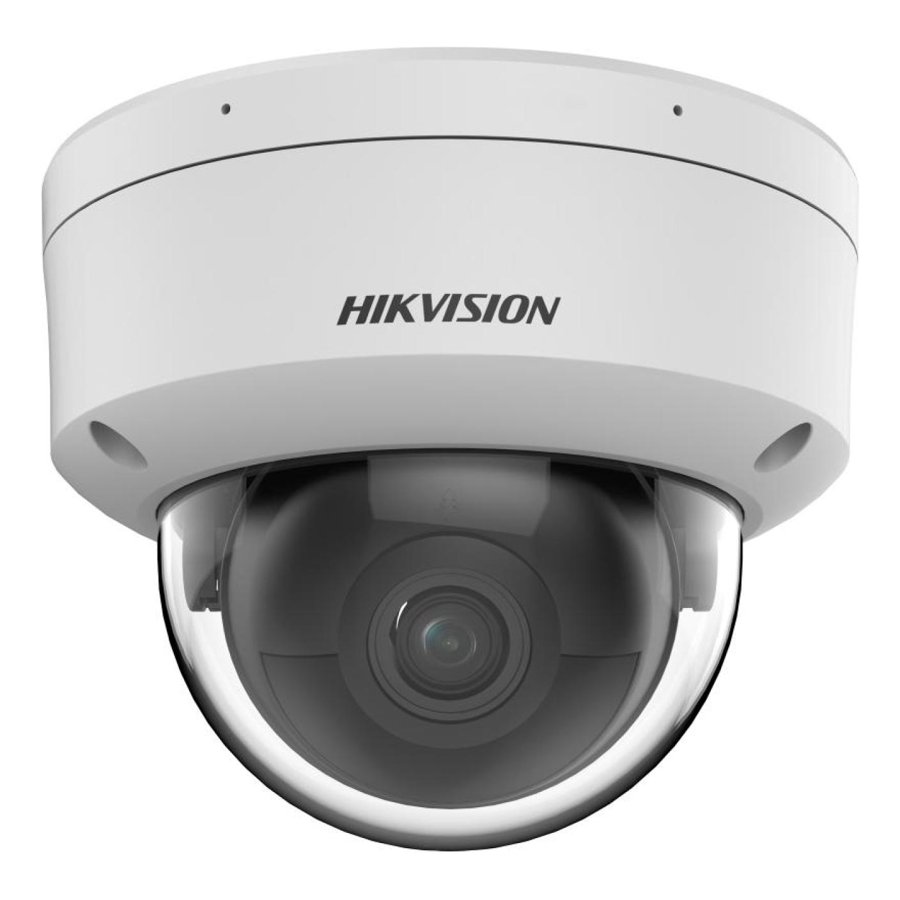

Hikvision DS-2CD3146G2-ISU 4 MP AcuSense Fixed Dome Network Camera

• Image Sensor
  • 1/3" Progressive Scan CMOS
• Min. Illumination
  • Color: 0.003 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
• Shutter Time
  • 1/3 s to 1/100,000 s
• Day & Night
  • IR cut filter
• Max. Resolution
  • 2688 × 1520
• Angle Adjustment
  • Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
• Lens Type
  • Fixed focal lens, 2.8, 4, and 6 mm optional
• Aperture
  • F1.4
• Focal Length & FOV
  • 2.8 mm, horizontal FOV 101°, vertical FOV 54°, diagonal FOV 122° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99° 6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 64°
• Iris Type
  • Fixed
• DORI
  • 2.8 mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m 6 mm: D: 126 m, O: 50 m, R: 25 m, I: 12 m
• Supplement Light Type
  • IR
• Supplement Light Range
  • Up to 40 m
• Smart Supplement Light
  • Yes
• IR Wavelength
  • 850 nm
• Video Bit Rate
  • 32 Kbps to 8 Mbps
• Video Compression
  • Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG
• H.264 Type
  • Baseline Profile,Main Profile,High Profile
• H.265 Type
  • Main Profile
• Main Stream
  • 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Third Stream
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Sub-Stream
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Bit Rate Control
  • CBR,VBR
• Scalable Video Coding (SVC)
  • H.264 and H.265 encoding
• Region of Interest (ROI)
  • 5 fixed regions for main stream and sub-stream
• Fourth Stream
  • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
• Target Cropping
  • Yes
• Environment Noise Filtering
  • Yes
• Audio Sampling Rate
  • 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression
  • G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate
  • 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Network Storage
  • NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Protocols
  • TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
• API
  • ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• Security
  • Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Inter
• Simultaneous Live View
  • Up to 6 channels
• User/Host
  • Up to 32 users 3 user levels: administrator, operator, and user
• Client
  • iVMS-4200,Hik-Connect,Hik-Central
• Web Browser
  • Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Wide Dynamic Range (WDR)
  • 120 dB
• Image Enhancement
  • BLC,HLC,3D DNR,Defog
• Day/Night Switch
  • Day,Night,Auto,Schedule
• Image Parameters Switch
  • Yes
• Image Settings
  • Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• SNR
  • ≥ 52 dB
• Privacy Mask
  • 4 programmable polygon privacy masks
• Audio
  • 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type
• Alarm
  • 1 input, 1 output (max. 12 VDC, 30 mA)
• On-Board Storage
  • Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Reset Key
  • Yes
• Ethernet Interface
  • 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in Microphone
  • -U: Yes
• Power Output
  • 12 VDC, max. 100 mA
• Smart Event
  • scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection
• Basic Event
  • Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Linkage
  • Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
• Deep Learning Structure
  • Caffe,PyTorch,TensorFlow,PaddlePaddle, ONNX
• Face Capture
  • Yes
• People Counting
  • Yes
• Perimeter Protection
  • Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
• Startup and Operating Conditions
  • -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power
  • 12 VDC ± 25%, 0.62 A, max. 7.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9 W
• Dimension
  • Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
• Weight
  • Approx. 500 g (1.10 lb.)
• Package Dimension
  • 150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
• With Package Weight
  • Approx. 700 g (1.54 lb.)
• Storage Conditions
  • -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language
  • 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Tradition
