كود المنتج:
DS-9664NXI-I8/S

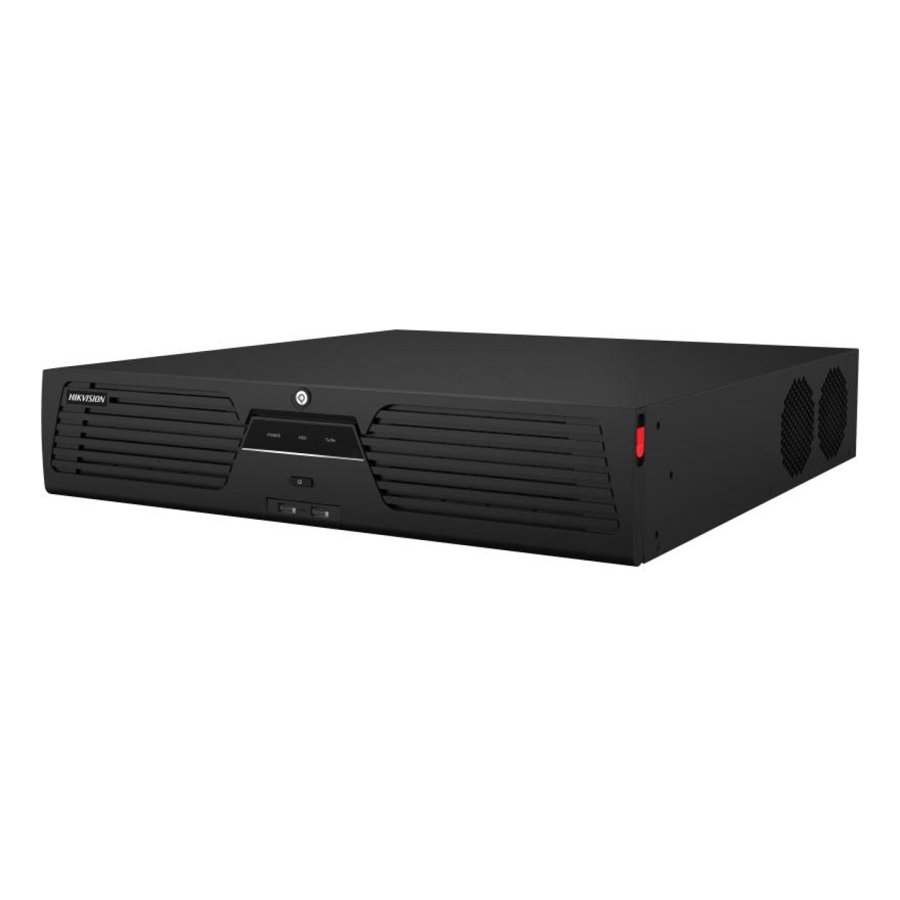

Hikvision DS-9664NXI-I8/S 64-ch 2U 4K AcuSense NVR
Hikvision DS-9664NXI-I8/S 64-ch 2U 4K AcuSense NVR من منتجات جهاز تسجيل شبكي NVR. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A Hikvision network video recorder for recording, playback and remote viewing of IP cameras, with HDD storage and Hik-Connect support.
- H.265+/H.265/H.264+/H.264 video formats
- Intelligent analytics based on deep learning algorithm
- Up to 4-ch perimeter protection
- Up to 4-ch facial recognition for video stream
- Up to 8-ch facial recognition for face picture
عام
| الموديل | DS-9664NXI-I8/S |
|---|
Key Features
- H.265+/H.265/H.264+/H.264 video formats
- Intelligent analytics based on deep learning algorithm
- Up to 4-ch perimeter protection
- Up to 4-ch facial recognition for video stream
- Up to 8-ch facial recognition for face picture
- Up to 64-ch IP camera inputs
- Up to 320 Mbps incoming bandwidth
Best Fit Applications
CCTV systems for offices, shops, warehouses, factories, hotels, hospitals, schools and compounds.
Technical Specifications
| Model | DS-9664NXI-I8/S |
|---|---|
| Facial Detection and Analytics | Face picture comparison, human face capture, face picture search |
| Face Picture Library | Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB) |
| Facial Detection and Analytics Performance | 4-ch human face capture (HD network camera, up to 8 MP, H.264/H.265) |
| Face Picture Comparison | 8-ch |
| IP Video Input | 64-ch Up to 32 MP resolution *: The NVR supports up to 4-ch 32/24/16 MP IP video inputs. |
| Incoming Bandwidth | 384 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI 1 Output | 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz |
| HDMI 2 Output | 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz |
| VGA 1 Output | 1920 × 1080/60 Hz |
| VGA 2 Output | 1920 × 1080/60 Hz |
| Video Output Mode | HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output,HDMI1/HDMI2 independent output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Output | 2-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Recording Resolution | 32 MP/24 MP/16MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF *: The NVR supports up to 4-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP. |
| Live View Window Division | 1/2/4/6/8/9/16/25/32/36/64 |
| Dual-Stream Recording | Support |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Decoding Capability | Enable AI by NVR: 20-ch@1080p (30 fps) 1-ch@32 MP (30 fps); 1-ch@24 MP (30 fps); 2-ch@16MP (30 fps); 3-ch@12MP (30 fps);5-ch@8 MP (30 fps); 6-ch@6 MP (30 fps);8-ch@5 MP (30 fps);10-ch@4 MP (30 fps);20-ch@2 MP (30 fps); Disable AI by NVR: 32-ch@1080p (30 fps) 2-ch@32 MP (30 fps); 2-ch@24 MP (30 fps); |
| Synchronous Playback | 16-ch |
| Stream Type | Video, Video & Audio |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Remote Connection | 128 |
| Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| RAID Type | RAID0, RAID1, RAID5, RAID6, RAID10 Support global hot spare |
| SATA | 8 SATA interfaces |
| ESATA | 1 eSATA interface |
![[DS-7608NI-K1/8P] Hikvision DS-7608NI-K1/8P 8-ch 1U 8 PoE K/C Series 4K NVR](/web/image/product.template/2978/image_512)

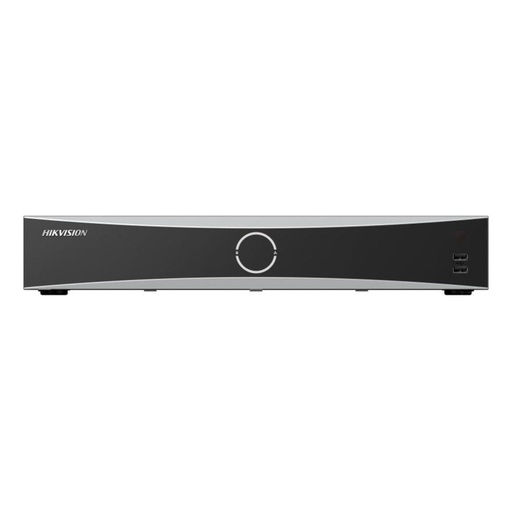

![[DS-7732NXI-K4/VPro] Hikvision DS-7732NXI-K4/VPro 32-ch 1.5U AcuSense K VPro NVR](/web/image/product.template/2980/image_512)
