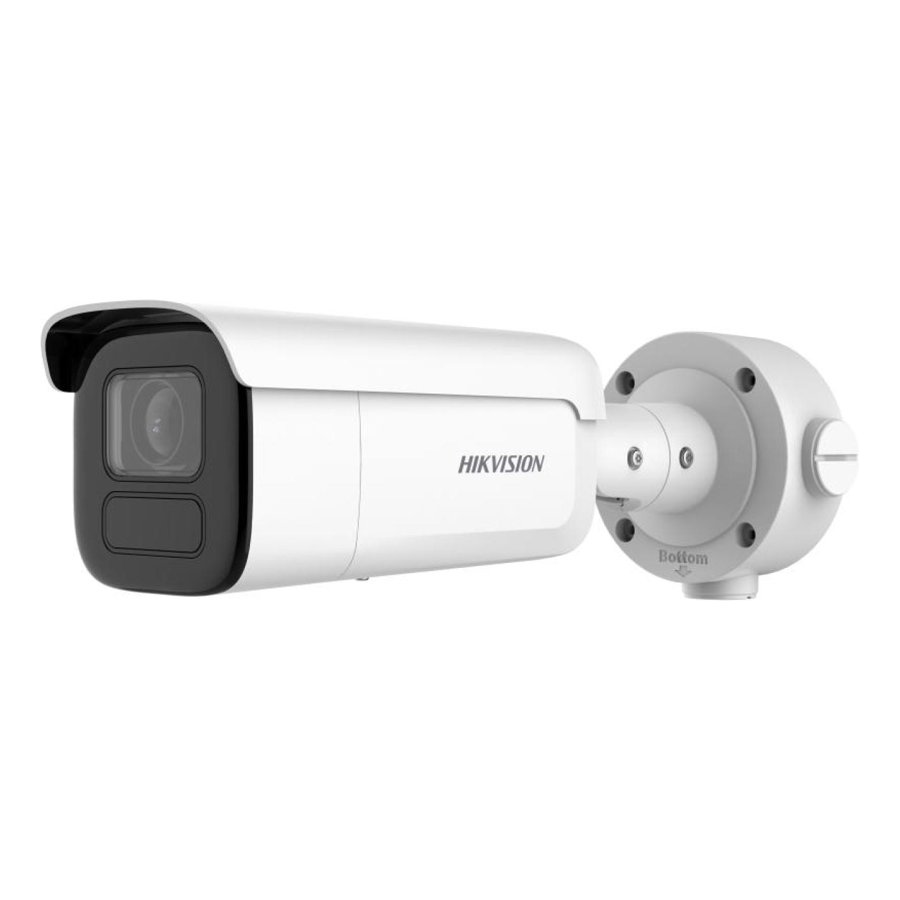

Hikvision DS-2CD3B86G2T-IZHS 8 MP DarkFighter Varifocal Bullet Network Camera

• Image Sensor
  • 1/1.8" Progressive Scan CMOS
• Min. Illumination
  • Color: 0.004 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
• Shutter Time
  • 1/3 s to 1/100,000 s
• Day & Night
  • IR cut filter
• Max. Resolution
  • 3840 × 2160
• Angle Adjustment
  • Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
• Lens Type
  • Varifocal lens, motorized lens, 2.8 to 12 mm and 8 to 32 mm optional
• Aperture
  • 2.8 to 12 mm: F1.4; 8 to 32 mm: F1.7
• Focus
  • Auto, Semi-auto, Manual
• Focal Length & FOV
  • 2.8 to 12 mm: horizontal FOV 112° to 41°, vertical FOV 58° to 23°, diagonal FOV 137° to 47° 8 to 32 mm: horizontal FOV 41.8° to 15°, vertical FOV 22.9° to 8.5°, diagonal FOV 48.7° to 17.1°
• Iris Type
  • P-iris
• Depth of Field
  • 2.8 to 12 mm: 1.5 m to ∞ 8 to 32 mm: 9.3 m to ∞
• DORI
  • 2.8 to 12 mm: D: 87 to 216 m, O: 34.5 to 85 m, R: 17.4 to 43.2 m, I: 8.7 to 21.6 m 8 to 32 mm: D: 218 to 580 m, O: 86.5 to 230.2 m, R: 43.6 to116 m, I: 21.8 to 58 m
• Supplement Light Type
  • IR
• Supplement Light Range
  • 2.8 to 12 mm: up to 60 m; 8 to 32 mm: up to 80 m
• Smart Supplement Light
  • Yes
• IR Wavelength
  • 850 nm
• Video Bit Rate
  • 32 Kbps to 16 Mbps
• Video Compression
  • Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG
• H.264 Type
  • Baseline Profile, Main Profile, High Profile
• H.265 Type
  • Main Profile
• Main Stream
  • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Third Stream
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Sub-Stream
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Bit Rate Control
  • CBR, VBR
• Scalable Video Coding (SVC)
  • H.264 and H.265 encoding
• Region of Interest (ROI)
  • 5 fixed regions for main stream and sub-stream
• Fourth Stream
  • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
• Target Cropping
  • Yes
• Environment Noise Filtering
  • Yes
• Audio Sampling Rate
  • 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression
  • G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate
  • 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Type
  • Mono sound
• Network Storage
  • NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Protocols
  • TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
• API
  • ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• Security
  • Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Inter
• Simultaneous Live View
  • Up to 6 channels
• User/Host
  • Up to 32 users 3 user levels: administrator, operator, and user
• Client
  • iVMS-4200, Hik-Connect, Hik-Central
• Web Browser
  • Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Wide Dynamic Range (WDR)
  • 120 dB
• Image Enhancement
  • BLC, HLC, 3D DNR, Defog
• Day/Night Switch
  • Day, Night, Auto, Schedule
• Image Parameters Switch
  • Yes
• Image Settings
  • Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• SNR
  • ≥ 52 dB
• Privacy Mask
  • 4 programmable polygon privacy masks
• Audio
  • 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type
• Alarm
  • 3 inputs, 3 outputs (max. 24 VDC/24 VAC, 1 A)
• On-Board Storage
  • Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Reset Key
  • Yes
• Ethernet Interface
  • 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Power Output
  • 12 VDC, max. 100 mA
• RS-485
  • 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Smart Event
  • scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection
• Basic Event
  • Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
• Linkage
  • Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning
• Deep Learning Structure
  • Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX
• Face Capture
  • Yes
• People Counting
  • Yes
• Perimeter Protection
  • Line crossing, intrusion, region entrance, region exiting Support alarm triggered by specified target types (human and vehicle)
• المادة
  • Aluminum alloy body
• Startup and Operating Conditions
  • -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power
  • 12 VDC ± 25%, 1.20 A, max. 14 W, 24 VAC ± 20%, 1.03 A, max. 14 W, two-core terminal block, PoE: IEEE 802.3at, Class 4, max. 17 W
• Dimension
  • Ø105 mm × 340.7 mm (Ø4.1" × 13.4")
• Weight
  • Approx. 1455 g (3.1 lb.)
• Package Dimension
  • 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
• With Package Weight
  • Approx. 2256 g (5.0 lb.)
• Storage Conditions
  • -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• e-PTZ
  • NA
