كود المنتج:
DS-TCG406-E

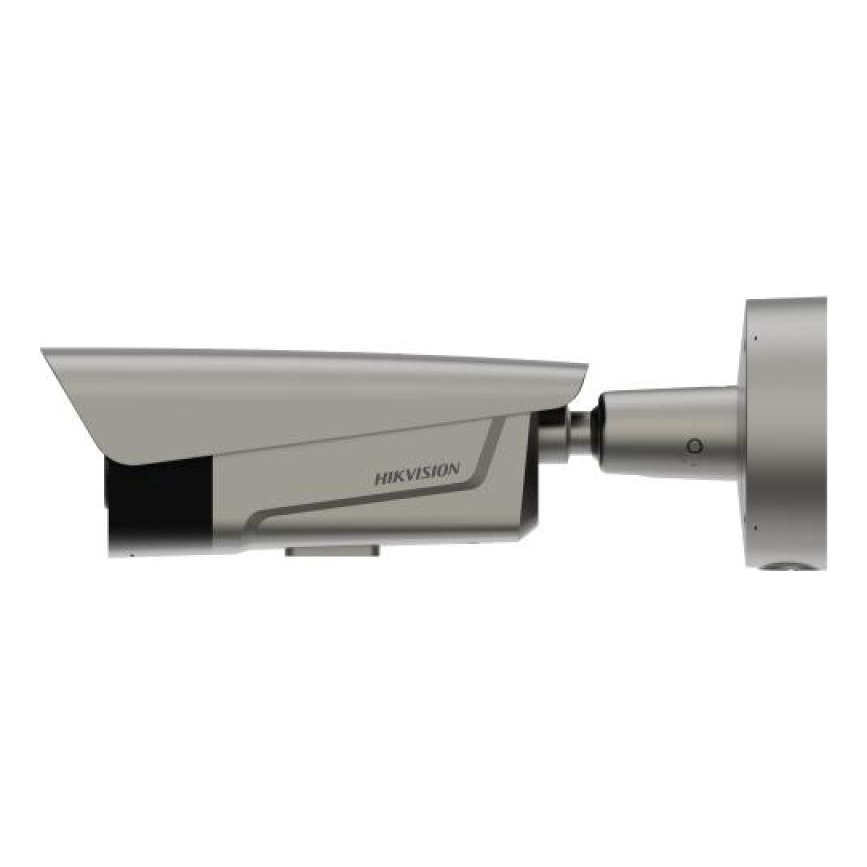

Hikvision DS-TCG406-E 4 MP Access ANPR Camera
Hikvision DS-TCG406-E 4 MP Access ANPR Camera من منتجات كاميرا مراقبة IP. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A Hikvision ANPR camera that recognises vehicle license plates for automatic entrance and exit control.
- 1/1.8" progressive scan CMOS
- Up to 2688 × 1520 resolution with real-time video
- 4 built-in high-performance LEDs (integrated white light and IR)
- 2.8 to 12 mm/8 to 32 mm motorized vari-focal lens
- Supports relay output to control vehicle barrier gate
4MP Super HD
WDR 140 dB
Hybrid Smart Light
LPR Plate Recognition
IP67 Weatherproof
IK10 Vandal Proof
Light & Sound Alarm
| Image Sensor: 1/1.8" Progressive Scan CMOS |
| Min. Illumination: Color: 0.0005 Lux @ (F1.2, AGC ON) B/W: 0.0001 Lux @ (F1.2, AGC ON) 0 Lux with IR |
| Shutter Time: 1/30 s to 1/100,000 s |
| Max. Resolution: 2688 × 1520 |
| Lens Type: 2.8 to 12 mm 8 to 32 mm |
| Aperture: 2.8 to 12 mm: F1.2 to F2.5 8 to 32 mm: F1.7 to F1.73 |
| Focus: Auto，Vari-focal lens, motor-driven lens |
| Focal Length & FOV: 2.8 to 12 mm, horizontal FoV: 114.5° to 41.8°, vertical FoV: 59.3° to 23.6°, diagonal FoV: 141.1° to 48°, 8 to 32 mm, horizontal FoV: 42.5° to 15.1°, vertical FoV: 23.3° to 8.64°, diagonal FoV: 49.6° to 17.3° |
| Supplement Light Type: IR Light, Warm White Light |
| Supplement Light Range: Video: 2.8 mm to 12 mm: 25 m 8 mm to 32 mm: 50 m Vehicle License Plate: 2.8 mm to 12 mm: 10 m 8 mm to 32 mm: 20 m |
| IR Wavelength: Warm White Light 3000 K, IR Light 850 nm |
| IR Cut Filter: IR cut filter Blue glass module to reduce ghost phenomenon |
| Video Bit Rate: 32 Kbps to 16 Mbps |
| Video Compression: Main stream: H.265/H.264/MJPEG, Sub-stream: H.265/H.264/MJPEG, |
| H.264 Type: Low profile Medium profile High Profile |
| Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Scalable Video Coding (SVC): H.265 and H.264 encoding |
| Frame Rate: 25 fps (P)/30 fps (N) |
| ROI: 8 regions respectively for main stream and sub-stream, 6 levels for each region. |
| Bit Rate Type: Constant, Variable |
| Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP, Otap, Guarding Vision Platform |
| Security: Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, |
| Client: Hik-Central，SDKdemo，PMS Hik-Connect, |
| Web Browser: Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+ |
| Protocol: TCP/IP, ICMP, HTTP, HTTPS, FTP Upload Picture, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SNMP, IGMP, QoS, IPv6, UDP, SSL/TLS, WebSocket,SRTP |
| Wide Dynamic Range (WDR): 140 dB |
| Day/Night Switch: Supported |
| Image Parameters Switch: Yes |
| Image Settings: Saturation: 0 to 100 Brightness: 0 to 100 Contrast: 0 to 100 Gain: 0 to 100 3D DNR: Off, Normal, and Expert modes are selectable. White balance: White Balance 1 and White Balance 2 are selectable. |
| Image Format: JPEG |
| WDR Switch: On, Time, Brightness |
| Audio: 1 input (line in), 1 output (line out) |
| RS-485: 1-ch RS-485 serial port |
| Wiegand: Supported: CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit |
| Relay Output: 2-ch relay output, supporting opening and closing of barrier gates |
| Alarm Input: 3-ch triggered inputs |
| Alarm Output: 1-ch alarm output |
| RS-232: 1-ch RS-232 serial port |
| Memory Card Slot: 1 TF card slot, up to 1 TB |
| LPR Accuracy: Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98.5% Capture rate ≥99% Driving direction accuracy rate ≥98% |
| ANPR Supported Country/Regio n: 6 areas ( Asia, Africa, America, Europe, Oceania, Russian-Speaking Regions) and more than （Statistical 130+ countries/regions quantity includes baseline version and customized version.） Asia: Hong Kong( China), Macau( China), Taiwan( China), Japan, S |
| Smart Event: ANPR, Motor Vehicle Feature, Vehicle Color Recognition, Enable Vehicle Manufacturer Recognition |
| License Plate: Forward, Backward, Bidirection |
| Vehicle Type: Car/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle |
| Vehicle Color: Red, Yellow (including orange, golden), Green, Cyan, Blue, Purple, Pink, Brown, White, Gray (including silver), Black |
| Vehicle Brand: 84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Ro |
| Trigger Type: Video Detection, I/O Coil, Radar Mixed Traffic |
| Picture Type: Scene Picture, Scene Picture + Close-up Picture |
| Scene Mode: Entrance & Exit Toll Gate, Underground Parking Entrance & Exit |
| Capture Type: Strobe Light Mode |
| Capture Resolution: 2688 × 1520 |
| LED Control: Supports automatic light control/time control of LEDs |
| Capture Picture Overlay: Location, Capture Time, Plate Number, Capture No., Vehicle Color Vehicle Type |
| Barrier Gate Control Mode: By Camera/Platform |
| Keep Boom Pole Open for Following Vehicle: Enable/Disable |
| Lock Barrier Gate for Large-Sized Vehicle: Yes |
| Barrier Gate Status: None, Barrier Gate Close In Place, Barrier Gate Open In Place, Remote Control Open In Place |
| Allowlist and Blocklist: Up to 100,000 allowlist and blocklist totally |
| Startup and Operating Conditions: Temperature: -30 °C to 70 °C (-22 °F to 158 °F) Humidity: 95% (non-condensing) |
| Power Supply: 12 to 24 VDC/PoE (802.3af, 44 V to 57 V), 300 mA to 230 mA |
| Protection: IK10 (IEC 62262: 2002), IP67 (IEC 60529-2013) |
| Dimension: 415 mm × 145 mm × 145 mm (16.34 × 5.71 × 5.71 inch) |
| Weight: 3.25 kg (7.17 lb.) |
| Package Dimension: 465 mm × 200 mm × 198 mm (18.31 × 7.87 × 7.80 inch) |
| With Package Weight: 4.3 kg (9.48 lb.) |
| Storage Conditions: Temperature: -20 °C to 70 °C (- 4°F to 158 °F) Humidity: 95% (non-condensing) |
| Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Tradition |
| Working Consumption: 10 W Max. |
عام
| الموديل | DS-TCG406-E |
|---|
Key Features
- 1/1.8" progressive scan CMOS
- Up to 2688 × 1520 resolution with real-time video
- 4 built-in high-performance LEDs (integrated white light and IR)
- 2.8 to 12 mm/8 to 32 mm motorized vari-focal lens
- Supports relay output to control vehicle barrier gate
- Supports Wiegand, connectable with access control system
- Supports loop triggering, radar triggering, and video t riggering LPR
Best Fit Applications
Parking entrances and exits, compounds, gated communities, toll gates and underground car parks.
Technical Specifications
| Model | DS-TCG406-E |
| Camera | |
| Max. Resolution | 2688 × 1520 |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON) B/W: 0.0001 Lux @ (F1.2, AGC ON) 0 Lux with IR |
| Shutter Time | 1/30 s to 1/100,000 s |
| Lens | |
| Lens Type | 2.8 to 12 mm 8 to 32 mm |
| Aperture | 2.8 to 12 mm: F1.2 to F2.5 8 to 32 mm: F1.7 to F1.73 |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FoV: 114.5° to 41.8°, vertical FoV: 59.3° to 23.6°, diagonal FoV: 141.1° to 48°, 8 to 32 mm, horizontal FoV: 42.5° to 15.1°, vertical FoV: 23.3° to 8.64°, diagonal FoV: 49.6° to 17.3° |
| Focus | Auto，Vari-focal lens, motor-driven lens |
| Illuminator | |
| Supplement Light Type | IR Light, Warm White Light |
| Supplement Light Range | Video: 2.8 mm to 12 mm: 25 m 8 mm to 32 mm: 50 m Vehicle License Plate: 2.8 mm to 12 mm: 10 m 8 mm to 32 mm: 20 m |
| IR Wavelength | Warm White Light 3000 K, IR Light 850 nm |
| IR Cut Filter | IR cut filter Blue glass module to reduce ghost phenomenon |
| Video | |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Frame Rate | 25 fps (P)/30 fps (N) |
| ROI | 8 regions respectively for main stream and sub-stream, 6 levels for each region. |
| Video Compression | Main stream: H.265/H.264/MJPEG, Sub-stream: H.265/H.264/MJPEG, |
| H.264 Type | Low profile Medium profile High Profile |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Bit Rate Type | Constant, Variable |
| Scalable Video Coding (SVC) | H.265 and H.264 encoding |
| Network | |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP Upload Picture, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SNMP, IGMP, QoS, IPv6, UDP, SSL/TLS, WebSocket,SRTP |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP, Otap, Guarding Vision Platform |
| Client | Hik-Central，SDKdemo，PMS Hik-Connect, |
| Web Browser | Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+ |
| Security | Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, |
| Image | |
| Image Format | JPEG |
| Wide Dynamic Range (WDR) | 140 dB |
| Image Settings | Saturation: 0 to 100 Brightness: 0 to 100 Contrast: 0 to 100 Gain: 0 to 100 3D DNR: Off, Normal, and Expert modes are selectable. White balance: White Balance 1 and White Balance 2 are selectable. |
| Image Parameters Switch | Yes |
| WDR Switch | On, Time, Brightness |
| Day/Night Switch | Supported |
| Interface | |
| Relay Output | 2-ch relay output, supporting opening and closing of barrier gates |
| Audio | 1 input (line in), 1 output (line out) |
| Alarm Input | 3-ch triggered inputs |
| Alarm Output | 1-ch alarm output |
| Wiegand | Supported: CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit |
| RS-232 | 1-ch RS-232 serial port |
| RS-485 | 1-ch RS-485 serial port |
| Memory Card Slot | 1 TF card slot, up to 1 TB |
| LPR Accuracy | Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98.5% Capture rate ≥99% Driving direction accuracy rate ≥98% |
| ANPR Supported Country/Regio n | 6 areas ( Asia, Africa, America, Europe, Oceania, Russian-Speaking Regions) and more than （Statistical 130+ countries/regions quantity includes baseline version and customized version.） Asia: Hong Kong( China), Macau( China), Taiwan( China), Japan, S |
| Event | |
| Smart Event | ANPR, Motor Vehicle Feature, Vehicle Color Recognition, Enable Vehicle Manufacturer Recognition |
| Deep Learning Function | |
| License Plate | Forward, Backward, Bidirection |
| Vehicle Type | Car/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle |
| Vehicle Color | Red, Yellow (including orange, golden), Green, Cyan, Blue, Purple, Pink, Brown, White, Gray (including silver), Black |
| Vehicle Brand | 84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Ro |
| Capture | |
| Trigger Type | Video Detection, I/O Coil, Radar Mixed Traffic |
| Picture Type | Scene Picture, Scene Picture + Close-up Picture |
| Scene Mode | Entrance & Exit Toll Gate, Underground Parking Entrance & Exit |
| Capture Type | Strobe Light Mode |
| Capture Resolution | 2688 × 1520 |
| LED Control | Supports automatic light control/time control of LEDs |
| Capture Picture Overlay | Location, Capture Time, Plate Number, Capture No., Vehicle Color Vehicle Type |
| Barrier Gate Control Mode | By Camera/Platform |
| Keep Boom Pole Open for Following Vehicle | Enable/Disable |
| Lock Barrier Gate for Large-Sized Vehicle | Yes |
| Barrier Gate Status | None, Barrier Gate Close In Place, Barrier Gate Open In Place, Remote Control Open In Place |
| Allowlist and Blocklist | Up to 100,000 allowlist and blocklist totally |
| General | |
| Power Supply | 12 to 24 VDC/PoE (802.3af, 44 V to 57 V), 300 mA to 230 mA |
| Working Consumption | 10 W Max. |
| Dimension | 415 mm × 145 mm × 145 mm (16.34 × 5.71 × 5.71 inch) |
| Protection | IK10 (IEC 62262: 2002), IP67 (IEC 60529-2013) |
| Weight | 3.25 kg (7.17 lb.) |
| With Package Weight | 4.3 kg (9.48 lb.) |
| Package Dimension | 465 mm × 200 mm × 198 mm (18.31 × 7.87 × 7.80 inch) |
| Storage Conditions | Temperature: -20 °C to 70 °C (- 4°F to 158 °F) Humidity: 95% (non-condensing) |
| Startup and Operating Conditions | Temperature: -30 °C to 70 °C (-22 °F to 158 °F) Humidity: 95% (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Tradition |
الخصائص
| Image Sensor | 1/1.8" Progressive Scan CMOS |
|---|---|
| Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON) B/W: 0.0001 Lux @ (F1.2, AGC ON) 0 Lux with IR |
| Shutter Time | 1/30 s to 1/100,000 s |
| Max. Resolution | 2688 × 1520 |
| Lens Type | 2.8 to 12 mm 8 to 32 mm |
| Aperture | 2.8 to 12 mm: F1.2 to F2.5 8 to 32 mm: F1.7 to F1.73 |
| Focus | Auto，Vari-focal lens, motor-driven lens |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FoV: 114.5° to 41.8°, vertical FoV: 59.3° to 23.6°, diagonal FoV: 141.1° to 48°, 8 to 32 mm, horizontal FoV: 42.5° to 15.1°, vertical FoV: 23.3° to 8.64°, diagonal FoV: 49.6° to 17.3° |
| Supplement Light Type | IR Light, Warm White Light |
| Supplement Light Range | Video: 2.8 mm to 12 mm: 25 m 8 mm to 32 mm: 50 m Vehicle License Plate: 2.8 mm to 12 mm: 10 m 8 mm to 32 mm: 20 m |
| IR Wavelength | Warm White Light 3000 K, IR Light 850 nm |
| IR Cut Filter | IR cut filter Blue glass module to reduce ghost phenomenon |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Video Compression | Main stream: H.265/H.264/MJPEG, Sub-stream: H.265/H.264/MJPEG, |
| H.264 Type | Low profile Medium profile High Profile |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Scalable Video Coding (SVC) | H.265 and H.264 encoding |
| Frame Rate | 25 fps (P)/30 fps (N) |
| ROI | 8 regions respectively for main stream and sub-stream, 6 levels for each region. |
| Bit Rate Type | Constant, Variable |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP, Otap, Guarding Vision Platform |
| Security | Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, |
| Client | Hik-Central，SDKdemo，PMS Hik-Connect, |
| Web Browser | Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+ |
| Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP Upload Picture, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SNMP, IGMP, QoS, IPv6, UDP, SSL/TLS, WebSocket,SRTP |
| Wide Dynamic Range (WDR) | 140 dB |
| Day/Night Switch | Supported |
| Image Parameters Switch | Yes |
| Image Settings | Saturation: 0 to 100 Brightness: 0 to 100 Contrast: 0 to 100 Gain: 0 to 100 3D DNR: Off, Normal, and Expert modes are selectable. White balance: White Balance 1 and White Balance 2 are selectable. |
| Image Format | JPEG |
| WDR Switch | On, Time, Brightness |
| Audio | 1 input (line in), 1 output (line out) |
| RS-485 | 1-ch RS-485 serial port |
| Wiegand | Supported: CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit |
| Relay Output | 2-ch relay output, supporting opening and closing of barrier gates |
| Alarm Input | 3-ch triggered inputs |
| Alarm Output | 1-ch alarm output |
| RS-232 | 1-ch RS-232 serial port |
| Memory Card Slot | 1 TF card slot, up to 1 TB |
| LPR Accuracy | Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98.5% Capture rate ≥99% Driving direction accuracy rate ≥98% |
| ANPR Supported Country/Regio n | 6 areas ( Asia, Africa, America, Europe, Oceania, Russian-Speaking Regions) and more than （Statistical 130+ countries/regions quantity includes baseline version and customized version.） Asia: Hong Kong( China), Macau( China), Taiwan( China), Japan, S |
| Smart Event | ANPR, Motor Vehicle Feature, Vehicle Color Recognition, Enable Vehicle Manufacturer Recognition |
| License Plate | Forward, Backward, Bidirection |
| Vehicle Type | Car/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle |
| Vehicle Color | Red, Yellow (including orange, golden), Green, Cyan, Blue, Purple, Pink, Brown, White, Gray (including silver), Black |
| Vehicle Brand | 84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Ro |
| Trigger Type | Video Detection, I/O Coil, Radar Mixed Traffic |
| Picture Type | Scene Picture, Scene Picture + Close-up Picture |
| Scene Mode | Entrance & Exit Toll Gate, Underground Parking Entrance & Exit |
| Capture Type | Strobe Light Mode |
| Capture Resolution | 2688 × 1520 |
| LED Control | Supports automatic light control/time control of LEDs |
| Capture Picture Overlay | Location, Capture Time, Plate Number, Capture No., Vehicle Color Vehicle Type |
| Barrier Gate Control Mode | By Camera/Platform |
| Keep Boom Pole Open for Following Vehicle | Enable/Disable |
| Lock Barrier Gate for Large-Sized Vehicle | Yes |
| Barrier Gate Status | None, Barrier Gate Close In Place, Barrier Gate Open In Place, Remote Control Open In Place |
| Allowlist and Blocklist | Up to 100,000 allowlist and blocklist totally |
| Startup and Operating Conditions | Temperature: -30 °C to 70 °C (-22 °F to 158 °F) Humidity: 95% (non-condensing) |
| Power Supply | 12 to 24 VDC/PoE (802.3af, 44 V to 57 V), 300 mA to 230 mA |
| Protection | IK10 (IEC 62262: 2002), IP67 (IEC 60529-2013) |
| Dimension | 415 mm × 145 mm × 145 mm (16.34 × 5.71 × 5.71 inch) |
| Weight | 3.25 kg (7.17 lb.) |
| Package Dimension | 465 mm × 200 mm × 198 mm (18.31 × 7.87 × 7.80 inch) |
| With Package Weight | 4.3 kg (9.48 lb.) |
| Storage Conditions | Temperature: -20 °C to 70 °C (- 4°F to 158 °F) Humidity: 95% (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Tradition |
| Working Consumption | 10 W Max. |
![[DS-2CD2087G3-LIY] Hikvision DS-2CD2087G3-LIY 8 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera](/web/image/product.template/2982/image_512)
![[DS-2CD2347G2H-LI] Hikvision DS-2CD2347G2H-LI 4 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera](/web/image/product.template/2963/image_512)
![[DS-2CD2367G2P-LSU/SL] Hikvision DS-2CD2367G2P-LSU/SL 6 MP Panoramic Fixed Turret Network Camera](/web/image/product.template/2959/image_512)
![[DS-2CD2625FHWD-IZS] Hikvision DS-2CD2625FHWD-IZS 2 MP IR Varifocal Bullet Network Camera](/web/image/product.template/2955/image_512)
![[DS-2CD2665G0-IZS] Hikvision DS-2CD2665G0-IZS 6 MP IR Varifocal Bullet Network Camera](/web/image/product.template/2954/image_512)
![[DS-2CD2T83G2-2I] Hikvision DS-2CD2T83G2-2I 8 MP AcuSense Fixed Bullet Network Camera](/web/image/product.template/2956/image_512)
![[DS-2CD3043G2-IU] Hikvision DS-2CD3043G2-IU 4 MP WDR Fixed Bullet Network Camera](/web/image/product.template/2989/image_512)
![[DS-2CD3051G0-I] Hikvision DS-2CD3051G0-I 5 MP IR Fixed Bullet Network Camera](/web/image/product.template/2991/image_512)
![[DS-TCG406-E] Hikvision DS-TCG406-E 4 MP Access ANPR Camera](/web/image/product.template/2968/image_256)
هل تحتاج مساعدة في الاختيار؟
هل تريد معرفة المزيد؟
تحدث مع مختص من Do Link لتحديد المواصفات المناسبة، والتكامل، والدعم الميداني.
