كود المنتج:
DS-K7P03A

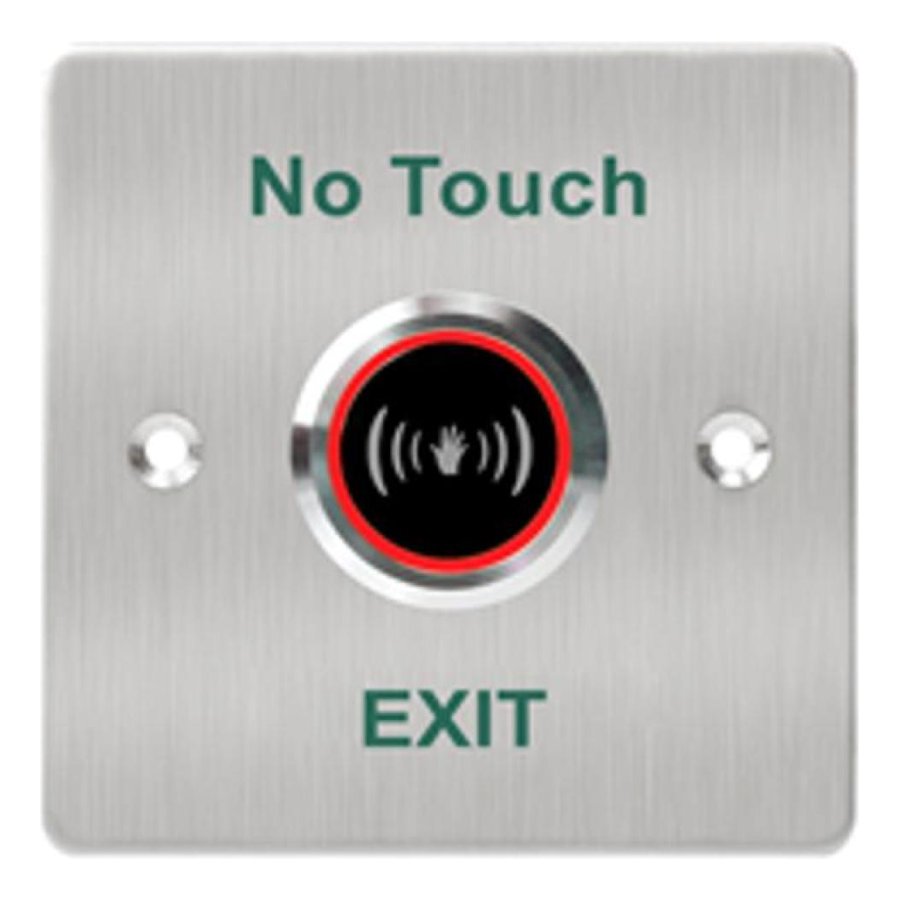

Hikvision DS-K7P03A Touchless Exit & Emergency Push Button
Hikvision DS-K7P03A Touchless Exit & Emergency Push Button من منتجات جهاز تحكم في الدخول. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A Hikvision access control product for secure door entry and attendance systems.
- Touchless infrared exit button with emergency release
- Stainless steel panel
- NO/NC/COM signal output
- 12-24 VDC power supply
- Fits narrow doorframes (86 × 86 mm)
عام
| الموديل | DS-K7P03A |
|---|
Key Features
- Touchless infrared exit button with emergency release
- Stainless steel panel
- NO/NC/COM signal output
- 12-24 VDC power supply
- Fits narrow doorframes (86 × 86 mm)
- Passed 1 million times aging test
Best Fit Applications
Offices, companies, factories, schools, hospitals, residential buildings and server rooms.
Technical Specifications
| Model | DS-K7P03A |
|---|---|
| Power Supply | 12-24 VDC, 1 A |
| Signal Output | NO/NC/COM contact |
| Door Type | All kinds of narrow doorframes |
| Material | Panel: stainless steel |
| Aging Test | Passed 1 million times aging test |
| Working Temperature | -20 °C to 50 °C (-4 °F to 122 °F) |
| Working Humidity | 0 % to 95 % (no condensing) |
| Dimensions | 86 mm × 86 mm × 25 mm (3.39" × 3.39" × 1.01") |
