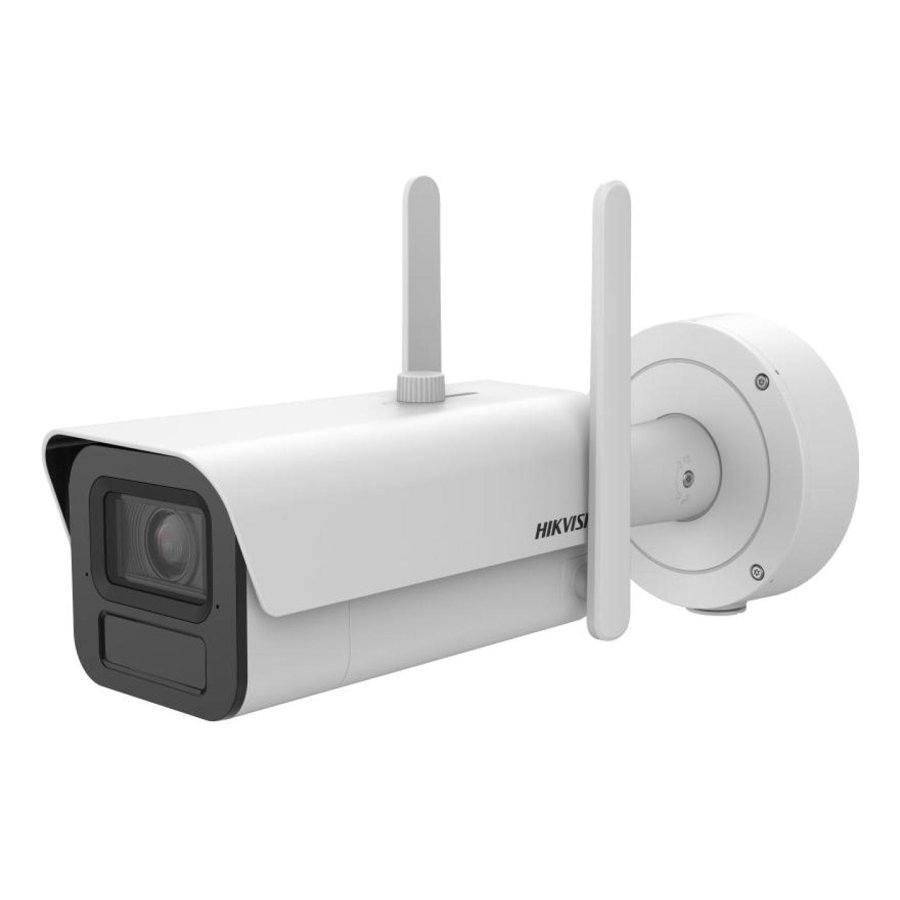

Hikvision iDS-2CD7A46G2/P-IZHS 4 MP 4G DeepinView ANPR Moto Varifocal Bullet Camera

• Image Sensor
  • 1/1.8" Progressive Scan CMOS
• Min. Illumination
  • Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
• Shutter Time
  • 1 s to 1/100,000 s
• Day & Night
  • IR cut filter, Blue glass module (less ghost phenomenon)
• Max. Resolution
  • 2688 × 1520
• Aperture
  • 2.8 to 12 mm: F1.38 to F2.53, 8 to 32 mm: F1.7 to F1.73, 10 to 50 mm: F1.38-F1.56
• Focus
  • Auto,Semi-auto,Manual
• Focal Length & FOV
  • 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1° 8 to 32 mm, horizontal FOV 42.5° to 15.2°, vertical FOV 23.4° to 8.7°, diagonal FOV 49.7° to 17.3° 10 to 50 mm, horizontal FOV 41.5° to 9.3°, vert
• Iris Type
  • P-iris
• Supplement Light Type
  • IR
• Supplement Light Range
  • 2.8 to 12 mm: Monitoring: 60 m; 8 to 32 mm: Monitoring: 100 m; 10 to 50 mm: Monitoring: 100 m
• Smart Supplement Light
  • Yes
• IR Wavelength
  • 850 nm
• Video Bit Rate
  • 32 Kbps to 8 Mbps
• Video Compression
  • Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG
• H.264 Type
  • Baseline Profile,Main Profile,High Profile
• H.265 Type
  • Main Profile
• Main Stream
  • Monitoring mode: 50 Hz: up to 50 fps (2688 × 1520, 1280 × 720), up to 100 fps (1920 × 1080) 60 Hz: up to 60 fps (2688 × 1520, 1280 × 720), up to 120 fps (1920 × 1080) *High frame rate is supported under monitoring mode only. smart mode: 50 Hz: 25 fps
• Third Stream
  • 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Sub-Stream
  • 50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
• Bit Rate Control
  • CBR,VBR
• Scalable Video Coding (SVC)
  • H.264 and H.265 encoding
• Region of Interest (ROI)
  • 4 fixed regions for each stream
• Fourth Stream
  • 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
• Target Cropping
  • Yes
• Fifth Stream
  • 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
• Guanlan AI Encoding
  • Yes
• Environment Noise Filtering
  • Yes
• Audio Sampling Rate
  • 8 kHz/16 kHz/32 kHz/48 kHz
• Audio Compression
  • G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate
  • 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Type
  • Mono sound
• Network Storage
  • NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported., Cloud Storage
• Protocols
  • TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, SRTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, WebSocket, WebSockets，MQTT/MQTTS, RTMP. Support X.509 authentication， Support802.1xEAP-GTC and MSCHAP V
• API
  • ISAPI,SDK,ISUP,OTAP,ONVIF (Profile S, Profile G, Profile T, Profile M)
• Security
  • Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Inter
• Simultaneous Live View
  • Up to 20 channels
• User/Host
  • Up to 32 users 3 user levels: administrator, operator, and user
• Client
  • iVMS-4200,Hik-Connect,Hik-Central
• Web Browser
  • Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Smooth Streaming
  • Yes
• Standard
  • LTE-TDD/LTE-FDD/WCDMA/GSM
• Frequency
  • /LA： LTE-TDD: Band38/40 LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66 WCDMA: Band1/2/3/4/5/8 GSM: 850/900/1800/1900 MHz other： LTE-TDD: Band38/40/41 LTE-FDD: Band1/3/5/7/8/20/28 WCDMA: Band1/5/8 GSM: 850/900/1800 MHz
• SIM Card Type
  • Nano SIM
• Wide Dynamic Range (WDR)
  • 150 dB
• Image Enhancement
  • BLC,HLC,3D DNR,Distortion Correction,Defog
• Day/Night Switch
  • Day,Night,Auto,Schedule,Alarm Trigger
• Image Parameters Switch
  • Yes
• Image Settings
  • Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
• SNR
  • ≥ 52 dB
• Privacy Mask
  • 8 programmable polygon privacy masks
• Picture Overlay
  • LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
• Image Stabilization
  • EIS
• Audio
  • 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω
• Alarm
  • 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
• Video Output
  • 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
• On-Board Storage
  • Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
• Reset Key
  • Yes
• Ethernet Interface
  • 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
• Power Output
  • -Y: 12 VDC, max. 100 mA
• RS-485
  • -Y: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Wiegand
  • -Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit)
• Smart Event
  • Line crossing detection, intrusion detection, region entrance detection, region exiting detection
• Basic Event
  • Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),glass break detection,scream detection,gunshot a
• Linkage
  • Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,trigger alarm output,send email,audible warning,HTTP custom alarm
• Deep Learning Structure
  • Caffe,PyTorch,TensorFlow
• Perimeter Protection
  • Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Support combined event alarm triggering
• Metadata
  • Intrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic
• Vehicle Event Detection
  • Supports Parking Detection and Congestion Detection Supports Vehicle Statistics to count the number of vehicles staying within the detection area. Suppots real-time upload data, and OSD overlay.
• المادة
  • Aluminum alloy body
• Power
  • -Y: three-core terminal block, 12 VDC ± 20%, 1.95 A, max. 23.4 W, 24 VAC ± 20%, 1.66 A, max. 23.8 W, Without -Y: 12 VDC ± 20%, 1.91 A, max. 22.9 W, 24 VAC ± 20%, 1.45 A, max. 22.9 W,
• e-PTZ
  • Support Patrol and Auto Tracking settings
• Road Traffic and Vehicle Detection
  • Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Bl
• Parking Management
  • Support distant view mode and close view mode Distant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarm Close view mode: support status detection on up to 4 parking spaces, lice
• AcuSeek
  • Support searching for humans, license plates, vehicles, non-motorized vehicles, and animals and uploading the feature information. This function requires use with AcuSeek NVR/Servers.
