كود المنتج:
iDS-2CD7A46G2/P-IZHS

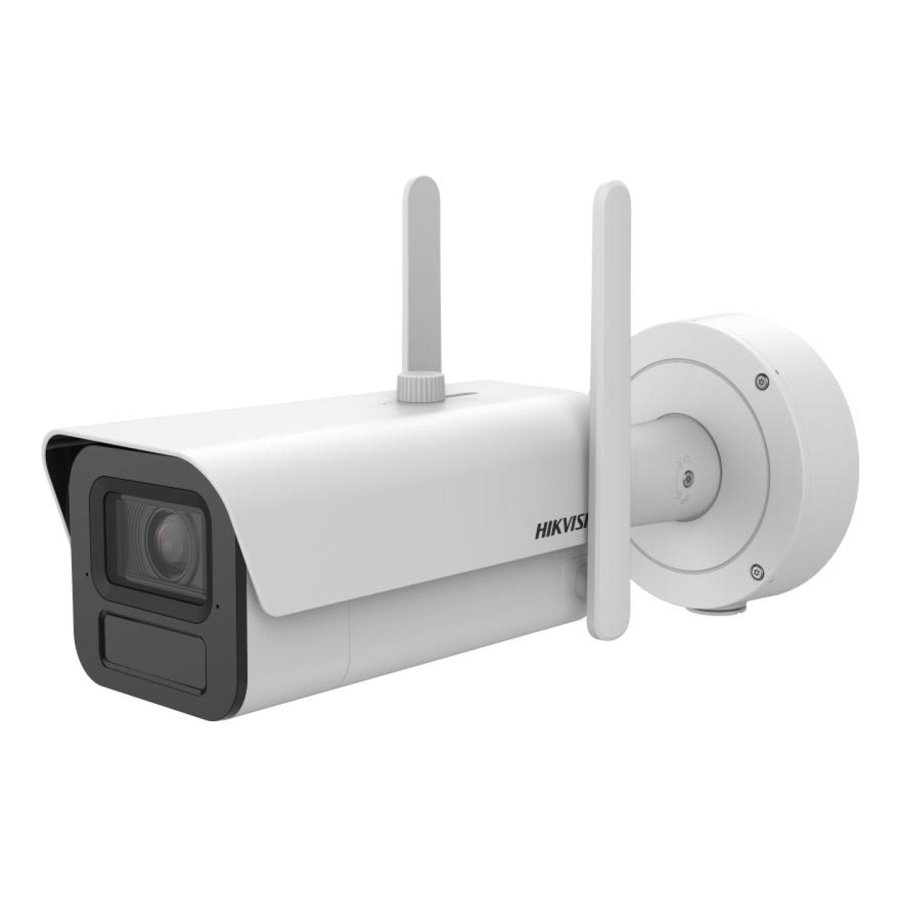

Hikvision iDS-2CD7A46G2/P-IZHS 4 MP 4G DeepinView ANPR Moto Varifocal Bullet Camera
Hikvision iDS-2CD7A46G2/P-IZHS 4 MP 4G DeepinView ANPR Moto Varifocal Bullet Camera من منتجات كاميرا مراقبة IP. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A Hikvision ANPR camera that recognises vehicle license plates for automatic entrance and exit control.
- High quality imaging with 4 MP resolution
- Excellent low-light performance via DarkFighter 2.0 technology
- Clear imaging against strong back light due to 150 dB AWDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
4MP Super HD
H.265+ Smart Codec
IR Night Vision
AI Human & Vehicle
LPR Plate Recognition
4G SIM Card
| Image Sensor: 1/1.8" Progressive Scan CMOS |
| Min. Illumination: Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR |
| Shutter Time: 1 s to 1/100,000 s |
| Day & Night: IR cut filter, Blue glass module (less ghost phenomenon) |
| Max. Resolution: 2688 × 1520 |
| Aperture: 2.8 to 12 mm: F1.38 to F2.53, 8 to 32 mm: F1.7 to F1.73, 10 to 50 mm: F1.38-F1.56 |
| Focus: Auto,Semi-auto,Manual |
| Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1° 8 to 32 mm, horizontal FOV 42.5° to 15.2°, vertical FOV 23.4° to 8.7°, diagonal FOV 49.7° to 17.3° 10 to 50 mm, horizontal FOV 41.5° to 9.3°, vert |
| Iris Type: P-iris |
| Supplement Light Type: IR |
| Supplement Light Range: 2.8 to 12 mm: Monitoring: 60 m; 8 to 32 mm: Monitoring: 100 m; 10 to 50 mm: Monitoring: 100 m |
| Smart Supplement Light: Yes |
| IR Wavelength: 850 nm |
| Video Bit Rate: 32 Kbps to 8 Mbps |
| Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG |
| H.264 Type: Baseline Profile,Main Profile,High Profile |
| H.265 Type: Main Profile |
| Main Stream: Monitoring mode: 50 Hz: up to 50 fps (2688 × 1520, 1280 × 720), up to 100 fps (1920 × 1080) 60 Hz: up to 60 fps (2688 × 1520, 1280 × 720), up to 120 fps (1920 × 1080) *High frame rate is supported under monitoring mode only. smart mode: 50 Hz: 25 fps |
| Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Sub-Stream: 50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480) |
| Bit Rate Control: CBR,VBR |
| Scalable Video Coding (SVC): H.264 and H.265 encoding |
| Region of Interest (ROI): 4 fixed regions for each stream |
| Fourth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Target Cropping: Yes |
| Fifth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Guanlan AI Encoding: Yes |
| Environment Noise Filtering: Yes |
| Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz |
| Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Type: Mono sound |
| Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported., Cloud Storage |
| Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, SRTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, WebSocket, WebSockets，MQTT/MQTTS, RTMP. Support X.509 authentication， Support802.1xEAP-GTC and MSCHAP V |
| API: ISAPI,SDK,ISUP,OTAP,ONVIF (Profile S, Profile G, Profile T, Profile M) |
| Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Inter |
| Simultaneous Live View: Up to 20 channels |
| User/Host: Up to 32 users 3 user levels: administrator, operator, and user |
| Client: iVMS-4200,Hik-Connect,Hik-Central |
| Web Browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Smooth Streaming: Yes |
| Standard: LTE-TDD/LTE-FDD/WCDMA/GSM |
| Frequency: /LA： LTE-TDD: Band38/40 LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66 WCDMA: Band1/2/3/4/5/8 GSM: 850/900/1800/1900 MHz other： LTE-TDD: Band38/40/41 LTE-FDD: Band1/3/5/7/8/20/28 WCDMA: Band1/5/8 GSM: 850/900/1800 MHz |
| SIM Card Type: Nano SIM |
| Wide Dynamic Range (WDR): 150 dB |
| Image Enhancement: BLC,HLC,3D DNR,Distortion Correction,Defog |
| Day/Night Switch: Day,Night,Auto,Schedule,Alarm Trigger |
| Image Parameters Switch: Yes |
| Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser |
| SNR: ≥ 52 dB |
| Privacy Mask: 8 programmable polygon privacy masks |
| Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
| Image Stabilization: EIS |
| Audio: 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω |
| Alarm: 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A) |
| Video Output: 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging) |
| On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB |
| Reset Key: Yes |
| Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
| Power Output: -Y: 12 VDC, max. 100 mA |
| RS-485: -Y: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Wiegand: -Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit) |
| Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection |
| Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),glass break detection,scream detection,gunshot a |
| Linkage: Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,trigger alarm output,send email,audible warning,HTTP custom alarm |
| Deep Learning Structure: Caffe,PyTorch,TensorFlow |
| Perimeter Protection: Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Support combined event alarm triggering |
| Metadata: Intrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic |
| Vehicle Event Detection: Supports Parking Detection and Congestion Detection Supports Vehicle Statistics to count the number of vehicles staying within the detection area. Suppots real-time upload data, and OSD overlay. |
| المادة : Aluminum alloy body |
| Power: -Y: three-core terminal block, 12 VDC ± 20%, 1.95 A, max. 23.4 W, 24 VAC ± 20%, 1.66 A, max. 23.8 W, Without -Y: 12 VDC ± 20%, 1.91 A, max. 22.9 W, 24 VAC ± 20%, 1.45 A, max. 22.9 W, |
| e-PTZ: Support Patrol and Auto Tracking settings |
| Road Traffic and Vehicle Detection: Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Bl |
| Parking Management: Support distant view mode and close view mode Distant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarm Close view mode: support status detection on up to 4 parking spaces, lice |
| AcuSeek: Support searching for humans, license plates, vehicles, non-motorized vehicles, and animals and uploading the feature information. This function requires use with AcuSeek NVR/Servers. |
عام
| الموديل | iDS-2CD7A46G2/P-IZHS |
|---|
Key Features
- High quality imaging with 4 MP resolution
- Excellent low-light performance via DarkFighter 2.0 technology
- Clear imaging against strong back light due to 150 dB AWDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional)
- High frame rate, up to 2MP@120fps and 4MP@60fps
Best Fit Applications
Parking entrances and exits, compounds, gated communities, toll gates and underground car parks.
Technical Specifications
| Model | iDS-2CD7A46G2/P-IZHS |
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter, Blue glass module (less ghost phenomenon) |
| Lens | |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1° 8 to 32 mm, horizontal FOV 42.5° to 15.2°, vertical FOV 23.4° to 8.7°, diagonal FOV 49.7° to 17.3° 10 to 50 mm, horizontal FOV 41.5° to 9.3°, vert |
| Focus | Auto,Semi-auto,Manual |
| Iris Type | P-iris |
| Aperture | 2.8 to 12 mm: F1.38 to F2.53, 8 to 32 mm: F1.7 to F1.73, 10 to 50 mm: F1.38-F1.56 |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | 2.8 to 12 mm: Monitoring: 60 m; 8 to 32 mm: Monitoring: 100 m; 10 to 50 mm: Monitoring: 100 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | Monitoring mode: 50 Hz: up to 50 fps (2688 × 1520, 1280 × 720), up to 100 fps (1920 × 1080) 60 Hz: up to 60 fps (2688 × 1520, 1280 × 720), up to 120 fps (1920 × 1080) *High frame rate is supported under monitoring mode only. smart mode: 50 Hz: 25 fps |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fourth Stream | 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Fifth Stream | 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR,VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 4 fixed regions for each stream |
| Target Cropping | Yes |
| e-PTZ | Support Patrol and Auto Tracking settings |
| Guanlan AI Encoding | Yes |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, SRTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, WebSocket, WebSockets，MQTT/MQTTS, RTMP. Support X.509 authentication， Support802.1xEAP-GTC and MSCHAP V |
| Simultaneous Live View | Up to 20 channels |
| API | ISAPI,SDK,ISUP,OTAP,ONVIF (Profile S, Profile G, Profile T, Profile M) |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Smooth Streaming | Yes |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Inter |
| Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported., Cloud Storage |
| Client | iVMS-4200,Hik-Connect,Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Standard | LTE-TDD/LTE-FDD/WCDMA/GSM |
| Frequency | /LA： LTE-TDD: Band38/40 LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66 WCDMA: Band1/2/3/4/5/8 GSM: 850/900/1800/1900 MHz other： LTE-TDD: Band38/40/41 LTE-FDD: Band1/3/5/7/8/20/28 WCDMA: Band1/5/8 GSM: 850/900/1800 MHz |
| SIM Card Type | Nano SIM |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule,Alarm Trigger |
| Wide Dynamic Range (WDR) | 150 dB |
| Image Enhancement | BLC,HLC,3D DNR,Distortion Correction,Defog |
| Privacy Mask | 8 programmable polygon privacy masks |
| SNR | ≥ 52 dB |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
| Image Stabilization | EIS |
| Interface | |
| Video Output | 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging) |
| Ethernet Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB |
| Alarm | 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A) |
| Audio | 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω |
| RS-485 | -Y: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset Key | Yes |
| Power Output | -Y: 12 VDC, max. 100 mA |
| Wiegand | -Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit) |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),glass break detection,scream detection,gunshot a |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,trigger alarm output,send email,audible warning,HTTP custom alarm |
| Deep Learning Function | |
| Deep Learning Structure | Caffe,PyTorch,TensorFlow |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Support combined event alarm triggering |
| Metadata | Intrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic |
| Vehicle Event Detection | Supports Parking Detection and Congestion Detection Supports Vehicle Statistics to count the number of vehicles staying within the detection area. Suppots real-time upload data, and OSD overlay. |
| General | |
| Road Traffic and Vehicle Detection | Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Bl |
| Parking Management | Support distant view mode and close view mode Distant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarm Close view mode: support status detection on up to 4 parking spaces, lice |
| AcuSeek | Support searching for humans, license plates, vehicles, non-motorized vehicles, and animals and uploading the feature information. This function requires use with AcuSeek NVR/Servers. |
| Power | -Y: three-core terminal block, 12 VDC ± 20%, 1.95 A, max. 23.4 W, 24 VAC ± 20%, 1.66 A, max. 23.8 W, Without -Y: 12 VDC ± 20%, 1.91 A, max. 22.9 W, 24 VAC ± 20%, 1.45 A, max. 22.9 W, |
| Material | Aluminum alloy body |
الخصائص
| Image Sensor | 1/1.8" Progressive Scan CMOS |
|---|---|
| Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter, Blue glass module (less ghost phenomenon) |
| Max. Resolution | 2688 × 1520 |
| Aperture | 2.8 to 12 mm: F1.38 to F2.53, 8 to 32 mm: F1.7 to F1.73, 10 to 50 mm: F1.38-F1.56 |
| Focus | Auto,Semi-auto,Manual |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1° 8 to 32 mm, horizontal FOV 42.5° to 15.2°, vertical FOV 23.4° to 8.7°, diagonal FOV 49.7° to 17.3° 10 to 50 mm, horizontal FOV 41.5° to 9.3°, vert |
| Iris Type | P-iris |
| Supplement Light Type | IR |
| Supplement Light Range | 2.8 to 12 mm: Monitoring: 60 m; 8 to 32 mm: Monitoring: 100 m; 10 to 50 mm: Monitoring: 100 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
| Main Stream | Monitoring mode: 50 Hz: up to 50 fps (2688 × 1520, 1280 × 720), up to 100 fps (1920 × 1080) 60 Hz: up to 60 fps (2688 × 1520, 1280 × 720), up to 120 fps (1920 × 1080) *High frame rate is supported under monitoring mode only. smart mode: 50 Hz: 25 fps |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480) |
| Bit Rate Control | CBR,VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 4 fixed regions for each stream |
| Fourth Stream | 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Target Cropping | Yes |
| Fifth Stream | 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Guanlan AI Encoding | Yes |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/48 kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Type | Mono sound |
| Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported., Cloud Storage |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, SRTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, WebSocket, WebSockets，MQTT/MQTTS, RTMP. Support X.509 authentication， Support802.1xEAP-GTC and MSCHAP V |
| API | ISAPI,SDK,ISUP,OTAP,ONVIF (Profile S, Profile G, Profile T, Profile M) |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Inter |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Client | iVMS-4200,Hik-Connect,Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Smooth Streaming | Yes |
| Standard | LTE-TDD/LTE-FDD/WCDMA/GSM |
| Frequency | /LA： LTE-TDD: Band38/40 LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66 WCDMA: Band1/2/3/4/5/8 GSM: 850/900/1800/1900 MHz other： LTE-TDD: Band38/40/41 LTE-FDD: Band1/3/5/7/8/20/28 WCDMA: Band1/5/8 GSM: 850/900/1800 MHz |
| SIM Card Type | Nano SIM |
| Wide Dynamic Range (WDR) | 150 dB |
| Image Enhancement | BLC,HLC,3D DNR,Distortion Correction,Defog |
| Day/Night Switch | Day,Night,Auto,Schedule,Alarm Trigger |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser |
| SNR | ≥ 52 dB |
| Privacy Mask | 8 programmable polygon privacy masks |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
| Image Stabilization | EIS |
| Audio | 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω |
| Alarm | 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A) |
| Video Output | 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging) |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB |
| Reset Key | Yes |
| Ethernet Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
| Power Output | -Y: 12 VDC, max. 100 mA |
| RS-485 | -Y: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Wiegand | -Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit) |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),glass break detection,scream detection,gunshot a |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,trigger alarm output,send email,audible warning,HTTP custom alarm |
| Deep Learning Structure | Caffe,PyTorch,TensorFlow |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Support combined event alarm triggering |
| Metadata | Intrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic |
| Vehicle Event Detection | Supports Parking Detection and Congestion Detection Supports Vehicle Statistics to count the number of vehicles staying within the detection area. Suppots real-time upload data, and OSD overlay. |
| المادة | Aluminum alloy body |
| Power | -Y: three-core terminal block, 12 VDC ± 20%, 1.95 A, max. 23.4 W, 24 VAC ± 20%, 1.66 A, max. 23.8 W, Without -Y: 12 VDC ± 20%, 1.91 A, max. 22.9 W, 24 VAC ± 20%, 1.45 A, max. 22.9 W, |
| e-PTZ | Support Patrol and Auto Tracking settings |
| Road Traffic and Vehicle Detection | Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Bl |
| Parking Management | Support distant view mode and close view mode Distant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarm Close view mode: support status detection on up to 4 parking spaces, lice |
| AcuSeek | Support searching for humans, license plates, vehicles, non-motorized vehicles, and animals and uploading the feature information. This function requires use with AcuSeek NVR/Servers. |
![[DS-2CD2087G3-LIY] Hikvision DS-2CD2087G3-LIY 8 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera](/web/image/product.template/2982/image_512)
![[DS-2CD2347G2H-LI] Hikvision DS-2CD2347G2H-LI 4 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera](/web/image/product.template/2963/image_512)
![[DS-2CD2367G2P-LSU/SL] Hikvision DS-2CD2367G2P-LSU/SL 6 MP Panoramic Fixed Turret Network Camera](/web/image/product.template/2959/image_512)
![[DS-2CD2625FHWD-IZS] Hikvision DS-2CD2625FHWD-IZS 2 MP IR Varifocal Bullet Network Camera](/web/image/product.template/2955/image_512)
![[DS-2CD2665G0-IZS] Hikvision DS-2CD2665G0-IZS 6 MP IR Varifocal Bullet Network Camera](/web/image/product.template/2954/image_512)
![[DS-2CD2T83G2-2I] Hikvision DS-2CD2T83G2-2I 8 MP AcuSense Fixed Bullet Network Camera](/web/image/product.template/2956/image_512)
![[DS-2CD3043G2-IU] Hikvision DS-2CD3043G2-IU 4 MP WDR Fixed Bullet Network Camera](/web/image/product.template/2989/image_512)
![[DS-2CD3051G0-I] Hikvision DS-2CD3051G0-I 5 MP IR Fixed Bullet Network Camera](/web/image/product.template/2991/image_512)
![[iDS-2CD7A46G2/P-IZHS] Hikvision iDS-2CD7A46G2/P-IZHS 4 MP 4G DeepinView ANPR Moto Varifocal Bullet Camera](/web/image/product.template/2961/image_256)
هل تحتاج مساعدة في الاختيار؟
هل تريد معرفة المزيد؟
تحدث مع مختص من Do Link لتحديد المواصفات المناسبة، والتكامل، والدعم الميداني.
