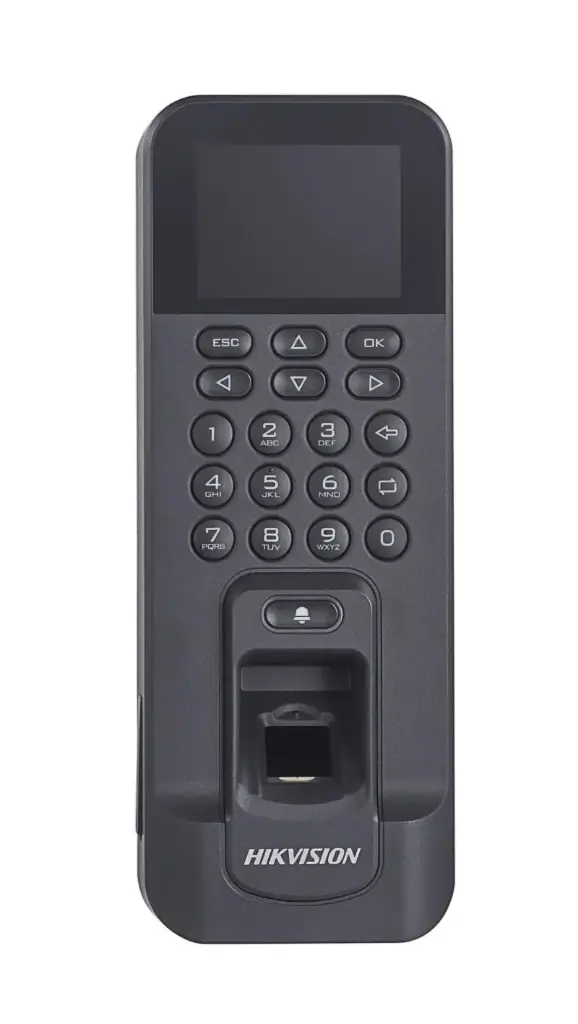

Hikvision K1T804A Pro Series Fingerprint Terminal
Hikvision K1T804A Pro Series Fingerprint Terminal (DS-K1T804AMF) مناسب لمشروعات Access Control التي تحتاج إلى مواصفات واضحة وتوافق عملي مع أنظمة المراقبة أو الشبكات أو التحكم في الدخول، مع دعم دو لينك في مصر.
DS-K1T804AMF
Pro Series Fingerprint Terminal
- Integrated management of access control and the time and attendance functions
- 3,000 fingerprints, 3,000 cards and 100,000 events storage
- Built-in card reader for Mifare1 card
- Communication via TCP/TP and Wi-Fi
- RS-485, wiegand interface
- Alarm input and output interface
- ISUP5.0, ISAPI
عام
| الموديل | DS-K1T804AMF |
|---|
- Screen size2.4-inch
- Resolution320 × 240
- TypeLCD-TFT display screen
- Audio
- Audio output1 loudspeaker, 1 buzzer
- Network
- Wired networkTCP/IP, 10/100Mbps, self-adaptive
- Wi-FiSupport
- Interface
- Network interface1
- RS-4851
- Wiegand1
- Lock control1
- Exit button1
- Door contact input1
- Alarm input1
- Alarm output1
- TAMPER1
- USB1
- Capacity
- Card capacity3000
- Fingerprint capacity3000
- Event capacity100,000
- Authentication
- Card typeM1 card
- Card reading distance0 to 4.5 cm
- Card reading duration＜ 1 s
- Fingerprint moduleOptical fingerprint module
- Fingerprint comparing mode1:1 and 1:N
- Fingerprint recognition duration＜ 1 s
- General
- IndicatorPower/status (red/green)
- Power supply12 VDC/1 A
- Working temperature-10 °C to +55 °C (14 °F to +131 °F)
- Working humidity10% to 90% (no condensing)
- ColorBlack (included), gold (optional), silver (optional), white (optional)
- Dimensions205 mm × 76.5 mm × 37 mm (8.07" × 3.01" × 1.46")
- InstallationSurface mounting
- LanguageEnglish, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
![[DS-K1T804AMF] Hikvision K1T804A Pro Series Fingerprint Terminal](/web/image/product.template/1867/image_256)
