EZVIZ HP4 Video Wireless Doorbell Peephole Viewer 155° 1080p 4.3" Color Screen Night Vision Up To 3M
EZVIZ HP4 Video Wireless Doorbell Peephole Viewer 155° 1080p 4.3" Color Screen Night Vision Up To 3M (HP4 1080P) مناسب لمشروعات WIFI CAMERA التي تحتاج إلى مواصفات واضحة وتوافق عملي مع أنظمة المراقبة أو الشبكات أو التحكم في الدخول، مع دعم دو لينك في مصر.
HP4 1080P
- Wifi connection
- Night Vision Up to 3m
- 1080p resolution
- Built-in electronic doorbell
- 155° Ultra Wide Viewing Angle
عام
| الموديل | HP4 1080P |
|---|
| Model | CS-HP4 |
| Installation Parameters | |
| Supportive Hole Diameter | 15.5 to 50 mm |
| Supportive Door Diameter | 35 to 105 mm (1.38 to 4.13 inch) |
| Camera Parameters | |
| Sensor | 1/3" Progressive Scan CMOS |
| Lens | 2.0 mm @ F2.2, visual angle (diagonal):155° |
| Day/Night Switch | ICR infrared filter |
| IR Distance | Max. 3 m |
| Max. Resolution | 1080p / 2MP |
| Video Frame Rate | 15fps |
| Interface | |
| Storage Interface | MicroSD card slot (max. 512 GB) |
| Audio Input | Built-in high sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Buttons | Doorbell button, power button, Screen wake up button |
| Network | |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Video Intercom | Local and remote video intercom |
| General Function | Cloud video encryption and image encryption |
| Wireless | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmission Rate | 11b: 11Mbps, 11g :54Mbps, 11n :150Mbps |
| General | |
| Screen | 4.3-inch color screen |
| Color | Black |
| Operating Conditions | -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less |
| Power Supply | DC5V±10% |
| Power Consumption | Max. 2.2W |
| Dimension | Screen and Base: 115.5 × 85.5 × 24.5 mm (4.55 × 3.37 × 0.96 inch) |
| Peephole Doorbell: 71 × 71 × 48.3 mm (2.80 × 2.80 × 1.90 inch) | |
| Weight | 302 g (10.65 oz) |
| In the box | |
| In the box | - HP4 Peephole Doorbell |
| - Panel | |
| - Mounting Base | |
| - Power Cable (1 m / 3.3 ft) | |
| - Screws × 6 | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | UL / CE / WEEE / REACH / RoHS |
لا توجد ملفات PDF أو روابط خارجية مرفقة بهذا المنتج حتى الآن.

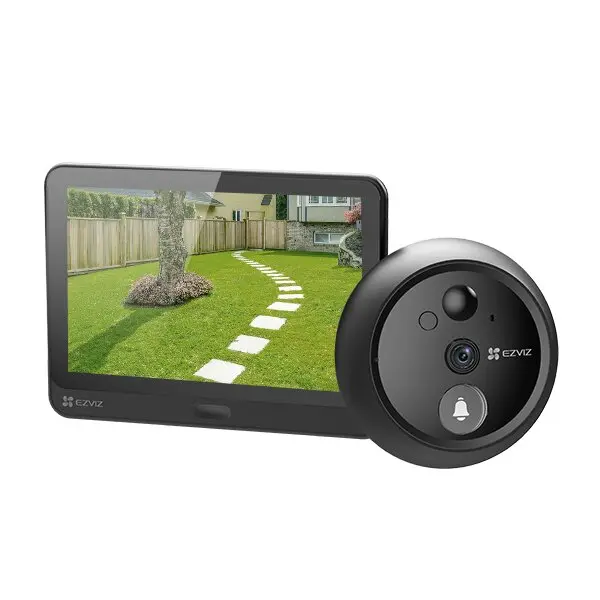

![[HP4 1080P] EZVIZ HP4 Video Wireless Doorbell Peephole Viewer 155° 1080p 4.3" Color Screen Night Vision Up To 3M](/web/image/product.template/2035/image_256)
