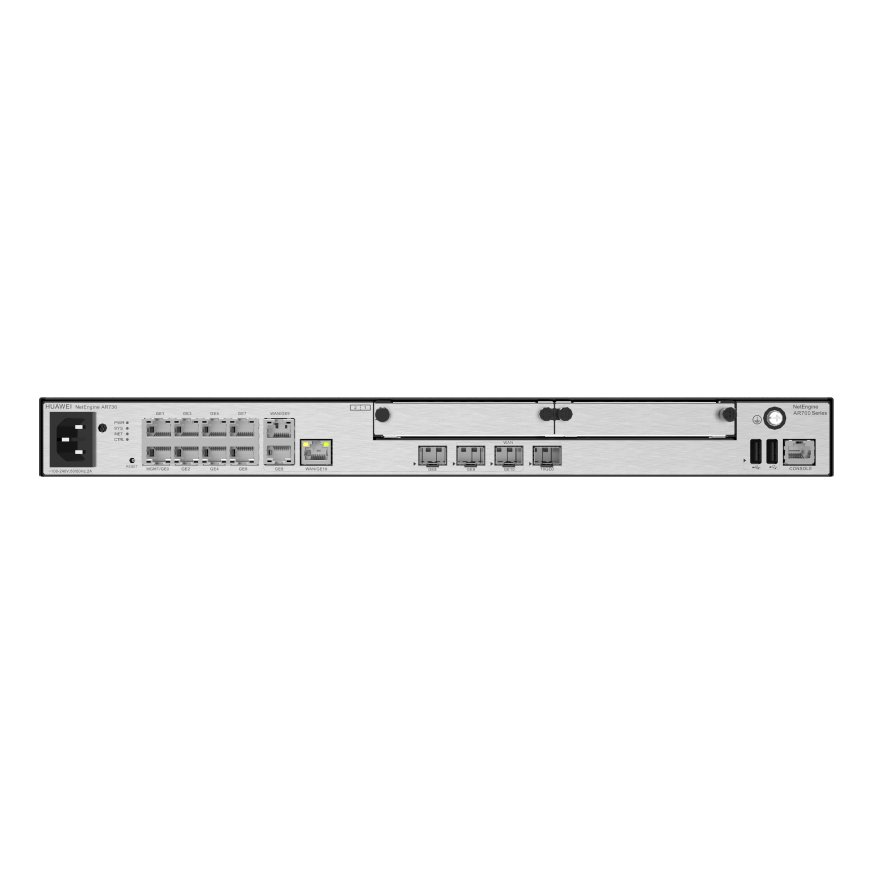

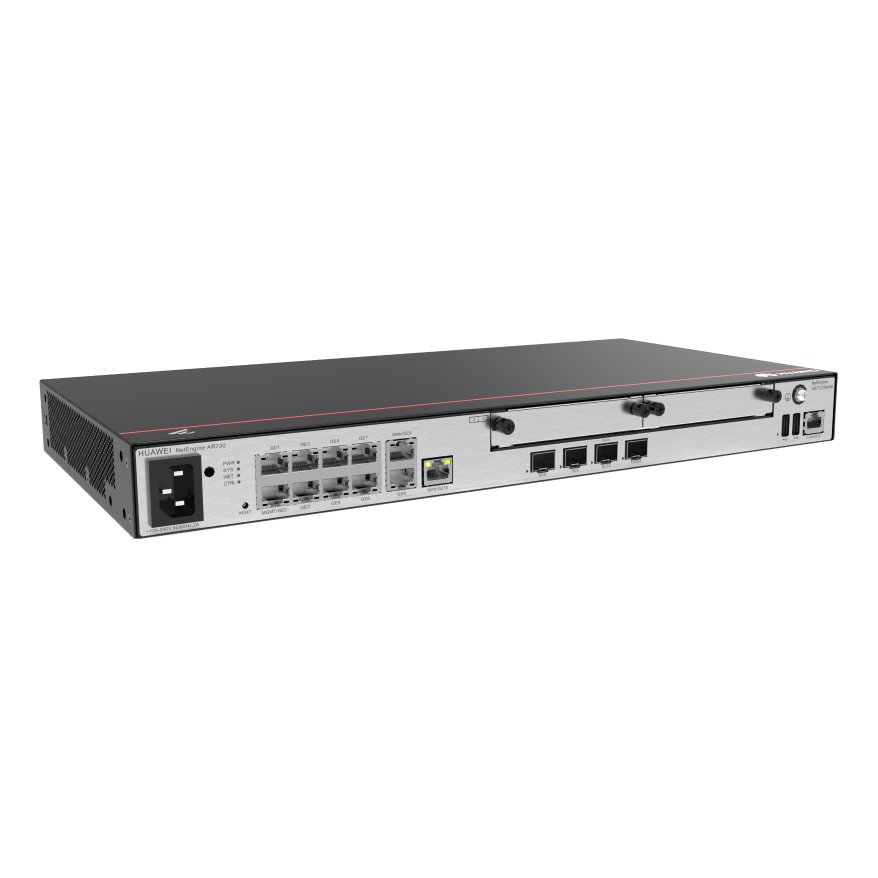

Huawei eKitEngine AR730 Enterprise Router, 1200 Users
Huawei eKitEngine AR730 Enterprise Router, 1200 Users من منتجات راوتر. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A Huawei eKit enterprise router / multi-service gateway for branch offices and SMEs: routing, NAT, VPN, Wi-Fi management and secure internet access.
- Forwarding performance: 9 Mpps to 25 Mpps
- Number of connected terminals: 1200
- Fixed WAN ports: 2 x GE combo ports, 1 x 10GE optical port (compatible with GE optical)
- Fixed LAN ports: 1 x GE combo port, 8 x GE electrical ports (can be switched to WAN ports)
- Dimensions (H x W x D): 43.6 mm x 442 mm x 220 mm
عام
| الموديل | AR730 |
|---|
Key Features
- Forwarding performance: 9 Mpps to 25 Mpps
- Number of connected terminals: 1200
- Fixed WAN ports: 2 x GE combo ports, 1 x 10GE optical port (compatible with GE optical)
- Fixed LAN ports: 1 x GE combo port, 8 x GE electrical ports (can be switched to WAN ports)
- Dimensions (H x W x D): 43.6 mm x 442 mm x 220 mm
Best Fit Applications
Branch offices, SMEs, shops and multi-site companies.
Technical Specifications
| Model | AR730 |
|---|---|
| Part Number | 02354GBM-001 |
| Forwarding performance | 9 Mpps to 25 Mpps |
| Number of connected terminals | 1200 |
| Installation type | Rack, Work bench, Against the wall |
| Dimensions without packaging (H x W x D) [mm(in.)] | - Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 220.4 mm (1.75 in. x 17.4 in. x 8.68 in.) - Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0… |
| Chassis height [U] | 1 |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90 mm x 570 mm x 390 mm (3.54 in. x 22.44 in. x 15.35 in.) |
| Weight with packaging [kg(lb)] | 4.6 (10.12) |
| Weight without packaging [kg(lb)] | 3.2 (7.04) |
| RTC | Supported |
| Typical power consumption [W] | 28 |
| Maximum power consumption [W] | 33 |
| Power supply mode | AC built-in |
| Number of power modules | 1 |
| Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum output power [W] | 70 |
| Safety regulation certification | IEC/EN/UL 60950-1 IEC/EN/UL 62368-1 GB 4943.1 |
| EMC certification | EN 55032 EN 55035 CISPR 32 GB 9254 EN 55024 CISPR 24 GB/T 17618 EN 300 386 VCCI-CISPR 32 AS/NZS CISPR32 IEC 61000-3-2/EN 61000-3-2 IEC 61000-3-3/EN 61000-3-3 |
| Types of fans | Built-in |
| Number of fan modules | 1 |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) Note: When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| LAN ports | 8 x GE electrical, 1 x GE combo |
| WAN ports | 2 x GE combo, 1 x 10GE optical (SFP+) |
| Airflow | Left-to-right airflow |
| Environmental standards compliance | RoHS REACH WEEE |
![[AR303] Huawei eKitEngine AR303 Enterprise Router, 200 Users](/web/image/product.template/2791/image_512)

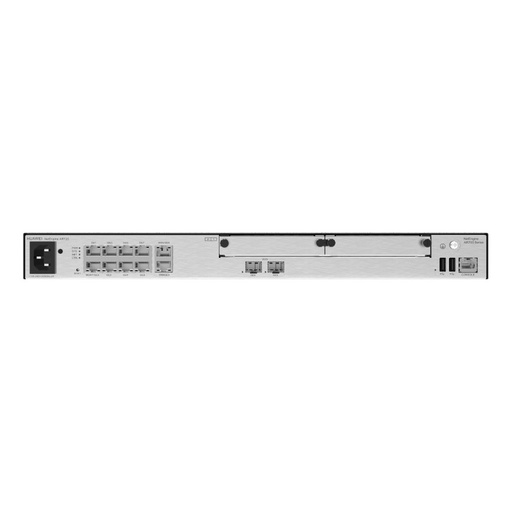

![[AR720] Huawei eKitEngine AR720 Enterprise Router, 700 Users](/web/image/product.template/2792/image_512)
