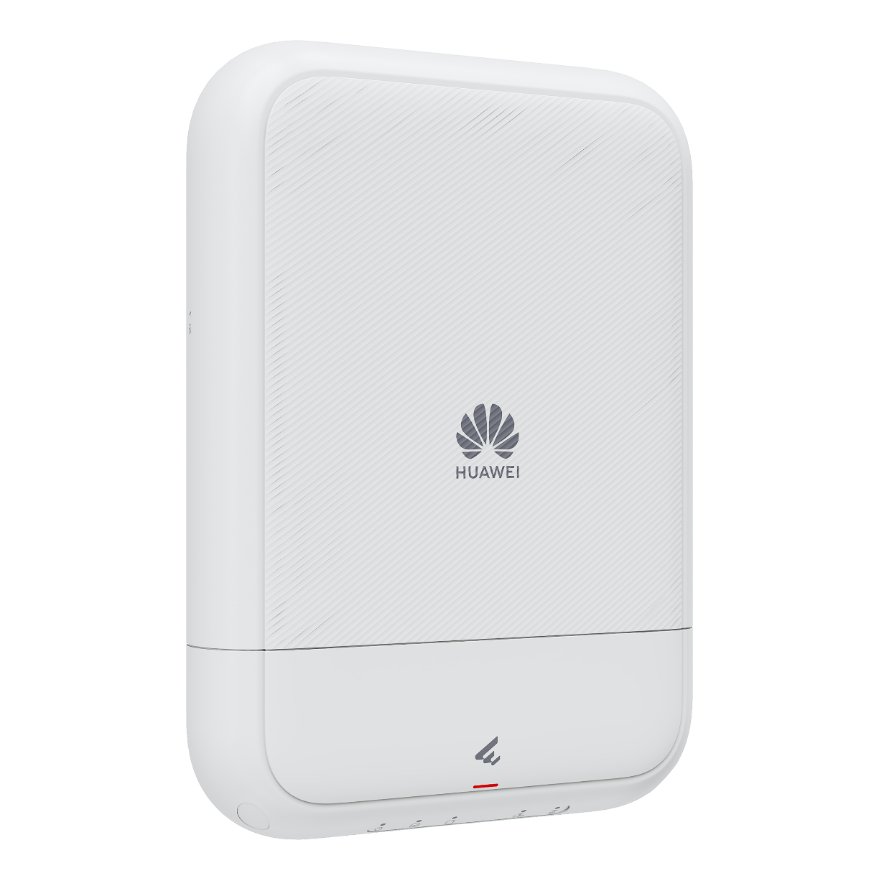

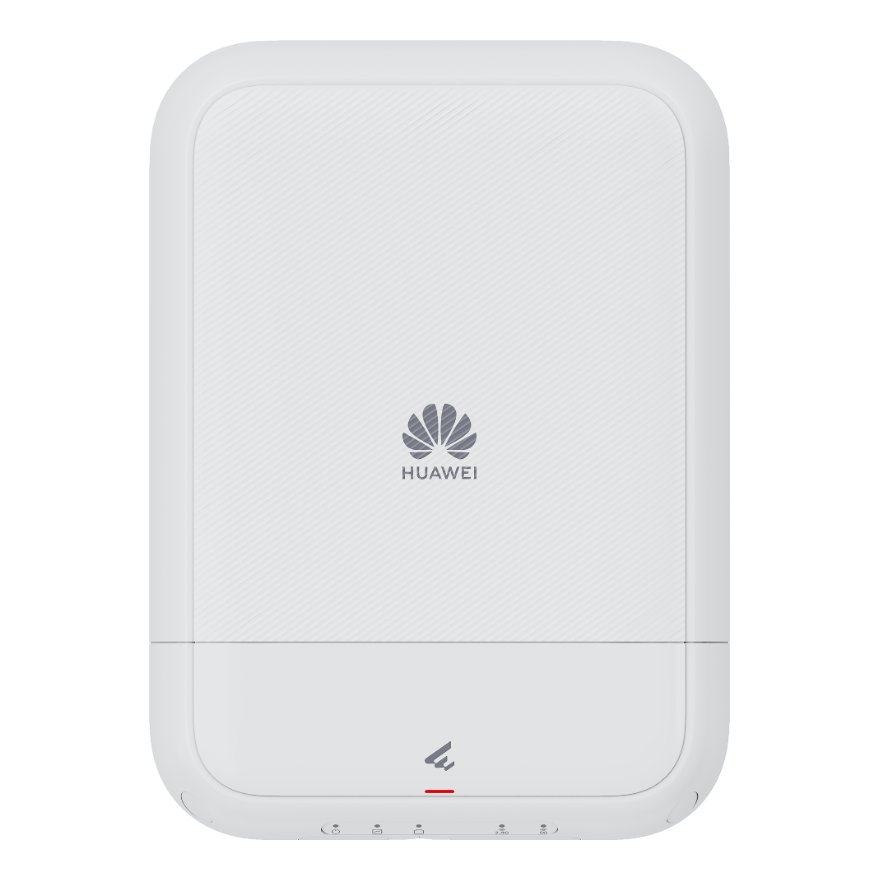

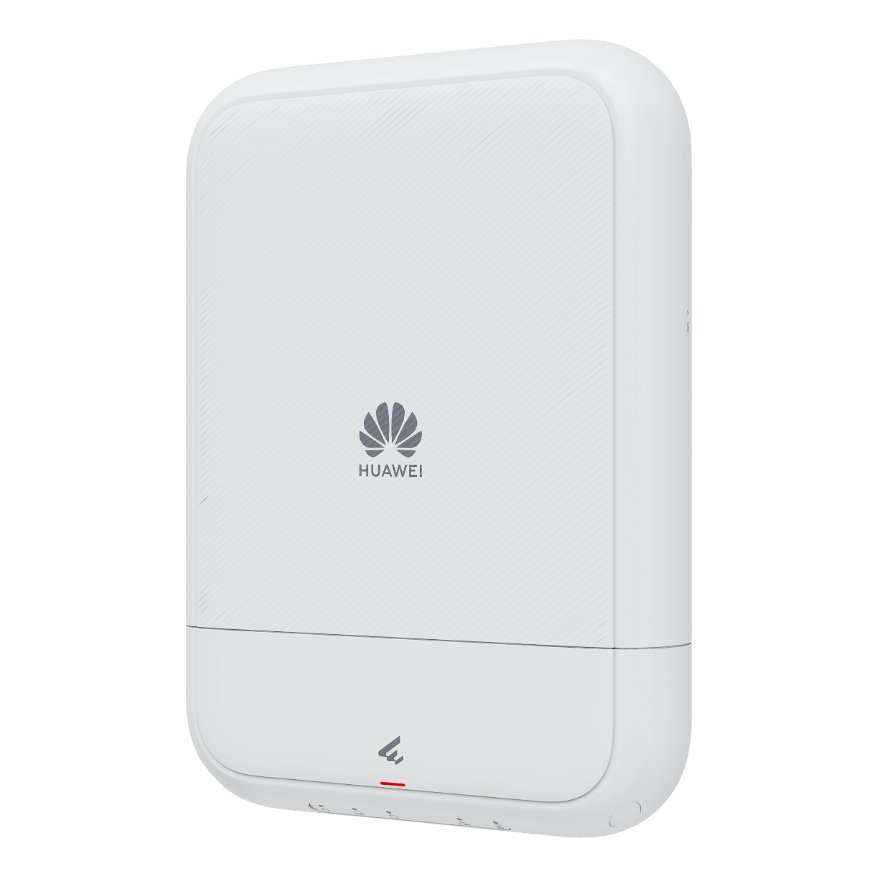

Huawei eKitEngine AP771 Outdoor Wi-Fi 7 Access Point, 3.57 Gbps, IP65
Huawei eKitEngine AP771 Outdoor Wi-Fi 7 Access Point, 3.57 Gbps, IP65 من منتجات نقطة وصول لاسلكية. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A Huawei eKit outdoor Wi-Fi 7 access point for parking areas, campuses, gardens and industrial sites: dual radio, 3.57 Gbps, up to 256 users and 130 m coverage in an IP65 housing powered by PoE.
- Wi-Fi 7 (802.11be), dual radio 2.4 GHz + 5 GHz
- 3.57 Gbps device rate
- 130 recommended / 256 max users
- 28 dBm transmit power, 130 m coverage
- 2.5GE RJ45 uplink, PoE 802.3at/af
عام
| الموديل | AP771 |
|---|
Key Features
- Wi-Fi 7 (802.11be), dual radio 2.4 GHz + 5 GHz
- 3.57 Gbps device rate
- 130 recommended / 256 max users
- 28 dBm transmit power, 130 m coverage
- 2.5GE RJ45 uplink, PoE 802.3at/af
- IP65 outdoor, -30°C to +60°C
Best Fit Applications
Outdoor coverage for campuses, factories, warehouses, parking lots, hotels, resorts and public areas.
Technical Specifications
| Part Number | 50088525 |
|---|---|
| Wi-Fi Standard | 2.4 GHz: 802.11b/g/n/ax/be; 5 GHz: 802.11a/n/ac/ac Wave 2/ax/be |
| Radios / MIMO | 2 radios; 2.4 GHz 2x2, 5 GHz 2x2 |
| Device Rate | 3.57 Gbps |
| Max Channel Bandwidth | 2.4 GHz: 40 MHz; 5 GHz: 160 MHz |
| Access Users | 130 recommended, 256 max |
| Max Transmit Power | 2.4 GHz: 28 dBm combined; 5 GHz: 27 dBm combined |
| Optimal Coverage | 130 m |
| Antennas | Built-in omnidirectional; 2.4 GHz 4 dBi/chain, 5 GHz 7 dBi/chain |
| Port | 1 x 2.5GE RJ45 (100M/1000M/2.5G auto-sensing) |
| Power | PoE 802.3at/af |
| Max Power Consumption | 18.8 W |
| Ingress Protection | IP65 |
| Operating Temperature | -30°C to +60°C |
| Humidity | 5% to 95% RH, non-condensing |
| Installation | Wall, pole |
| Dimensions (H x W x D) | 270 x 196 x 51 mm |
| Weight | 1.14 kg |
![[AP160] Huawei eKitEngine AP160 Wall-Plate Wi-Fi 6 Access Point, 1.775 Gbps](/web/image/product.template/2723/image_512)
![[AP162E] Huawei eKitEngine AP162E Wall-Plate Wi-Fi 6 Access Point, 2.975 Gbps](/web/image/product.template/2724/image_512)
![[AP263] Huawei eKitEngine AP263 Indoor Wi-Fi 6 Access Point, 2.975 Gbps](/web/image/product.template/2725/image_512)
![[AP266] Huawei eKitEngine AP266 Indoor Wi-Fi 6 Access Point, 2.975 Gbps](/web/image/product.template/2726/image_512)
![[AP362] Huawei eKitEngine AP362 Indoor Wi-Fi 6 Access Point, 2.975 Gbps](/web/image/product.template/2727/image_512)

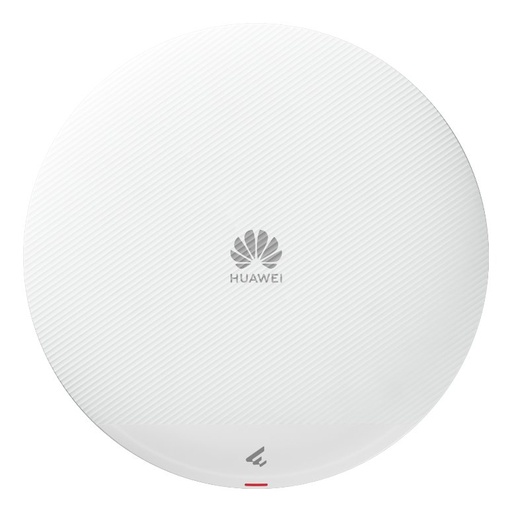

![[AP362E] Huawei eKitEngine AP362E Indoor Wi-Fi 6 Access Point, 2.975 Gbps, Smart Antenna](/web/image/product.template/2525/image_512)
