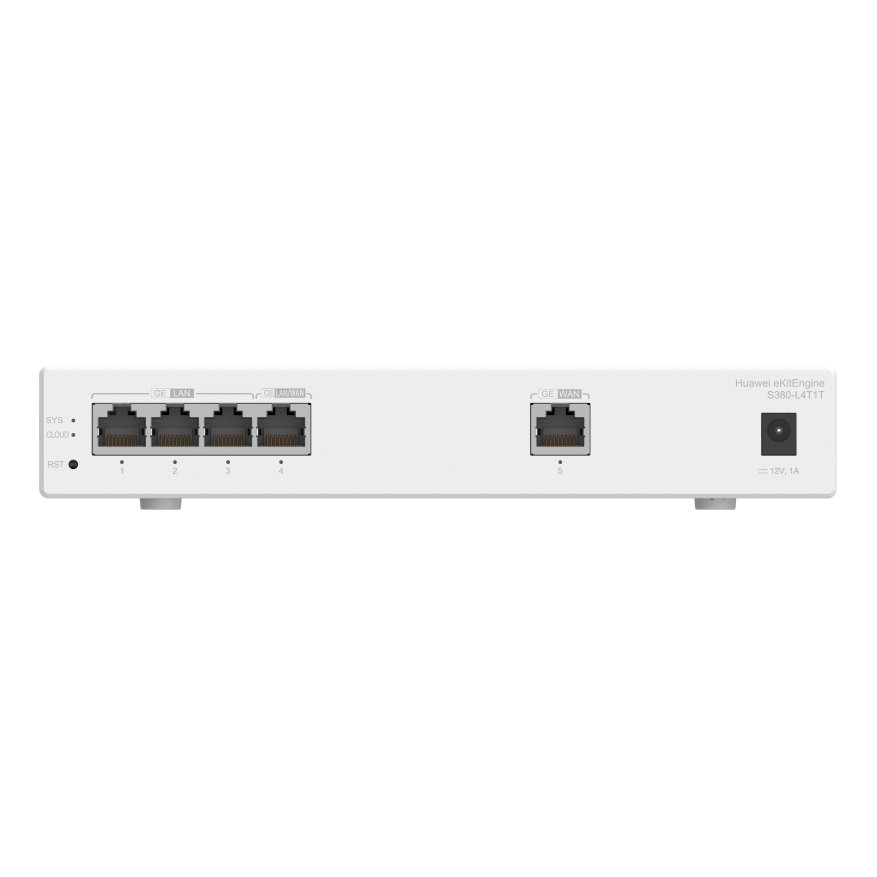

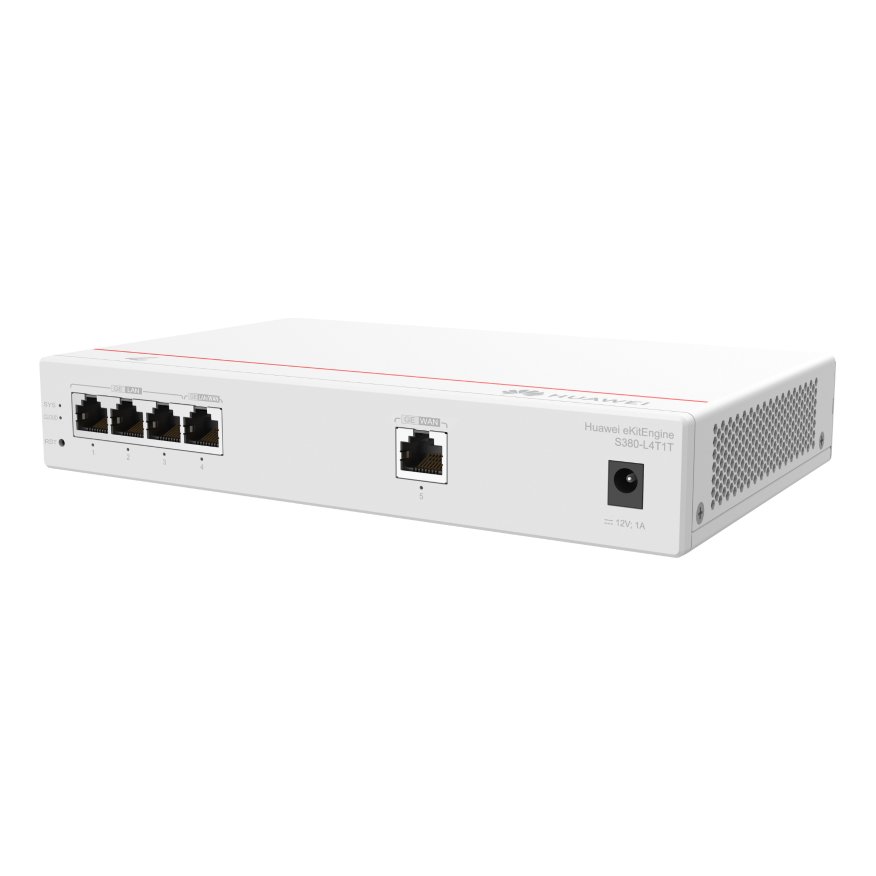

Huawei eKitEngine S380-L4T1T Multi-Service Gateway, 200 Users
Huawei eKitEngine S380-L4T1T Multi-Service Gateway, 200 Users من منتجات منتج. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A Huawei eKit enterprise router / multi-service gateway for branch offices and SMEs: routing, NAT, VPN, Wi-Fi management and secure internet access.
- Multi-Service Gateway
- Number of managed Aps: 32
- Maximum user: 200
- Switching Capacity: 8Gbps
- Packet forwarding rate: Upload:300 Kpps, download:420 Kpps
عام
| الموديل | S380-L4T1T |
|---|
Key Features
- Multi-Service Gateway
- Number of managed Aps: 32
- Maximum user: 200
- Switching Capacity: 8Gbps
- Packet forwarding rate: Upload:300 Kpps, download:420 Kpps
- Egress bandwidth: 1Gbps
- 1 x 10/100/1000BASE-T port(WAN)+4 x 10/100/1000BASE-T ports(LAN)
Best Fit Applications
Branch offices, SMEs, shops and multi-site companies.
Technical Specifications
| Model | S380-L4T1T |
|---|---|
| Part Number | 98012177 |
| Switching Capacity | 8Gbps |
| Maximum user | 200 |
| Packet forwarding rate | pload:300 Kpps, download:420 Kpps |
| Egress bandwidth | 1Gbps |
| Managed APs | 32 |
| GE RJ45 | 5 (1G/100M/10M) |
| WAN ports | 1 x GE WAN |
| LAN ports | 4 x GE LAN |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x… |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 285.0 mm x 180.0 mm (3.54 in. x 11.22 in. x 7.09 in.) |
| Installation type | Desk mounting, Wall mounting |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 0.8 (1.76) |
| Weight with packaging [kg(lb)] | 1.0 (2.2) |
| Typical power consumption [W] | 5.99 |
| Maximum power consumption [W] | 6.11 |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Power supply mode | Power adapter |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz Power adapter output: 12 V DC |
| Power supply surge protection [kV] | Power adapter: ±6 kV in differential mode and ±6 kV in common mode |
| Heat dissipation mode | Natural heat dissipation |
| Certification | EMC certification Safety certification Manufacturing certification |
