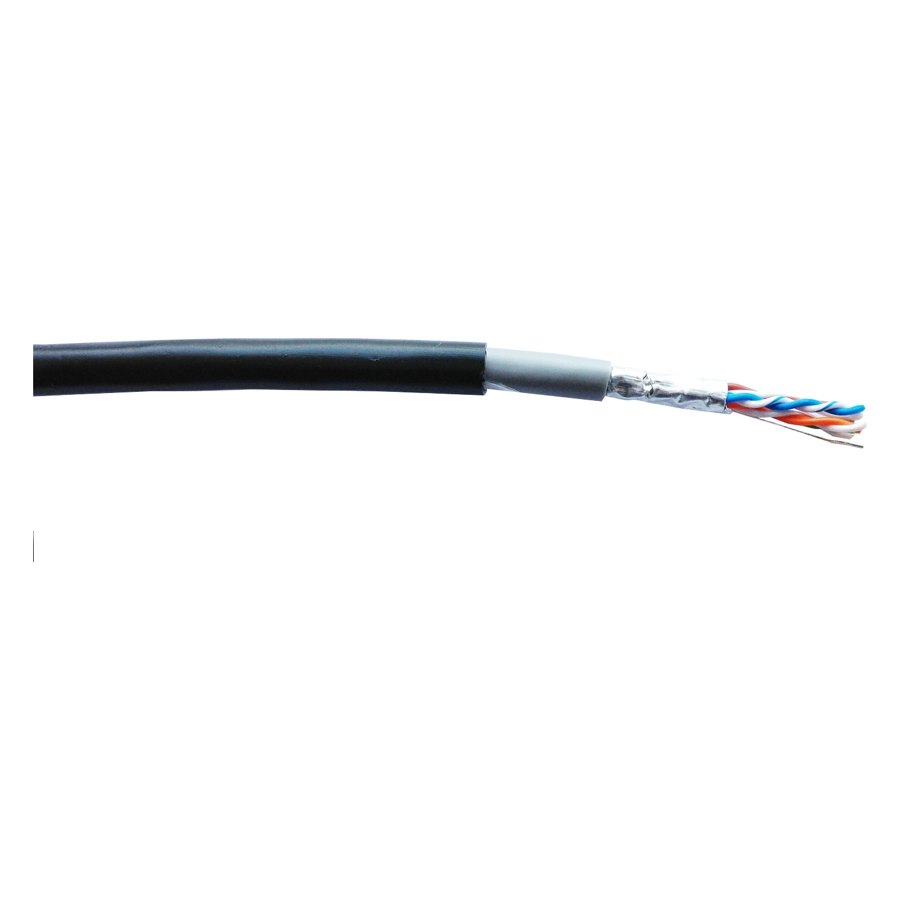

D-Link NCB-C6FOBLR-305 Outdoor Cable
D-Link NCB-C6FOBLR-305 Outdoor Cable من منتجات كابل شبكات. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
D-Link copper network cable for structured cabling installations.
- Outdoor Cable
- Mutual Capacitance: 5.6nF/100m nominal
- Characteristic Impedance: 100Ω±15%
- Nominal Velocity of Propagation: 69%
- Conductor Resistance: < 9.38?/100m
عام
| الموديل | NCB-C6FOBLR-305 |
|---|
Key Features
- Outdoor Cable
- Mutual Capacitance: 5.6nF/100m nominal
- Characteristic Impedance: 100Ω±15%
- Nominal Velocity of Propagation: 69%
- Conductor Resistance: < 9.38?/100m
Best Fit Applications
Offices, homes, CCTV and network installation projects.
Technical Specifications
| Model | NCB-C6FOBLR-305 |
|---|---|
| Mutual Capacitance | 5.6nF/100m nominal |
| Characteristic Impedance | 100Ω±15% |
| Nominal Velocity of Propagation | 69% |
| Conductor Resistance | < 9.38?/100m |
| Resistance Unbalance | 5 % Max |
| Capacitance Unbalance | 330pF/100m |
| Delay Skew | < 45nS |
| Conductor Diameter | 0.560mm Nominal |
| Insulation Diameter | 1.14 Nominal |
| Insulation Material | HD-PE |
| Cable Diameter | 8.6mm Nominal |
