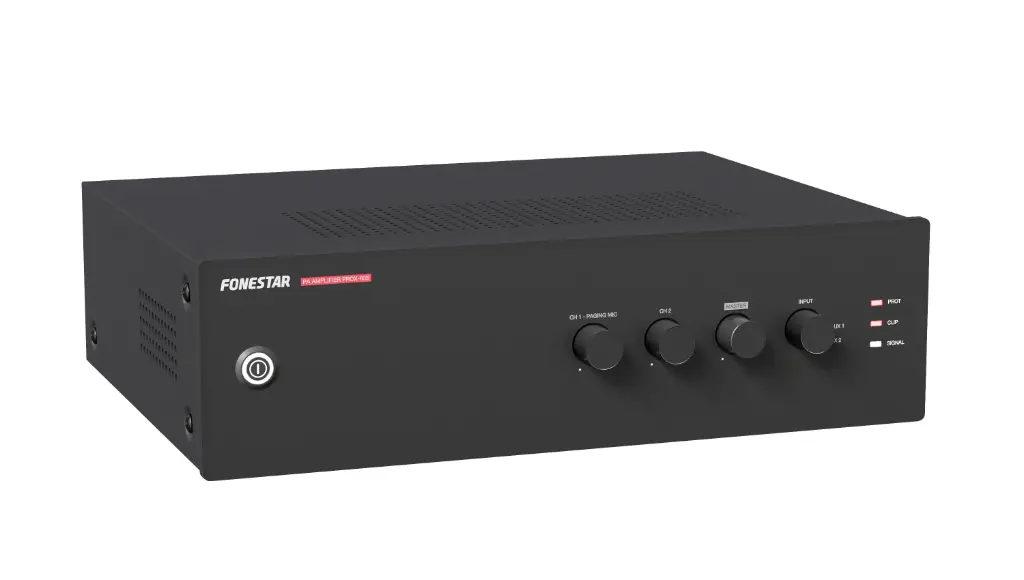

Fonestar Amplifiers Mono PROX-60S
Fonestar Amplifiers Mono PROX-60S من منتجات مضخم صوت. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
PROX-60S
- 60 W RMS single zone amplifier
- Versatile PA amplifier
- Microphone inputs with mix, gain and priority level control
- Great performance, low maintenance
عام
| الموديل | PROX-60S |
|---|
| FEATURES: | PA Amplifier Microphone inputs with mix, gain and priority level control. Input priorities by signal level. Tone controls. 100 V and 4 Ω outputs. |
| POWER: | 60 W RMS |
| RESPONSE: | 60-20,000 Hz (-10 dB) |
| DISTORTION: | THD+N: < 1% @ 1 kHz |
| S/N RATIO: | >77 dB |
| PROTECTIONS: | Overcurrent, DC and short-circuit at the output |

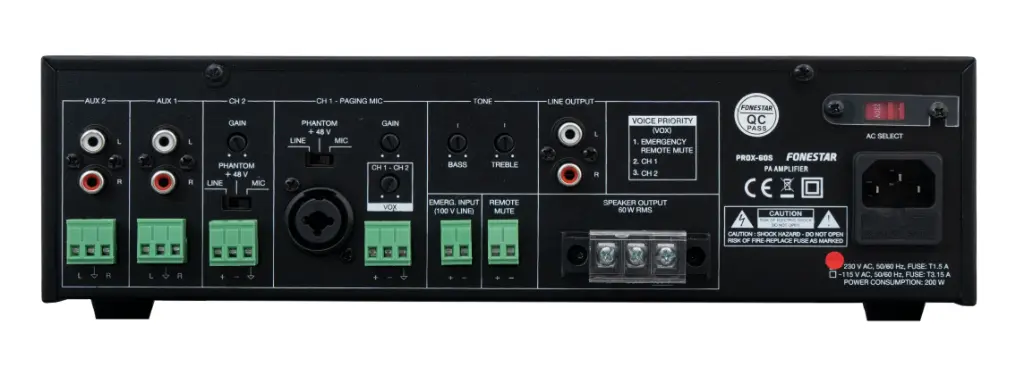

| INPUTS: | CH 1 balanced mic/line with 48 V Phantom, Combo connector (XLR + 6.3 mm) and euroblock CH 2 mic/line balanced with 48 V Phantom. Euroblock connector Mic signal level: 6 mV RMS (-44 dBV)/600 Ω Line signal level: 250 mV RMS (-12 dBV)/100 kΩ 2 AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV)/47,000 Ω 1 emergency. Euroblock connector. Signal level loudspeaker line 100 V 1 Mute (Emergency Priority) by contact closure. Euroblock connector |
| OUTPUTS: | 1 line. 2 x RCA connector. Signal level 1.25 V RMS (+2 dBV) 100 V or 4 Ω speaker output. Connector screw terminals |
| IMPEDANCE: | 4 Ω and 100 V (166 Ω) line |
| FUNCTIONS: | Priority of entries (in order of attenuation): · Emergency entry 100. · Mute by closing contacts. · Channel 1 with selectable signal level shared CH1-2 (VOX) · Channel 2 with selectable signal level shared CH1-2 (VOX) · Auxiliary inputs Light indicators for ignition, protection, signal peak and output signal Induction cooling without a fan |
| CONTROLS: | Microphone volume Mic/line/phantom selector Master volume Aux input selector Tone: bass and treble (+/- 10 dB 100 Hz and 10 kHz) Microphone gain Priority activation signal level (VOX) |
| TEMPERATURE: | Operation: 0º ~ 40ºC |
| MAXIMUM HUMIDITY: | 95% |
| POWER SUPPLY: | 230/115 V AC 50-60 Hz, 200 W Fuse AC 230 V 1.5 A / 115 V 3.15 A |
| DIMENSIONS: | 320 x 94 x 281 mm depth |
| WEIGHT: | 5 kg |
| ACCESSORIES: | Power cable |
