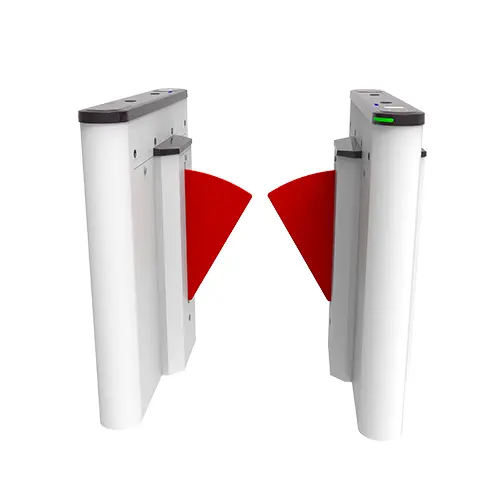

ZKTeco Saturn F1000 Swing Barrier Turnstile

ZKTeco Saturn F1000 Swing Barrier Turnstile

https://www.dolinkegypt.com/web/image/product.template/1642/image_1920?unique=955e31b
(مراجعة 0 )
Saturn F1000
Unveiling the ZKTeco Saturn Series, an innovative swing barrier turnstile designed for an  paralleled passage experience. With its sophisticated design, the Saturn Series has two models  (S1000 and S1200) and is available in range of striking colors including Pearl White, Space Gray,  and Bay Blue, Mist Brown and Carbon Black, making it blends seamlessly with both indoor and  outdoor applications.

81,900.00 LE 81900.0 EGP 81,900.00 LE

Call US

هذه التركيبة غير موجودة.

أنظمة الأكسس كنترول
تواصل معنا

الشروط والأحكام
ضمان إرجاع الأموال خلال 30 يوماً
الشحن: 2-3 أيام عمل

مشاركة

Parameters

  • Model Name

    Saturn-S1000

    Saturn-S1200

  • Audio Indicator

    Internal speaker

  • Visual Indicator

    Top LED indicator:

    Blue = Door closed / stand by

    Green = Door opening

    Red = Door closing / alarm


    Slide LED indicator:

    Green = Lane available

    Red = Lane unavailable

  • Display

    NA

  • Lane Type

    Saturn-S1000: Single lane

    Saturn-S1200: Dual Swing (for additional lane)

  • Lane Width

    650mm (Standard)

    900mm (Optional)

  • Barrier Movement Type

    Swing

  • Motor

    DC brushless motor

  • Movement Speed

    Average 1s per movement (Adjustable open/close timing)

  • Movement Accuracy

    NA

  • Clutch

    NA

  • Lid Material

    Polycarbonate+2.5D tempered glass

  • Lid Options Authentication Methods

    Streamlined under mount options: QR Code / RFID

    Surface mount option: Facial Authentication

  • Chassis Material

    Cold-rolled SPCC Steel (GB700) / Polycarbonate (Side Lid)

  • Chassis Colour

    Pearl White(PWH), Space Gray(SGY), Carbon Black(CBK), Bay Blue(BBLE), Mist Brown(MBW)

  • Barrier Material

    Clear acrylic (635*300mm)(standard) / Tempered glass (635*425mm)(optional)

  • IR Sensors

    4 pairs

  • Motherboard Function

    System configuration, access control

  • Motherboard Communication

    Fire alarm port (relay)*1, RS485 port*1

  • Controller

    Not equipped, allowing optional from C3 / InBio Series series or customization

  • Credential Options

    Under mount RFID reader: (support model: Pro ID Series, KR Series)

    Under mount ngerprint reader: FR1200 / FR1500S

  • Flow Rate

    Facial Authentication: 15 passengers per minute

    QR Code: 30 passengers per minute

    RFID: 35 passengers per minute

  • Accessibility

    Adult, Children (with care), Disability (with care)

  • Power Supply

    110V / 220V ±10% AC @50Hz/60Hz

  • Power Rating

    10VA(Standby)

    40VA(Operation)

  • Fire Signal

    Input for voltage free contact

  • Noise Level

    Less than 60dB

  • MTTR

    Less than 60 minutes

  • MCBF

    3 million

  • Weight

    Saturn-S1000: 50kg

    Saturn-S1200: 30kg

  • Dimension (L*W*H)

    1200 * 150 * 1020 mm

  • Dimensions with Packing ( L*W*H )

    Saturn-S1000:

    Carton (standard): 1265*220*1070 mm (2 boxes)

    Wooden box (optional): 1300*480*1224mm (1 box)


    Saturn-S1200:

    Carton (standard): 1265*220*1070mm (1 box)

    Wooden box (optional): 1300*260*1224mm (1 box)

  • Operating Temperature

    -30 °C to 70 °C

  • Operating Humidity

    5% to 90% RH (Non-condensing)

  • Certifications

    CE, FCC

  • Ingress Protection Rating

    IPX4

  • Supported Software

    ZKBio CVAccess / ZKBio CVSecurity (Depends on equipped access controller)

  • Safety Features

    Voltage free contact input for fire alarm fail state

    automatic swing barrier open during power off

  • Security Features

    Anti-tailgating, anti-pinch

  • Product Delivery

    Pre-assembled

  • Application Environment

    Indoor / outdoor (if sheltered)

  • Site Preparation

    Flat & level finished floor (base plate in options for unfinished floor)

  • Security Level

    Low

  • Emergency Mode

    Support (swing barrier open automatically)

  • Packing Material

    Carton(standard) / Wooden(optional)
