كود المنتج:
SL01-U530N

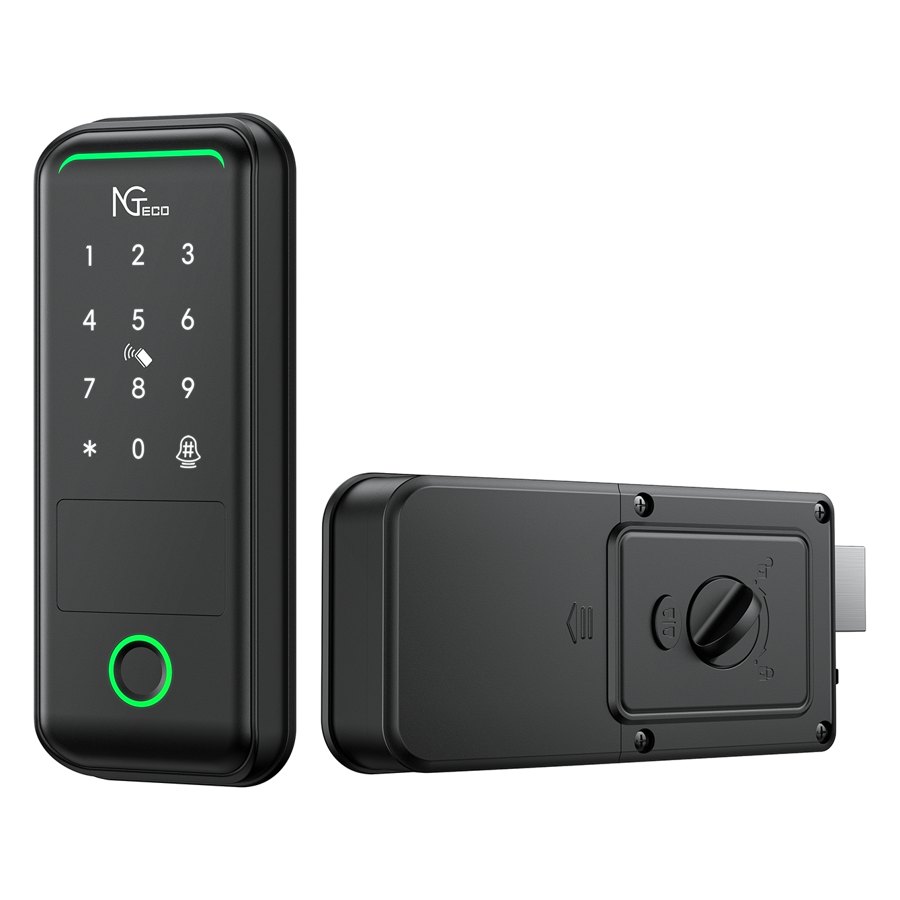

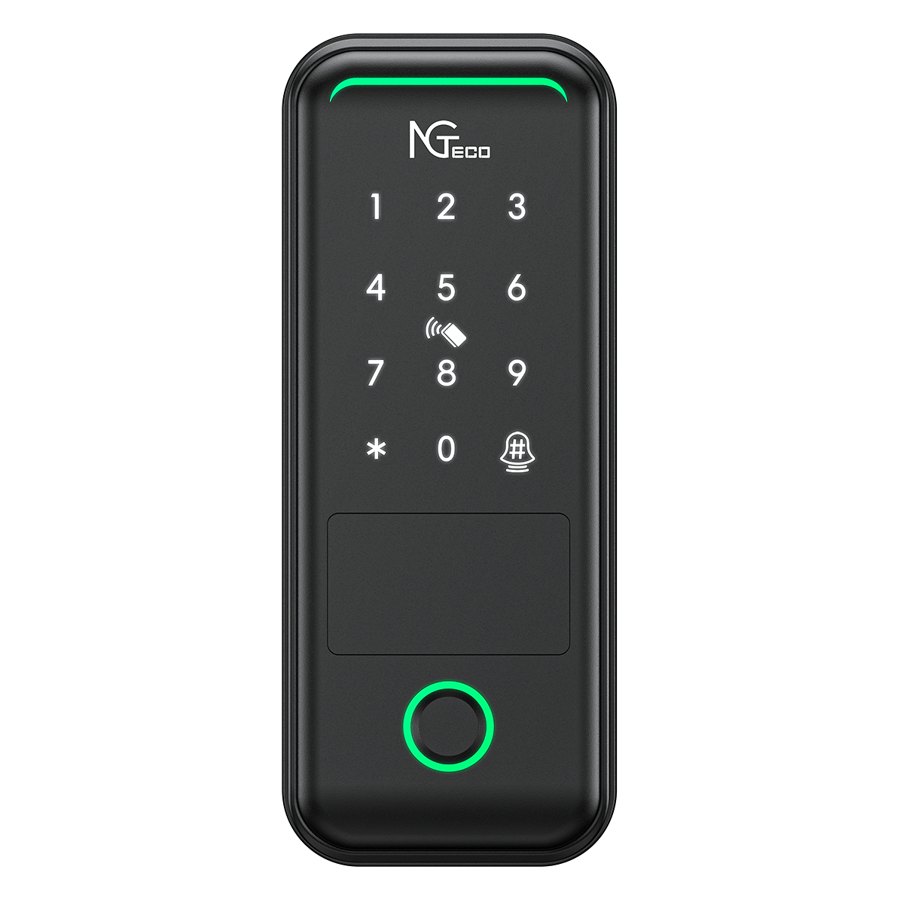

ZKTeco SL01-U530N Wi-Fi Fingerprint Smart Rim Lock, No Mortise (NGTeco)
ZKTeco SL01-U530N Wi-Fi Fingerprint Smart Rim Lock, No Mortise (NGTeco) من منتجات قفل ذكي. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
SL01-U530N is a smart rim lock that needs no mortise drilling, with Wi-Fi for real-time access logs and temporary codes through the NGTeco Home app, auto lock and tamper alarm.
- Unlocking Methods: Fingerprint, Card, Passcode (4 to 10 digits), NGTeco Home APP, Mechanical Key
- Fingerprint Sensor: Capacitive
- Wireless Communication: Wi-Fi IEEE 802.11b/g/n (2.4GHz), BLE 5.0 (network configuration only)
- Housing Material: Aluminium Alloy + ABS
- Installation: Rim lock, no mortise drilling; adjustable latch 50 / 60 / 70 mm
عام
| الموديل | SL01-U530N |
|---|
Key Features
- Unlocking Methods: Fingerprint, Card, Passcode (4 to 10 digits), NGTeco Home APP, Mechanical Key
- Fingerprint Sensor: Capacitive
- Wireless Communication: Wi-Fi IEEE 802.11b/g/n (2.4GHz), BLE 5.0 (network configuration only)
- Housing Material: Aluminium Alloy + ABS
- Installation: Rim lock, no mortise drilling; adjustable latch 50 / 60 / 70 mm
- Functions: Auto lock, tamper alarm, temporary access codes
Best Fit Applications
Homes, apartments, villas and offices.
Technical Specifications
| Model | SL01-U530N |
|---|---|
| Unlocking Methods | Fingerprint, Card, Passcode (4 to 10 digits), NGTeco Home APP, Mechanical Key |
| Fingerprint Sensor | Capacitive |
| Wireless Communication | Wi-Fi IEEE 802.11b/g/n (2.4GHz), BLE 5.0 (network configuration only) |
| Housing Material | Aluminium Alloy + ABS |
| Installation | Rim lock, no mortise drilling; adjustable latch 50 / 60 / 70 mm |
| Functions | Auto lock, tamper alarm, temporary access codes |
| Emergency Power | USB Type-C, DC 5V |
| Battery Life | Approx. 12 months (10 accesses per day, Wi-Fi connected) |
| Audio Prompt Language | English, Portuguese, Spanish |
| Door Type | Wooden swing door |
| Opening Direction | All directions |
| Operating Humidity | 10% to 90% RH |
| Gross Weight | 1.8 kg |
| Package Contents | Exterior & interior assembly, strike box kit, 2 IC cards, 2 mechanical keys, screws kit, template, user manual |

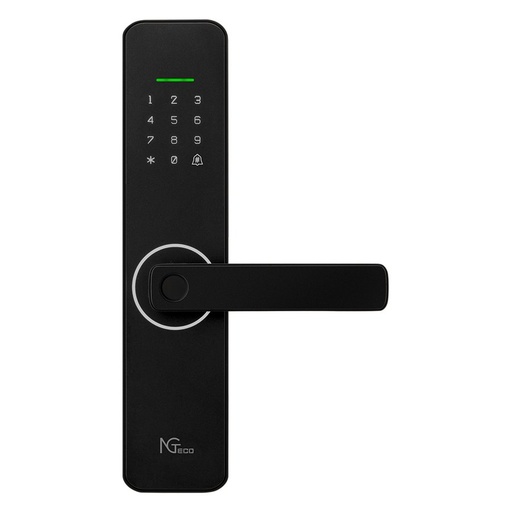

![[SL01-T330N] ZKTeco SL01-T330N Wi-Fi Fingerprint Smart Lock with 5050 Mortise (NGTeco)](/web/image/product.template/3095/image_512)
