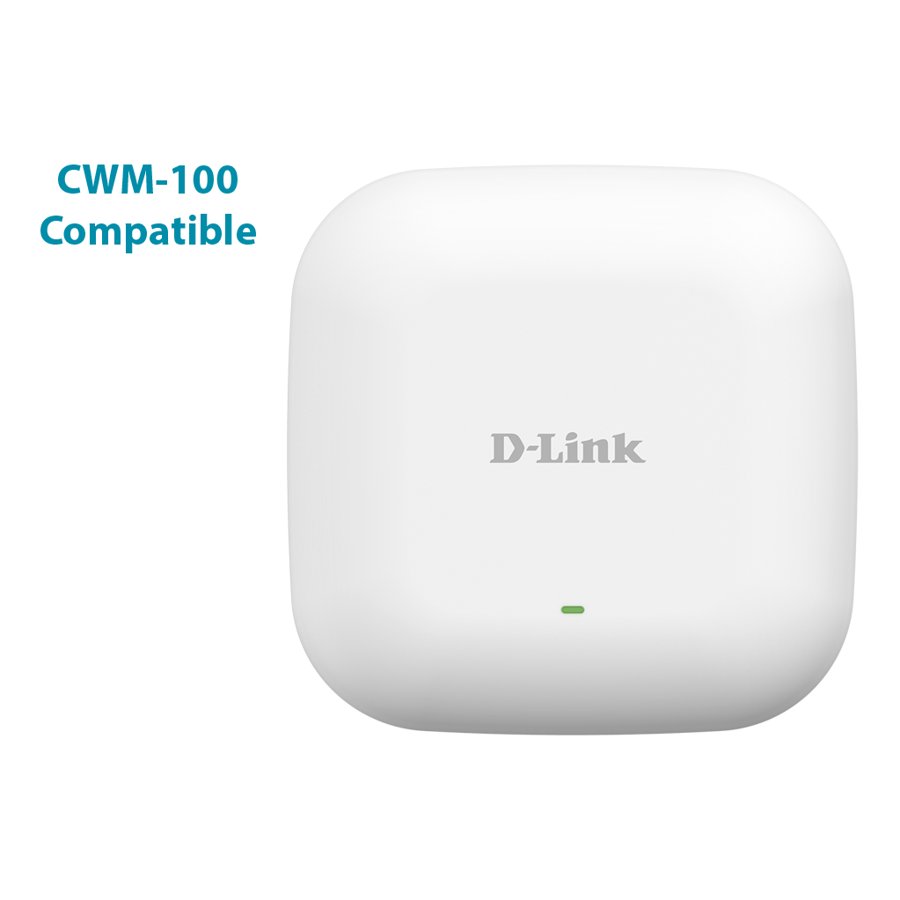

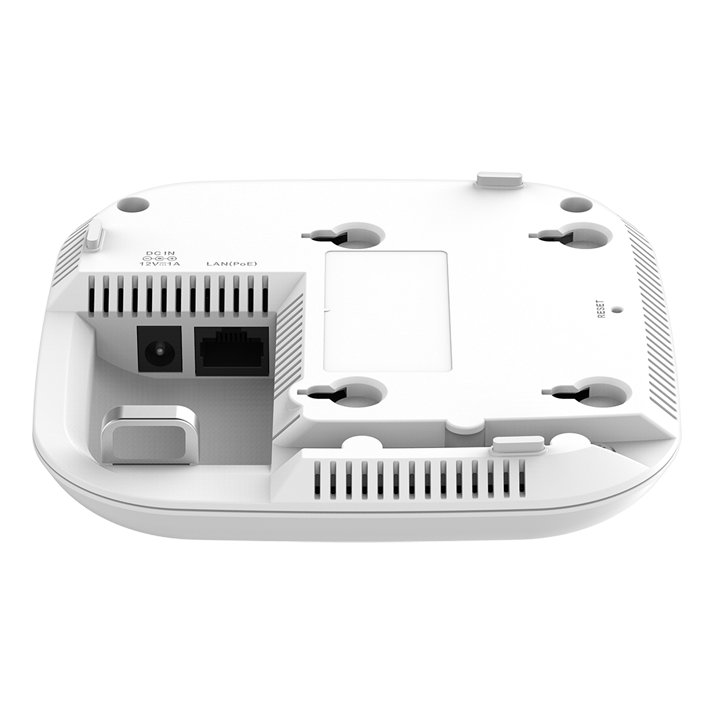

D-Link DAP-2230 Wireless N PoE Access Point
D-Link DAP-2230 Wireless N PoE Access Point من منتجات نقطة وصول لاسلكية. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A D-Link business Wi-Fi access point (Nuclias / Dlite / unified) for offices, shops, hotels and campuses.
- Wireless N PoE Access Point
- Type: Software Managed AP
- Frequency band mode: Single-band
- Wireless speed: 300 Mbps 2.4 GHz
- Advanced features: MIMO 802.11k/r Roaming
عام
| الموديل | DAP-2230 |
|---|
Key Features
- Wireless N PoE Access Point
- Type: Software Managed AP
- Frequency band mode: Single-band
- Wireless speed: 300 Mbps 2.4 GHz
- Advanced features: MIMO 802.11k/r Roaming
Best Fit Applications
Offices, shops, cafes, hotels and campuses.
Technical Specifications
| Model | DAP-2230 |
|---|---|
| Type | Software Managed AP |
| Frequency band mode | Single-band |
| Wireless speed | 300 Mbps 2.4 GHz |
| Advanced features | MIMO 802.11k/r Roaming |
| Antenna type | Embedded omni-directional antennas |
| Antenna gain | 3 dBi for 2.4 GHz |
| Power-over-Ethernet | Yes |
| Wired interface | 1 x Fast Ethernet LAN |
| Type of housing | Plastic |
| Wireless modes | Access Point (AP) WDS bridge WDS with AP Wireless client |
| Maximum number of SSIDs | 8 |
| Auto channel selection | Supported |
| WMM-PS/802.11e (U-APSD) | Supported |
| Wi-Fi scheduler | Supported |
| AP traffic load balance | Supported |
| WEP 64/128 bit | Supported |
| WPA/WPA2-Personal/Enterprise | Supported |
| TKIP/AES encryption | Supported |
| WPA_WPA2_PSK over WDS | Supported |
| WLAN partition | Supported |
| SSID broadcast disable | Supported |
| Rogue AP detection | Supported |
| Station isolation | Supported |
| MAC address filtering | Supported |
| 802.1X authentication | Supported |
