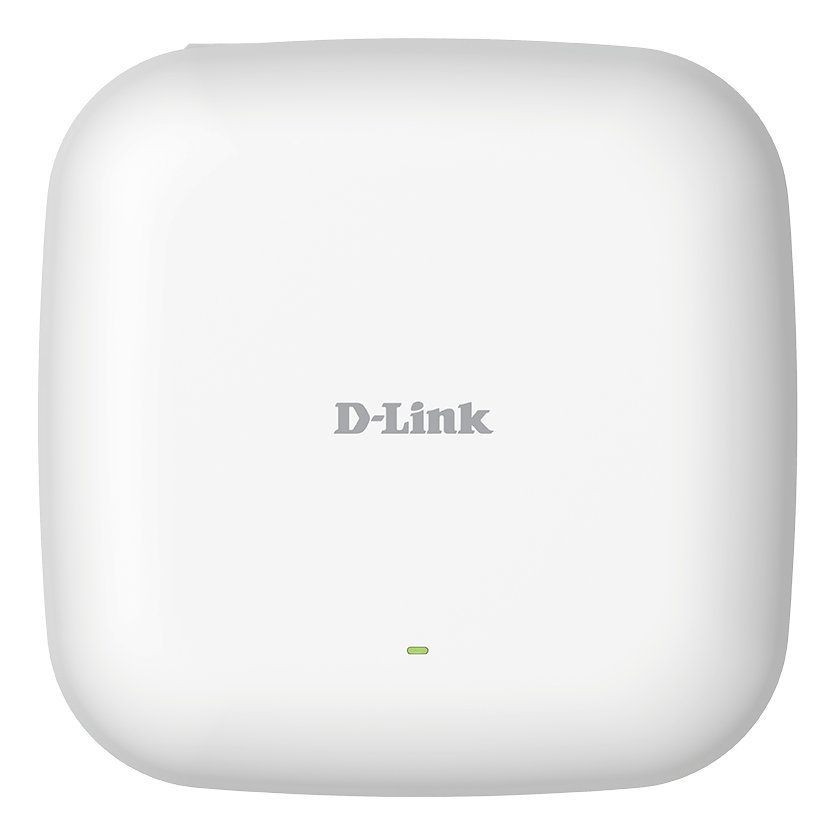

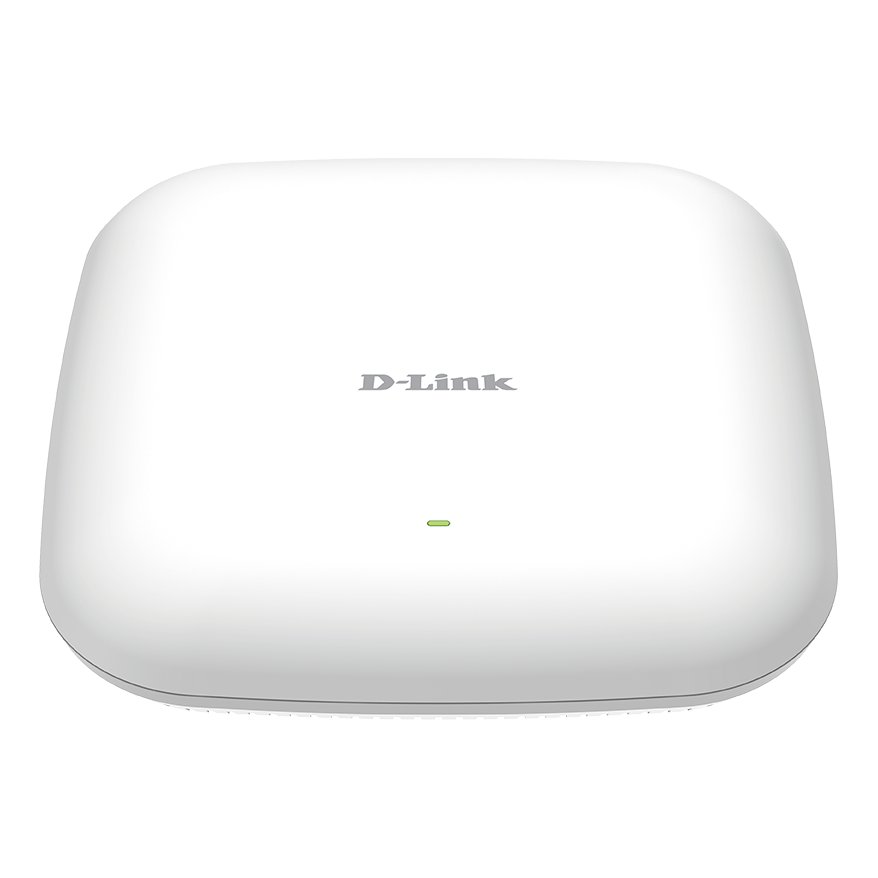

D-Link DAP-X2810 AX1800 Wi-Fi 6 Dual-Band PoE Access Point
D-Link DAP-X2810 AX1800 Wi-Fi 6 Dual-Band PoE Access Point من منتجات نقطة وصول لاسلكية. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A D-Link business Wi-Fi access point (Nuclias / Dlite / unified) for offices, shops, hotels and campuses.
- AX1800 Wi-Fi 6 Dual-Band PoE Access Point
- Category: Ceiling
- Interfaces: 1 x Gigabit Ethernet PoE LAN port
- Antenna type: 2 x Dual-band internal antennas
- Antenna gain: 2.4 GHz: 3.2 dBi 5 GHz: 4.3 dBi
عام
| الموديل | DAP-X2810 |
|---|
Key Features
- AX1800 Wi-Fi 6 Dual-Band PoE Access Point
- Category: Ceiling
- Interfaces: 1 x Gigabit Ethernet PoE LAN port
- Antenna type: 2 x Dual-band internal antennas
- Antenna gain: 2.4 GHz: 3.2 dBi 5 GHz: 4.3 dBi
Best Fit Applications
Offices, shops, cafes, hotels and campuses.
Technical Specifications
| Model | DAP-X2810 |
|---|---|
| Category | Ceiling |
| Interfaces | 1 x Gigabit Ethernet PoE LAN port |
| Antenna type | 2 x Dual-band internal antennas |
| Antenna gain | 2.4 GHz: 3.2 dBi 5 GHz: 4.3 dBi |
| Maximum Output Power | 2.4 GHz: 23 dBm 5 GHz: 26 dBm |
| Data Signal Rate | 2.4 GHz: Up to 574 Mbps 5 GHz: Up to 1201 Mbps |
| IEEE Standard | IEEE 802.11ax/ac/n/g/b/a IEEE 802.3u/ab IEEE 802.3at PoE |
| Operating Frequency | 2.4 - 2.483 GHz 5.15 - 5.35 GHz 5.47 - 5.85 GHz |
| Security Protocol | WPA/WPA2/WPA3™ Personal/Enterprise WEP 64/128-bit SSID broadcast disable Enhanced Open MAC address access control Internal RADIUS server |
| Network Management | Web Nuclias Unity Nuclias hardware and software controller SNMP |
| Power Supply | IEEE 802.3at PoE 12 V / 2.5 A (Optional power adapter) |
| Max. Power Consumption | 16 W |
| Operating Temperature | 0°C - 40°C (32°F - 104°F) |
| Storage Temperature | 20°C to 65°C (-4°F to 149°F) |
| Operating Humidity | 10% to 90% |
| Storage Humidity | 5% - 95% |
| Dimensions | 170 x 170 x 33.7 mm |
