كود المنتج:
DS-2SF8C442MXG1-ELW/26(F0)

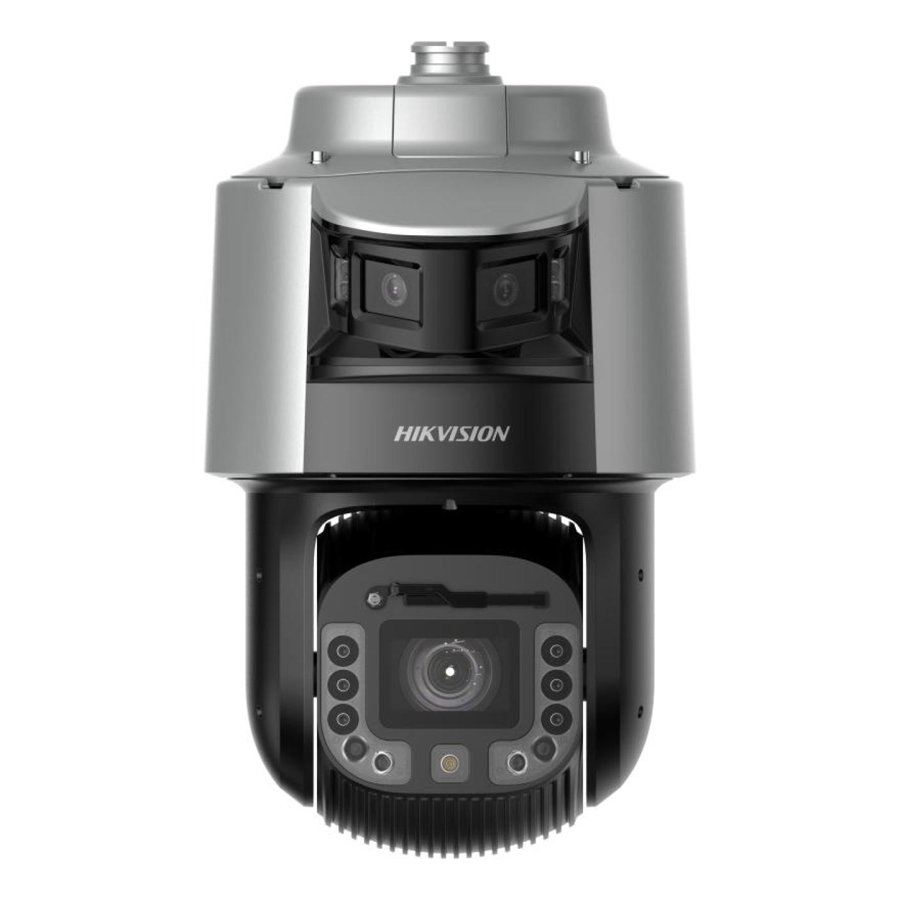

Hikvision DS-2SF8C442MXG1-ELW/26(F0) TandemVu 6 MP Panoramic + 4 MP 42X DarkFighter PTZ Camera
Hikvision DS-2SF8C442MXG1-ELW/26(F0) TandemVu 6 MP Panoramic + 4 MP 42X DarkFighter PTZ Camera من منتجات كاميرا متحركة PTZ. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A Hikvision network PTZ camera with optical zoom, pan / tilt control and long-range night vision, for wide-area surveillance.
- Captures a large area and great details at the same time
- High quality imaging with 6 MP resolution for bullet channel
- 24/7 colorful imaging and excellent low-light performance with DarkFighter 2.0 technology
- Panoramic channel tilt adjustable from 12° to 24°
- Secures an expansive area with 42 × optical zoom and 16 × digital zoom
6MP Ultra HD
H.265+ Smart Codec
WDR 120 dB
Low Light
PTZ Pan Tilt Zoom
PoE Power over Ethernet
| Image Sensor: [Bullet channel] 1/2.5" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS |
| Min. Illumination: [Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light, [PTZ channel] Color: 0.0003 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 lux with IR |
| Shutter Time: 1 s to 1/30000 s |
| Slow Shutter: Yes |
| Day & Night: [Panoramic channel] Day,Night,Schedule,Auto, [PTZ channel] Day,Night,Schedule,Auto |
| Max. Resolution: [Panoramic channel] 3680 × 1656, [PTZ channel] 2688 × 1520 |
| Focal length: [Panoramic channel] 2.8 mm, [PTZ channel] 6 to 252 mm |
| Aperture: [Panoramic channel] F1.0, [PTZ channel] F1.3 |
| Focus: Auto,semi-auto,manual |
| FOV: [Panoramic channel] horizontal field of view: 190° ± 5°, vertical field of view: 50°±5°, [PTZ channel] horizontal field of view: 59° to 2°, vertical field of view: 34.2° to 1.1°, diagonal field of view: 67.1° to 2.3° |
| Zoom: [PTZ channel] 42 × optical, 16 × digital |
| Zoom Speed: [Panoramic channel] No, [PTZ channel] approx. 5.6 s |
| Supplement Light Range: [Panoramic channel] white light: up to 30 m, [PTZ channel] IR: up to 300 m |
| Smart Supplement Light: Yes |
| Movement Range (Pan): 360° endless |
| Movement Range (Tilt): [Panoramic channel] 12° to 24°, [PTZ channel] -20° to 90° |
| Pan Speed: [PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s |
| Tilt Speed: [PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s,[Panoramic channel] tilt speed configurable |
| Proportional Pan: [Panoramic channel] No, [PTZ channel] Yes |
| Presets: 300 |
| Patrol Scan: 8 patrols, up to 32 presets for each patrol |
| Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory: Yes |
| Park Action: Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan |
| PTZ Status Display: Yes |
| Preset Freezing: Yes |
| Scheduled Task: Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output |
| Video Bit Rate: 32 Kbps to 16 Mbps |
| Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
| H.264 Type: Baseline profile,Main profile,High profile |
| H.265 Type: Main profile |
| Main Stream: [Panoramic channel] 50 Hz: 25 fps (3680 × 1656,3632 × 1632), 60 Hz: 30 fps (3680 × 1656，3632 × 1632) [PTZ channel] 50 Hz: 50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 60 fps (2688 × 1520, 2560 × 1440), 120 |
| Third Stream: [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),[Panoramic channel] No |
| Sub-Stream: [PTZ channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 576，640 × 480，352 × 288),[Panoramic channel] 50 Hz: 25 fps (1200 × 536、960x432), 60 Hz: 30 fps (1200 × 536、960x432) |
| Scalable Video Coding (SVC): H.264 and H.265 encoding |
| Region of Interest (ROI): 8 fixed regions for each stream |
| Environment Noise Filtering: Yes |
| Audio Sampling Rate: 8 kHz,16 kHz,32 kHz,48 kHz |
| Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3 |
| Audio Bit Rate: 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),64 Kbps (G.711),16 Kbps (G.726),16 Kbps (G.722.1),8-48 Kbps (PCM) |
| Network Storage: NAS (NFS, SMB/CIFS),auto network replenishment (ANR) |
| Protocols: IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,T CP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP |
| API: ONVIF (Profile S, Profile G, Profile T, Profile M),ISUP,ISAPI,SDK,OTAP |
| Security: Password protection,complicated password,HTTPS encryption,IP address filter,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2) |
| Simultaneous Live View: Up to 20 channels |
| User/Host: Up to 32 users. 3 user levels: administrator, operator, and user |
| Client: iVMS-4200,HikCentral Pro,Hik-Connect |
| Web Browser: Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+ |
| Wide Dynamic Range (WDR): [Bullet channel] 120 dB, [PTZ channel] 150 dB |
| Image Enhancement: HLC,3D DNR |
| Day/Night Switch: Day,night,auto,schedule |
| Image Parameters Switch: Yes |
| Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| SNR: ≥ 52 dB |
| Privacy Mask: [Panoramic channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable |
| Image Stabilization: EIS (Built-in gyroscope to improve EIS performance) |
| Defog: Optical defog |
| Regional Exposure: Yes |
| Regional Focus: [Panoramic channel] No, [PTZ channel] Yes |
| Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω |
| Alarm: 7 input(s), 2 output(s) |
| On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB . |
| Reset Key: Yes |
| Ethernet Interface: 1 RJ45 100M self-adaptive Ethernet port |
| Built-in Speaker: 1 built-in speaker |
| RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Smart Event: [Panoramic channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection |
| Basic Event: [PTZ channel & panoramic channel] alarm input and output, exception,[PTZ channel] motion detection, video tampering alarm |
| Linkage: [Panoramic channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send e |
| Face Capture: Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures |
| Perimeter Protection: Line crossing detection, region entrance detection, intrusion detection, region exiting detection |
| Multi-Target-Type Detection: Supports simultaneous detection and capture of human body, face and vehicle, Gets 7 face features, 14 human body features and 8 vehicle features |
| Face Comparison: Up to 10 face libraries. 30000 faces for each library. 150000 faces in total, Recognizes face identity via face modeling, grading and comparing to those in face library, Supports face library encryption |
| المادة : ADC12 |
| Startup and Operating Conditions: -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F) |
| Power: 36V, 2.5 A, PoE(802.3 bt), 42.5 to 57 V, 1.76 A |
| Dimension: Ø290 mm × 453.2 mm (Ø11.42" × 17.84") |
| Weight: Approx. 10.5 kg (23.15 lb.) |
| Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Tradition |
| Road Traffic and Vehicle Detection: Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Bl |
| Gyroscope: Yes |
| Satellite Positioning: No |
| Compass: No |
| Smart Tracking: Manual tracking, auto-tracking 3.0 |
| Object Tracking: Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support v |
| Wiper: Yes |
| Demist: Yes |
| Smart Linkage: Manual tracking, tracking takeover, linked tracking capture |
عام
| الموديل | DS-2SF8C442MXG1-ELW/26(F0) |
|---|
Key Features
- Captures a large area and great details at the same time
- High quality imaging with 6 MP resolution for bullet channel
- 24/7 colorful imaging and excellent low-light performance with DarkFighter 2.0 technology
- Panoramic channel tilt adjustable from 12° to 24°
- Secures an expansive area with 42 × optical zoom and 16 × digital zoom
- Expansive night view with up to 30 m white light distance and 300 m IR distance
- Supports deep learning functions
Best Fit Applications
Parking lots, compounds, factories, ports, city streets, large yards and building perimeters.
Technical Specifications
| Model | DS-2SF8C442MXG1-ELW/26(F0) |
| Camera | |
| Image Sensor | [Bullet channel] 1/2.5" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS |
| Shutter Time | 1 s to 1/30000 s |
| Min. Illumination | [Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light, [PTZ channel] Color: 0.0003 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 lux with IR |
| Slow Shutter | Yes |
| Day & Night | [Panoramic channel] Day,Night,Schedule,Auto, [PTZ channel] Day,Night,Schedule,Auto |
| Max. Resolution | [Panoramic channel] 3680 × 1656, [PTZ channel] 2688 × 1520 |
| Lens | |
| Zoom | [PTZ channel] 42 × optical, 16 × digital |
| FOV | [Panoramic channel] horizontal field of view: 190° ± 5°, vertical field of view: 50°±5°, [PTZ channel] horizontal field of view: 59° to 2°, vertical field of view: 34.2° to 1.1°, diagonal field of view: 67.1° to 2.3° |
| Focus | Auto,semi-auto,manual |
| Zoom Speed | [Panoramic channel] No, [PTZ channel] approx. 5.6 s |
| Focal Length | [Panoramic channel] 2.8 mm, [PTZ channel] 6 to 252 mm |
| Aperture | [Panoramic channel] F1.0, [PTZ channel] F1.3 |
| Illuminator | |
| Supplement Light Range | [Panoramic channel] white light: up to 30 m, [PTZ channel] IR: up to 300 m |
| Smart Supplement Light | Yes |
| PTZ | |
| Movement Range (Pan) | 360° endless |
| Movement Range (Tilt) | [Panoramic channel] 12° to 24°, [PTZ channel] -20° to 90° |
| Pan Speed | [PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s |
| Tilt Speed | [PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s,[Panoramic channel] tilt speed configurable |
| Proportional Pan | [Panoramic channel] No, [PTZ channel] Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Yes |
| Park Action | Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output |
| Video | |
| Main Stream | [Panoramic channel] 50 Hz: 25 fps (3680 × 1656,3632 × 1632), 60 Hz: 30 fps (3680 × 1656，3632 × 1632) [PTZ channel] 50 Hz: 50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 60 fps (2688 × 1520, 2560 × 1440), 120 |
| Sub-Stream | [PTZ channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 576，640 × 480，352 × 288),[Panoramic channel] 50 Hz: 25 fps (1200 × 536、960x432), 60 Hz: 30 fps (1200 × 536、960x432) |
| Third Stream | [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),[Panoramic channel] No |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline profile,Main profile,High profile |
| H.265 Type | Main profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Audio | |
| Audio Compression | G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3 |
| Audio Bit Rate | 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),64 Kbps (G.711),16 Kbps (G.726),16 Kbps (G.722.1),8-48 Kbps (PCM) |
| Audio Sampling Rate | 8 kHz,16 kHz,32 kHz,48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| API | ONVIF (Profile S, Profile G, Profile T, Profile M),ISUP,ISAPI,SDK,OTAP |
| Network Storage | NAS (NFS, SMB/CIFS),auto network replenishment (ANR) |
| Protocols | IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,T CP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Security | Password protection,complicated password,HTTPS encryption,IP address filter,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2) |
| Client | iVMS-4200,HikCentral Pro,Hik-Connect |
| Web Browser | Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+ |
| Image | |
| Wide Dynamic Range (WDR) | [Bullet channel] 120 dB, [PTZ channel] 150 dB |
| Day/Night Switch | Day,night,auto,schedule |
| Privacy Mask | [Panoramic channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable |
| Image Enhancement | HLC,3D DNR |
| Defog | Optical defog |
| Image Stabilization | EIS (Built-in gyroscope to improve EIS performance) |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Image Parameters Switch | Yes |
| SNR | ≥ 52 dB |
| Interface | |
| Built-in Speaker | 1 built-in speaker |
| Ethernet Interface | 1 RJ45 100M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB . |
| Alarm | 7 input(s), 2 output(s) |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset Key | Yes |
| Event | |
| Basic Event | [PTZ channel & panoramic channel] alarm input and output, exception,[PTZ channel] motion detection, video tampering alarm |
| Smart Event | [Panoramic channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection |
| Linkage | [Panoramic channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send e |
| Deep Learning Function | |
| Face Capture | Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures |
| Face Comparison | Up to 10 face libraries. 30000 faces for each library. 150000 faces in total, Recognizes face identity via face modeling, grading and comparing to those in face library, Supports face library encryption |
| Multi-Target-Type Detection | Supports simultaneous detection and capture of human body, face and vehicle, Gets 7 face features, 14 human body features and 8 vehicle features |
| Perimeter Protection | Line crossing detection, region entrance detection, intrusion detection, region exiting detection |
| General | |
| Regional Exposure | Yes |
| Regional Focus | [Panoramic channel] No, [PTZ channel] Yes |
| Satellite Positioning | No |
| Gyroscope | Yes |
| Compass | No |
| Road Traffic and Vehicle Detection | Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Bl |
| Smart Tracking | Manual tracking, auto-tracking 3.0 |
| Smart Linkage | Manual tracking, tracking takeover, linked tracking capture |
| Object Tracking | Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support v |
| Power | 36V, 2.5 A, PoE(802.3 bt), 42.5 to 57 V, 1.76 A |
| Startup and Operating Conditions | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F) |
| Wiper | Yes |
| Demist | Yes |
| Material | ADC12 |
| Dimension | Ø290 mm × 453.2 mm (Ø11.42" × 17.84") |
| Weight | Approx. 10.5 kg (23.15 lb.) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Tradition |
الخصائص
| Image Sensor | [Bullet channel] 1/2.5" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS |
|---|---|
| Min. Illumination | [Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light, [PTZ channel] Color: 0.0003 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 lux with IR |
| Shutter Time | 1 s to 1/30000 s |
| Slow Shutter | Yes |
| Day & Night | [Panoramic channel] Day,Night,Schedule,Auto, [PTZ channel] Day,Night,Schedule,Auto |
| Max. Resolution | [Panoramic channel] 3680 × 1656, [PTZ channel] 2688 × 1520 |
| Focal length | [Panoramic channel] 2.8 mm, [PTZ channel] 6 to 252 mm |
| Aperture | [Panoramic channel] F1.0, [PTZ channel] F1.3 |
| Focus | Auto,semi-auto,manual |
| FOV | [Panoramic channel] horizontal field of view: 190° ± 5°, vertical field of view: 50°±5°, [PTZ channel] horizontal field of view: 59° to 2°, vertical field of view: 34.2° to 1.1°, diagonal field of view: 67.1° to 2.3° |
| Zoom | [PTZ channel] 42 × optical, 16 × digital |
| Zoom Speed | [Panoramic channel] No, [PTZ channel] approx. 5.6 s |
| Supplement Light Range | [Panoramic channel] white light: up to 30 m, [PTZ channel] IR: up to 300 m |
| Smart Supplement Light | Yes |
| Movement Range (Pan) | 360° endless |
| Movement Range (Tilt) | [Panoramic channel] 12° to 24°, [PTZ channel] -20° to 90° |
| Pan Speed | [PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s |
| Tilt Speed | [PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s,[Panoramic channel] tilt speed configurable |
| Proportional Pan | [Panoramic channel] No, [PTZ channel] Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Yes |
| Park Action | Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline profile,Main profile,High profile |
| H.265 Type | Main profile |
| Main Stream | [Panoramic channel] 50 Hz: 25 fps (3680 × 1656,3632 × 1632), 60 Hz: 30 fps (3680 × 1656，3632 × 1632) [PTZ channel] 50 Hz: 50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 60 fps (2688 × 1520, 2560 × 1440), 120 |
| Third Stream | [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),[Panoramic channel] No |
| Sub-Stream | [PTZ channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 576，640 × 480，352 × 288),[Panoramic channel] 50 Hz: 25 fps (1200 × 536、960x432), 60 Hz: 30 fps (1200 × 536、960x432) |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz,16 kHz,32 kHz,48 kHz |
| Audio Compression | G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3 |
| Audio Bit Rate | 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),64 Kbps (G.711),16 Kbps (G.726),16 Kbps (G.722.1),8-48 Kbps (PCM) |
| Network Storage | NAS (NFS, SMB/CIFS),auto network replenishment (ANR) |
| Protocols | IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,T CP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP |
| API | ONVIF (Profile S, Profile G, Profile T, Profile M),ISUP,ISAPI,SDK,OTAP |
| Security | Password protection,complicated password,HTTPS encryption,IP address filter,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2) |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Client | iVMS-4200,HikCentral Pro,Hik-Connect |
| Web Browser | Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+ |
| Wide Dynamic Range (WDR) | [Bullet channel] 120 dB, [PTZ channel] 150 dB |
| Image Enhancement | HLC,3D DNR |
| Day/Night Switch | Day,night,auto,schedule |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| SNR | ≥ 52 dB |
| Privacy Mask | [Panoramic channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable |
| Image Stabilization | EIS (Built-in gyroscope to improve EIS performance) |
| Defog | Optical defog |
| Regional Exposure | Yes |
| Regional Focus | [Panoramic channel] No, [PTZ channel] Yes |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω |
| Alarm | 7 input(s), 2 output(s) |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB . |
| Reset Key | Yes |
| Ethernet Interface | 1 RJ45 100M self-adaptive Ethernet port |
| Built-in Speaker | 1 built-in speaker |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Smart Event | [Panoramic channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection |
| Basic Event | [PTZ channel & panoramic channel] alarm input and output, exception,[PTZ channel] motion detection, video tampering alarm |
| Linkage | [Panoramic channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send e |
| Face Capture | Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures |
| Perimeter Protection | Line crossing detection, region entrance detection, intrusion detection, region exiting detection |
| Multi-Target-Type Detection | Supports simultaneous detection and capture of human body, face and vehicle, Gets 7 face features, 14 human body features and 8 vehicle features |
| Face Comparison | Up to 10 face libraries. 30000 faces for each library. 150000 faces in total, Recognizes face identity via face modeling, grading and comparing to those in face library, Supports face library encryption |
| المادة | ADC12 |
| Startup and Operating Conditions | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F) |
| Power | 36V, 2.5 A, PoE(802.3 bt), 42.5 to 57 V, 1.76 A |
| Dimension | Ø290 mm × 453.2 mm (Ø11.42" × 17.84") |
| Weight | Approx. 10.5 kg (23.15 lb.) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Tradition |
| Road Traffic and Vehicle Detection | Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Bl |
| Gyroscope | Yes |
| Satellite Positioning | No |
| Compass | No |
| Smart Tracking | Manual tracking, auto-tracking 3.0 |
| Object Tracking | Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support v |
| Wiper | Yes |
| Demist | Yes |
| Smart Linkage | Manual tracking, tracking takeover, linked tracking capture |
![[DS-2CD2087G3-LIY] Hikvision DS-2CD2087G3-LIY 8 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera](/web/image/product.template/2982/image_512)
![[DS-2CD2347G2H-LI] Hikvision DS-2CD2347G2H-LI 4 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera](/web/image/product.template/2963/image_512)
![[DS-2CD2367G2P-LSU/SL] Hikvision DS-2CD2367G2P-LSU/SL 6 MP Panoramic Fixed Turret Network Camera](/web/image/product.template/2959/image_512)
![[DS-2CD2625FHWD-IZS] Hikvision DS-2CD2625FHWD-IZS 2 MP IR Varifocal Bullet Network Camera](/web/image/product.template/2955/image_512)
![[DS-2CD2665G0-IZS] Hikvision DS-2CD2665G0-IZS 6 MP IR Varifocal Bullet Network Camera](/web/image/product.template/2954/image_512)
![[DS-2CD2T83G2-2I] Hikvision DS-2CD2T83G2-2I 8 MP AcuSense Fixed Bullet Network Camera](/web/image/product.template/2956/image_512)
![[DS-2CD3043G2-IU] Hikvision DS-2CD3043G2-IU 4 MP WDR Fixed Bullet Network Camera](/web/image/product.template/2989/image_512)
![[DS-2CD3051G0-I] Hikvision DS-2CD3051G0-I 5 MP IR Fixed Bullet Network Camera](/web/image/product.template/2991/image_512)
![[DS-2SF8C442MXG1-ELW/26(F0)] Hikvision DS-2SF8C442MXG1-ELW/26(F0) TandemVu 6 MP Panoramic + 4 MP 42X DarkFighter PTZ Camera](/web/image/product.template/2983/image_256)
هل تحتاج مساعدة في الاختيار؟
هل تريد معرفة المزيد؟
تحدث مع مختص من Do Link لتحديد المواصفات المناسبة، والتكامل، والدعم الميداني.
