كود المنتج:
DS-K1T341CMF

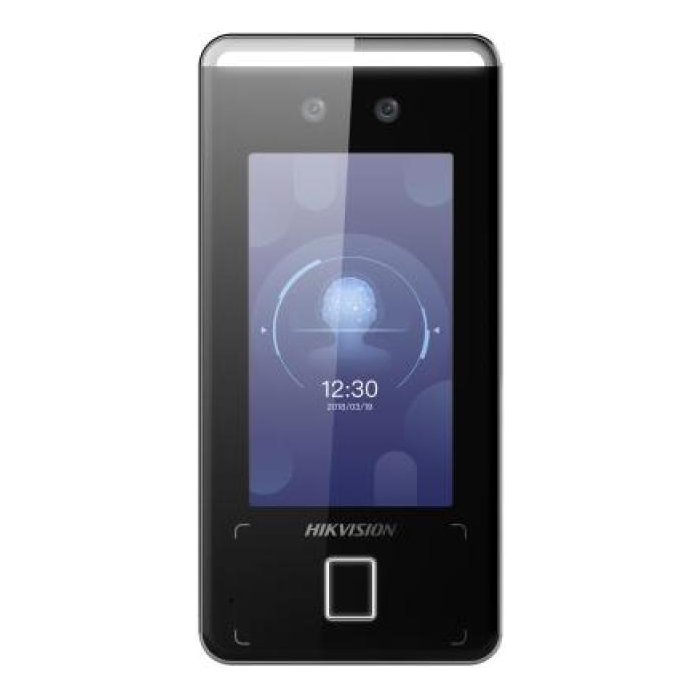

Hikvision DS-K1T341CMF Value Series Face Access Terminal with Fingerprint & Card
Hikvision DS-K1T341CMF Value Series Face Access Terminal with Fingerprint & Card من منتجات جهاز تحكم في الدخول. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A Hikvision access control product for secure door entry and attendance systems.
- Deep learning algorithm
- 4.3-inch capacitive touch screen, 2 MP wide-angle dual-lens
- 3,000 face capacity, 3,000 card capacity, 3,000 fingerprint capacity and 150,000 event capacity
- Multiple authentication modes, including face, fingerprint and card, etc
- Face recognition duration ＜ 0.2 s/User
عام
| الموديل | DS-K1T341CMF |
|---|
Key Features
- Deep learning algorithm
- 4.3-inch capacitive touch screen, 2 MP wide-angle dual-lens
- 3,000 face capacity, 3,000 card capacity, 3,000 fingerprint capacity and 150,000 event capacity
- Multiple authentication modes, including face, fingerprint and card, etc
- Face recognition duration ＜ 0.2 s/User
- Supports mask wearing detection
- Connects to external access controller or Wiegand card reader via Wiegand protocol
Best Fit Applications
Offices, companies, factories, schools, hospitals, residential buildings and server rooms.
Technical Specifications
| Model | DS-K1T341CMF |
|---|---|
| Screen size | 4.3 inch |
| Operation method | Capacitive touch screen |
| Resolution | 2 MP (video stream: 720P) |
| FOV | HFOV = 41.5°; VFOV = 75.5°; DFOV = 87° |
| Audio quality | Noise suppression and echo cancellation |
| Wired network | Support |
| Network interface | 1 RJ-45, 10/100 M self-adaptive |
| Lock control | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| TAMPER | 1 |
| RS-485 | 1,RS-485 (Half duplex,HIKVISION） |
| Wiegand | 1,Wiegand （Hik 26bit,Hik 34bit） |
| USB | 1 |
| Card type | M1 card |
| Built-in access controller | Support |
| Power supply | 12 VDC to 24 VDC, 2 A |
| Power consumption | ≤ 10 W |
| Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Protective level | IP65 |
| Hik-Connect | Support |
| QR code recognition | Support |
| Face anti-spoofing | Support |

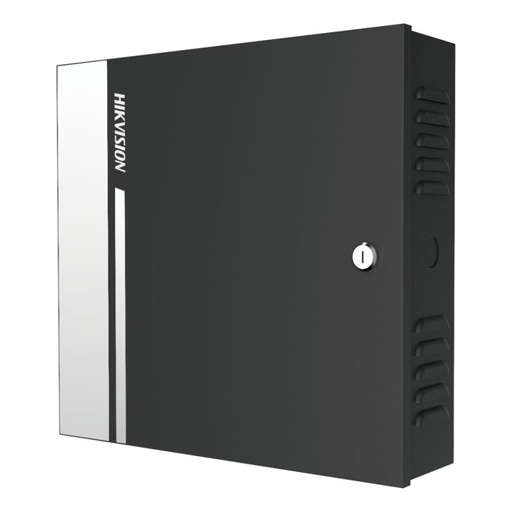

![[DS-K7M-AW100] Hikvision DS-K7M-AW100 100W Access Control Power Box](/web/image/product.template/2977/image_512)

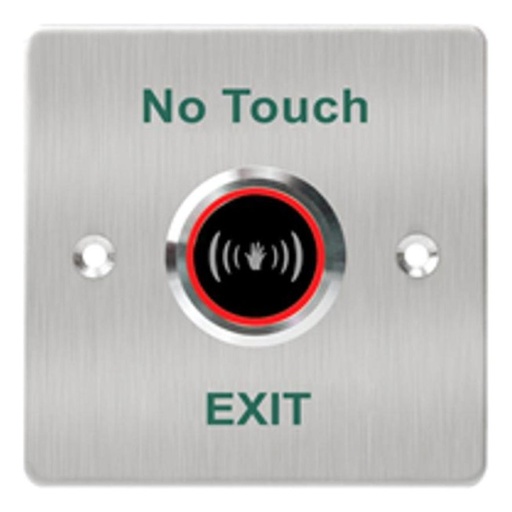

![[DS-K7P03A] Hikvision DS-K7P03A Touchless Exit & Emergency Push Button](/web/image/product.template/2976/image_512)
