NVRs

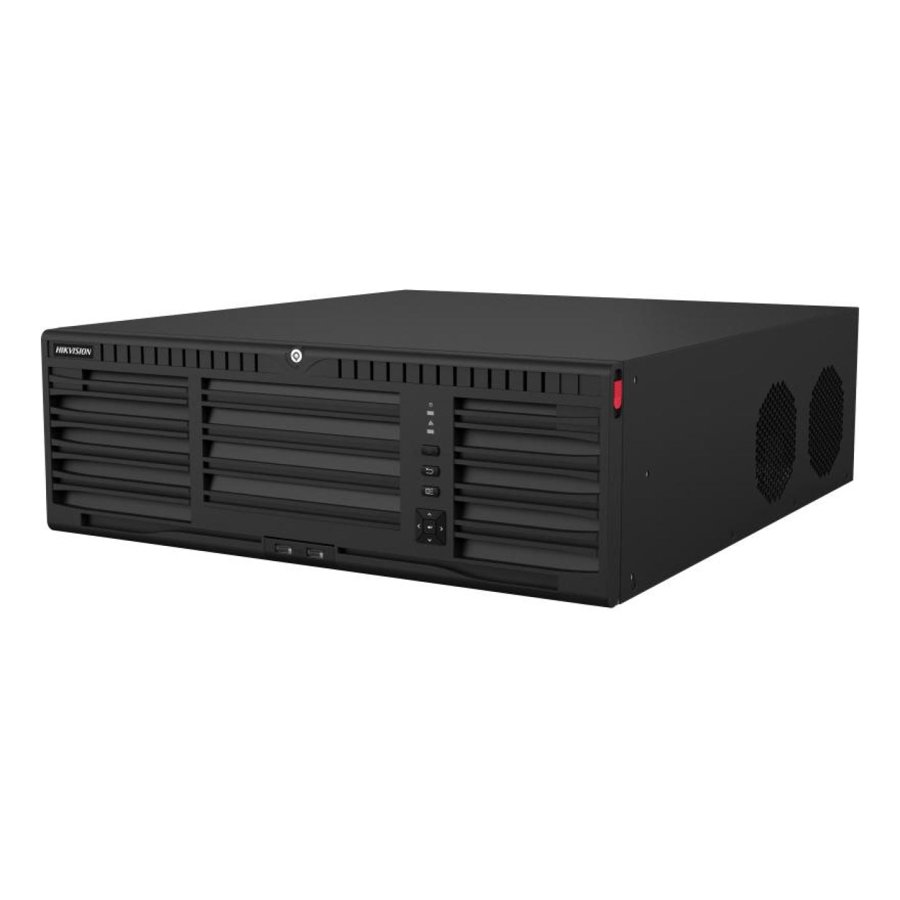

Hikvision DS-9664NI-M16/R 64-ch 2U 8K NVR (Redundant Power)

الموديل DS-9664NI-M16/R
  1. كافة المنتجات
  2. كافة المنتجات
  3. Hikvision DS-9664NI-M16/R 64-ch 2U 8K NVR (Redundant Power)
End User
Hikvision DS-9664NI-M16/R 64-ch 2U 8K NVR (Redundant Power)
كود المنتج: DS-9664NI-M16/R
Hikvision

Hikvision DS-9664NI-M16/R 64-ch 2U 8K NVR (Redundant Power)

Hikvision DS-9664NI-M16/R 64-ch 2U 8K NVR (Redundant Power) من منتجات جهاز تسجيل شبكي NVR. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.

https://dolinkegypt.com/web/image/product.template/2993/image_1920?unique=8d577aa

A Hikvision network video recorder for recording, playback and remote viewing of IP cameras, with HDD storage and Hik-Connect support.

  • Up to 64-ch IP camera inputs
  • Up to 40 x 1080p@ 30fps decoding capacity
  • Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
  • 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
  • Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and

هذه التركيبة غير موجودة.

  • أجهزة تسجيل كاميرات IP
  • ضمان سنة من تاريخ الشراء
  • دعم فني قبل وبعد البيع
  • توصيل سريع لجميع محافظات مصر
  • دفع آمن عند الاستلام أو في الفرع
تواصل معنا

الشروط والأحكام
ضمان إرجاع الأموال خلال 30 يوماً
الشحن: 2-3 أيام عمل

مشاركة

عام
الموديل DS-9664NI-M16/R

Key Features

  • Up to 64-ch IP camera inputs
  • Up to 40 x 1080p@ 30fps decoding capacity
  • Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
  • 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
  • Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and
  • Advanced streaming technology enables smooth live view in poor network conditions
  • Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks

Best Fit Applications

CCTV systems for offices, shops, warehouses, factories, hotels, hospitals, schools and compounds.

Technical Specifications

ModelDS-9664NI-M16/R
IP Video Input64-ch
Incoming Bandwidth400 Mbps
Outgoing Bandwidth400 Mbps
HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA 1 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output ModeHDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding FormatH.265/H.265+/H.264/H.264+
Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: The NVR supports up to 8-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP.
Synchronous playback16-ch
Decoding Capability2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 5-ch@16MP (30 fps); 6-ch@12MP (30 fps);10-ch@8 MP (30 fps); 13-ch@6 MP (30 fps);16-ch@5 MP (30 fps);40-ch@2 MP(30 fps)
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access ProtocolONVIF(Version 2.5), RTSP
RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10
Serial Interface1 RS-485 (full-duplex), 1 RS-232
SATA16 SATA interfaces supporting hot-plug
ESATA1 eSATA interface
CapacityUp to 16 TB capacity for each disk
Alarm In/Out16/9
USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
Ctrl 12VControllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.
DC 12V12 VDC, 1 A power output
Power Supply100 to 240 VAC, 50 to 60 Hz, redundant power supply
