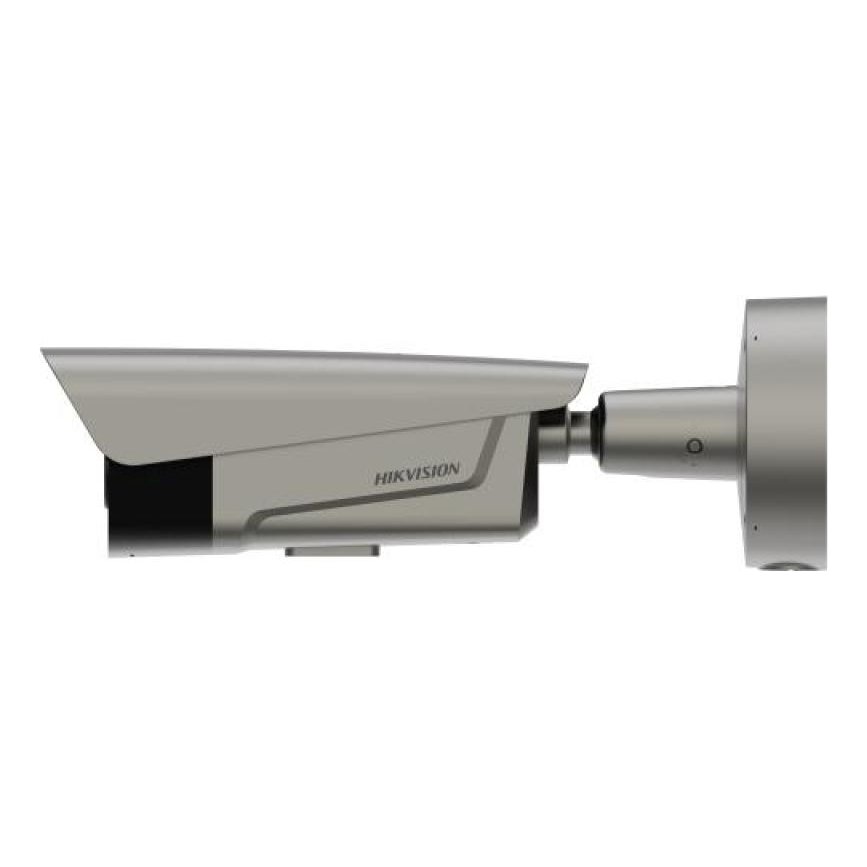

Hikvision DS-TCG406-E 4 MP Access ANPR Camera

• Image Sensor
  • 1/1.8" Progressive Scan CMOS
• Min. Illumination
  • Color: 0.0005 Lux @ (F1.2, AGC ON) B/W: 0.0001 Lux @ (F1.2, AGC ON) 0 Lux with IR
• Shutter Time
  • 1/30 s to 1/100,000 s
• Max. Resolution
  • 2688 × 1520
• Lens Type
  • 2.8 to 12 mm 8 to 32 mm
• Aperture
  • 2.8 to 12 mm: F1.2 to F2.5 8 to 32 mm: F1.7 to F1.73
• Focus
  • Auto，Vari-focal lens, motor-driven lens
• Focal Length & FOV
  • 2.8 to 12 mm, horizontal FoV: 114.5° to 41.8°, vertical FoV: 59.3° to 23.6°, diagonal FoV: 141.1° to 48°, 8 to 32 mm, horizontal FoV: 42.5° to 15.1°, vertical FoV: 23.3° to 8.64°, diagonal FoV: 49.6° to 17.3°
• Supplement Light Type
  • IR Light, Warm White Light
• Supplement Light Range
  • Video: 2.8 mm to 12 mm: 25 m 8 mm to 32 mm: 50 m Vehicle License Plate: 2.8 mm to 12 mm: 10 m 8 mm to 32 mm: 20 m
• IR Wavelength
  • Warm White Light 3000 K, IR Light 850 nm
• IR Cut Filter
  • IR cut filter Blue glass module to reduce ghost phenomenon
• Video Bit Rate
  • 32 Kbps to 16 Mbps
• Video Compression
  • Main stream: H.265/H.264/MJPEG, Sub-stream: H.265/H.264/MJPEG,
• H.264 Type
  • Low profile Medium profile High Profile
• Main Stream
  • 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream
  • 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Scalable Video Coding (SVC)
  • H.265 and H.264 encoding
• Frame Rate
  • 25 fps (P)/30 fps (N)
• ROI
  • 8 regions respectively for main stream and sub-stream, 6 levels for each region.
• Bit Rate Type
  • Constant, Variable
• Network Storage
  • NAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• API
  • Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP, Otap, Guarding Vision Platform
• Security
  • Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings,
• Client
  • Hik-Central，SDKdemo，PMS Hik-Connect,
• Web Browser
  • Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+
• Protocol
  • TCP/IP, ICMP, HTTP, HTTPS, FTP Upload Picture, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SNMP, IGMP, QoS, IPv6, UDP, SSL/TLS, WebSocket,SRTP
• Wide Dynamic Range (WDR)
  • 140 dB
• Day/Night Switch
  • Supported
• Image Parameters Switch
  • Yes
• Image Settings
  • Saturation: 0 to 100 Brightness: 0 to 100 Contrast: 0 to 100 Gain: 0 to 100 3D DNR: Off, Normal, and Expert modes are selectable. White balance: White Balance 1 and White Balance 2 are selectable.
• Image Format
  • JPEG
• WDR Switch
  • On, Time, Brightness
• Audio
  • 1 input (line in), 1 output (line out)
• RS-485
  • 1-ch RS-485 serial port
• Wiegand
  • Supported: CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit
• Relay Output
  • 2-ch relay output, supporting opening and closing of barrier gates
• Alarm Input
  • 3-ch triggered inputs
• Alarm Output
  • 1-ch alarm output
• RS-232
  • 1-ch RS-232 serial port
• Memory Card Slot
  • 1 TF card slot, up to 1 TB
• LPR Accuracy
  • Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98.5% Capture rate ≥99% Driving direction accuracy rate ≥98%
• ANPR Supported Country/Regio n
  • 6 areas ( Asia, Africa, America, Europe, Oceania, Russian-Speaking Regions) and more than （Statistical 130+ countries/regions quantity includes baseline version and customized version.） Asia: Hong Kong( China), Macau( China), Taiwan( China), Japan, S
• Smart Event
  • ANPR, Motor Vehicle Feature, Vehicle Color Recognition, Enable Vehicle Manufacturer Recognition
• License Plate
  • Forward, Backward, Bidirection
• Vehicle Type
  • Car/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle
• Vehicle Color
  • Red, Yellow (including orange, golden), Green, Cyan, Blue, Purple, Pink, Brown, White, Gray (including silver), Black
• Vehicle Brand
  • 84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Ro
• Trigger Type
  • Video Detection, I/O Coil, Radar Mixed Traffic
• Picture Type
  • Scene Picture, Scene Picture + Close-up Picture
• Scene Mode
  • Entrance & Exit Toll Gate, Underground Parking Entrance & Exit
• Capture Type
  • Strobe Light Mode
• Capture Resolution
  • 2688 × 1520
• LED Control
  • Supports automatic light control/time control of LEDs
• Capture Picture Overlay
  • Location, Capture Time, Plate Number, Capture No., Vehicle Color Vehicle Type
• Barrier Gate Control Mode
  • By Camera/Platform
• Keep Boom Pole Open for Following Vehicle
  • Enable/Disable
• Lock Barrier Gate for Large-Sized Vehicle
  • Yes
• Barrier Gate Status
  • None, Barrier Gate Close In Place, Barrier Gate Open In Place, Remote Control Open In Place
• Allowlist and Blocklist
  • Up to 100,000 allowlist and blocklist totally
• Startup and Operating Conditions
  • Temperature: -30 °C to 70 °C (-22 °F to 158 °F) Humidity: 95% (non-condensing)
• Power Supply
  • 12 to 24 VDC/PoE (802.3af, 44 V to 57 V), 300 mA to 230 mA
• Protection
  • IK10 (IEC 62262: 2002), IP67 (IEC 60529-2013)
• Dimension
  • 415 mm × 145 mm × 145 mm (16.34 × 5.71 × 5.71 inch)
• Weight
  • 3.25 kg (7.17 lb.)
• Package Dimension
  • 465 mm × 200 mm × 198 mm (18.31 × 7.87 × 7.80 inch)
• With Package Weight
  • 4.3 kg (9.48 lb.)
• Storage Conditions
  • Temperature: -20 °C to 70 °C (- 4°F to 158 °F) Humidity: 95% (non-condensing)
• Language
  • 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Tradition
• Working Consumption
  • 10 W Max.
