كود المنتج:
DS-2DF8442IXS-AEL

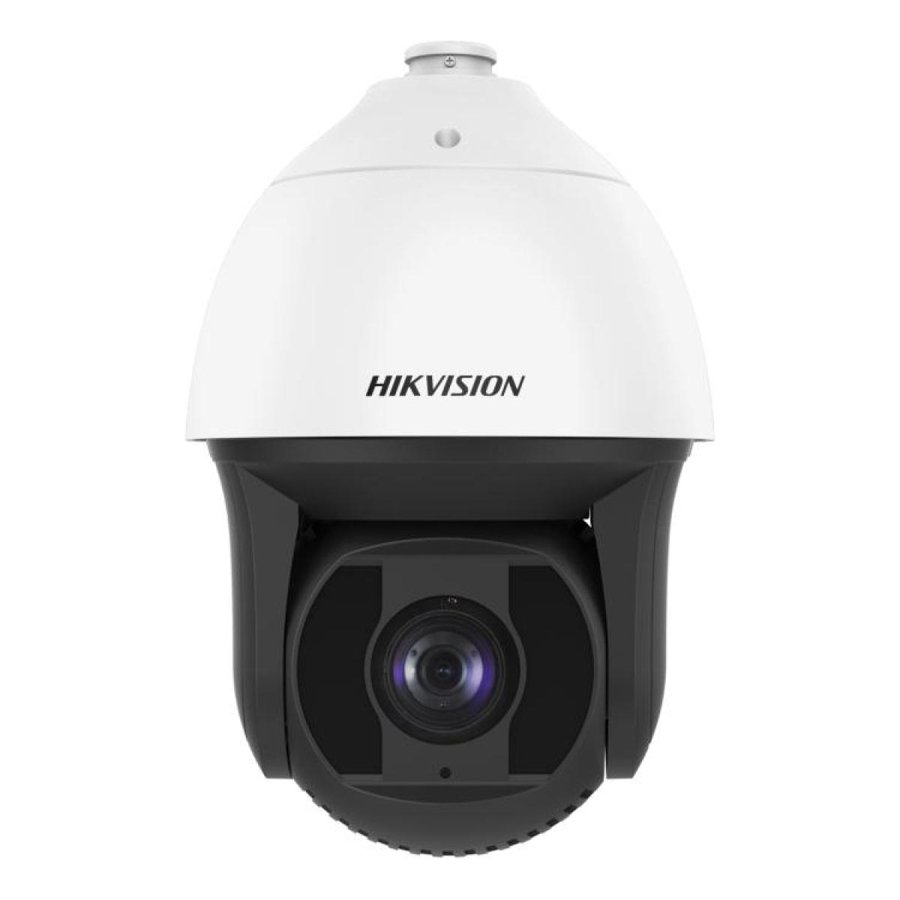

Hikvision DS-2DF8442IXS-AEL 4 MP 42X DarkFighter IR Network Speed Dome
Hikvision DS-2DF8442IXS-AEL 4 MP 42X DarkFighter IR Network Speed Dome من منتجات كاميرا متحركة PTZ. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A Hikvision network PTZ camera with optical zoom, pan / tilt control and long-range night vision, for wide-area surveillance.
- 1/1.8" Progressive Scan CMOS
- High quality imaging with 4 MP resolution
- Excellent low-light performance with DarkFighter technology
- 42× optical zoom and 16× digital zoom provide close up views over expansive areas
- Expansive night view with up to 400 m IR distance
4MP Super HD
H.265+ Smart Codec
WDR 140 dB
IR Night Vision
Low Light
PTZ Pan Tilt Zoom
SD Card up to 256 GB
| Image Sensor: 1/1.8" progressive scan CMOS |
| Min. Illumination: Color: 0.001 Lux @ (F1.2, AGC ON), B/W: 0.0005 Lux @ (F1.2，AGC ON), 0 Lux with IR |
| Shutter Time: 1/1 s to 1/30,000 s |
| Day & Night: IR cut filter |
| Max. Resolution: 2560 × 1440 |
| Focal length: 6.0 mm to 252 mm |
| Aperture: Max. F1.2 |
| Focus: Auto, semi-auto, manual, rapid focus |
| FOV: Horizontal field of view: 56.6° to 1.7° (wide-tele), Vertical field of view: 33.7° to 0.9° (wide-tele), Diagonal field of view: 63.4° to 1.9° (wide-tele) |
| Zoom: 42x optical, 16x digital |
| Zoom Speed: Approx. 4.5 s (optical, wide-tele) |
| Supplement Light Type: IR |
| Supplement Light Range: Up to 400 m |
| Smart Supplement Light: Yes |
| Movement Range (Pan): 360° |
| Movement Range (Tilt): -20° to 90° (auto flip) |
| Pan Speed: Pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s |
| Tilt Speed: Tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s |
| Proportional Pan: Yes |
| Presets: 300 |
| Patrol Scan: 8 patrols, up to 32 presets for each patrol |
| Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory: Yes |
| Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| PTZ Status Display: Yes |
| Preset Freezing: Yes |
| Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Video Compression: Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| H.264 Type: Baseline Profile/Main Profile/High Profile |
| H.265 Type: Main profile |
| Main Stream: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Scalable Video Coding (SVC): H.264 and H.265 encoding |
| Region of Interest (ROI): 8 fixed regions for each stream |
| Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
| Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32~192 Kbps (MP2L2) |
| Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour |
| API: ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T) |
| Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security aud |
| Simultaneous Live View: Up to 20 channels |
| User/Host: Up to 32 users. 3 levels: Administrator, Operator and User |
| Client: HikCentral, iVMS-4200, Hik-Connect |
| Web Browser: IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
| Wide Dynamic Range (WDR): 140 dB WDR |
| Image Enhancement: BLC, HLC, 3D DNR |
| Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Privacy Mask: Up to 24 masks, polygon region, mosaic mask, mask color configurable |
| Image Stabilization: Yes. Built-in gyroscope to improve EIS performance. |
| Defog: Optical Defog |
| Regional Exposure: Yes |
| Regional Focus: Yes |
| Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Alarm: 7 inputs, 2 outputs |
| Video Output: 1.0V[p-p]/75Ω, PAL, NTSC, BNC connector |
| On-Board Storage: Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB |
| Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port; Hi-PoE |
| RS-485: HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Basic Event: Motion detection, video tampering alarm, alarm input and output, exception |
| Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,and PTZ actions (such as preset, patrol scan, pattern scan) |
عام
| الموديل | DS-2DF8442IXS-AEL |
|---|
Key Features
- 1/1.8" Progressive Scan CMOS
- High quality imaging with 4 MP resolution
- Excellent low-light performance with DarkFighter technology
- 42× optical zoom and 16× digital zoom provide close up views over expansive areas
- Expansive night view with up to 400 m IR distance
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Supports face capture to detect, capture, grade, and select faces in motion
Best Fit Applications
Parking lots, compounds, factories, ports, city streets, large yards and building perimeters.
Technical Specifications
| Model | DS-2DF8442IXS-AEL |
| Camera | |
| Image Sensor | 1/1.8" progressive scan CMOS |
| Min. Illumination | Color: 0.001 Lux @ (F1.2, AGC ON), B/W: 0.0005 Lux @ (F1.2，AGC ON), 0 Lux with IR |
| Shutter Time | 1/1 s to 1/30,000 s |
| Day & Night | IR cut filter |
| Max. Resolution | 2560 × 1440 |
| Lens | |
| Zoom | 42x optical, 16x digital |
| Focus | Auto, semi-auto, manual, rapid focus |
| Focal Length | 6.0 mm to 252 mm |
| Zoom Speed | Approx. 4.5 s (optical, wide-tele) |
| FOV | Horizontal field of view: 56.6° to 1.7° (wide-tele), Vertical field of view: 33.7° to 0.9° (wide-tele), Diagonal field of view: 63.4° to 1.9° (wide-tele) |
| Aperture | Max. F1.2 |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 400 m |
| Smart Supplement Light | Yes |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -20° to 90° (auto flip) |
| Pan Speed | Pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Yes |
| Park Action | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Video | |
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Audio | |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32~192 Kbps (MP2L2) |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour |
| API | ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T) |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 levels: Administrator, Operator and User |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security aud |
| Client | HikCentral, iVMS-4200, Hik-Connect |
| Web Browser | IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
| Image | |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Defog | Optical Defog |
| Image Enhancement | BLC, HLC, 3D DNR |
| Wide Dynamic Range (WDR) | 140 dB WDR |
| Image Stabilization | Yes. Built-in gyroscope to improve EIS performance. |
| Regional Exposure | Yes |
| Regional Focus | Yes |
| Privacy Mask | Up to 24 masks, polygon region, mosaic mask, mask color configurable |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port; Hi-PoE |
| On-Board Storage | Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB |
| Alarm | 7 inputs, 2 outputs |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Video Output | 1.0V[p-p]/75Ω, PAL, NTSC, BNC connector |
| RS-485 | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Event | |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,and PTZ actions (such as preset, patrol scan, pattern scan) |
| Basic Event | Motion detection, video tampering alarm, alarm input and output, exception |
الخصائص
| Image Sensor | 1/1.8" progressive scan CMOS |
|---|---|
| Min. Illumination | Color: 0.001 Lux @ (F1.2, AGC ON), B/W: 0.0005 Lux @ (F1.2，AGC ON), 0 Lux with IR |
| Shutter Time | 1/1 s to 1/30,000 s |
| Day & Night | IR cut filter |
| Max. Resolution | 2560 × 1440 |
| Focal length | 6.0 mm to 252 mm |
| Aperture | Max. F1.2 |
| Focus | Auto, semi-auto, manual, rapid focus |
| FOV | Horizontal field of view: 56.6° to 1.7° (wide-tele), Vertical field of view: 33.7° to 0.9° (wide-tele), Diagonal field of view: 63.4° to 1.9° (wide-tele) |
| Zoom | 42x optical, 16x digital |
| Zoom Speed | Approx. 4.5 s (optical, wide-tele) |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 400 m |
| Smart Supplement Light | Yes |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -20° to 90° (auto flip) |
| Pan Speed | Pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Yes |
| Park Action | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main profile |
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32~192 Kbps (MP2L2) |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour |
| API | ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T) |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security aud |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 levels: Administrator, Operator and User |
| Client | HikCentral, iVMS-4200, Hik-Connect |
| Web Browser | IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
| Wide Dynamic Range (WDR) | 140 dB WDR |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Privacy Mask | Up to 24 masks, polygon region, mosaic mask, mask color configurable |
| Image Stabilization | Yes. Built-in gyroscope to improve EIS performance. |
| Defog | Optical Defog |
| Regional Exposure | Yes |
| Regional Focus | Yes |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Alarm | 7 inputs, 2 outputs |
| Video Output | 1.0V[p-p]/75Ω, PAL, NTSC, BNC connector |
| On-Board Storage | Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port; Hi-PoE |
| RS-485 | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Basic Event | Motion detection, video tampering alarm, alarm input and output, exception |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,and PTZ actions (such as preset, patrol scan, pattern scan) |
![[DS-2CD2087G3-LIY] Hikvision DS-2CD2087G3-LIY 8 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera](/web/image/product.template/2982/image_512)
![[DS-2CD2347G2H-LI] Hikvision DS-2CD2347G2H-LI 4 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera](/web/image/product.template/2963/image_512)
![[DS-2CD2367G2P-LSU/SL] Hikvision DS-2CD2367G2P-LSU/SL 6 MP Panoramic Fixed Turret Network Camera](/web/image/product.template/2959/image_512)
![[DS-2CD2625FHWD-IZS] Hikvision DS-2CD2625FHWD-IZS 2 MP IR Varifocal Bullet Network Camera](/web/image/product.template/2955/image_512)
![[DS-2CD2665G0-IZS] Hikvision DS-2CD2665G0-IZS 6 MP IR Varifocal Bullet Network Camera](/web/image/product.template/2954/image_512)
![[DS-2CD2T83G2-2I] Hikvision DS-2CD2T83G2-2I 8 MP AcuSense Fixed Bullet Network Camera](/web/image/product.template/2956/image_512)
![[DS-2CD3043G2-IU] Hikvision DS-2CD3043G2-IU 4 MP WDR Fixed Bullet Network Camera](/web/image/product.template/2989/image_512)
![[DS-2CD3051G0-I] Hikvision DS-2CD3051G0-I 5 MP IR Fixed Bullet Network Camera](/web/image/product.template/2991/image_512)
![[DS-2DF8442IXS-AEL] Hikvision DS-2DF8442IXS-AEL 4 MP 42X DarkFighter IR Network Speed Dome](/web/image/product.template/2967/image_256)
هل تحتاج مساعدة في الاختيار؟
هل تريد معرفة المزيد؟
تحدث مع مختص من Do Link لتحديد المواصفات المناسبة، والتكامل، والدعم الميداني.
