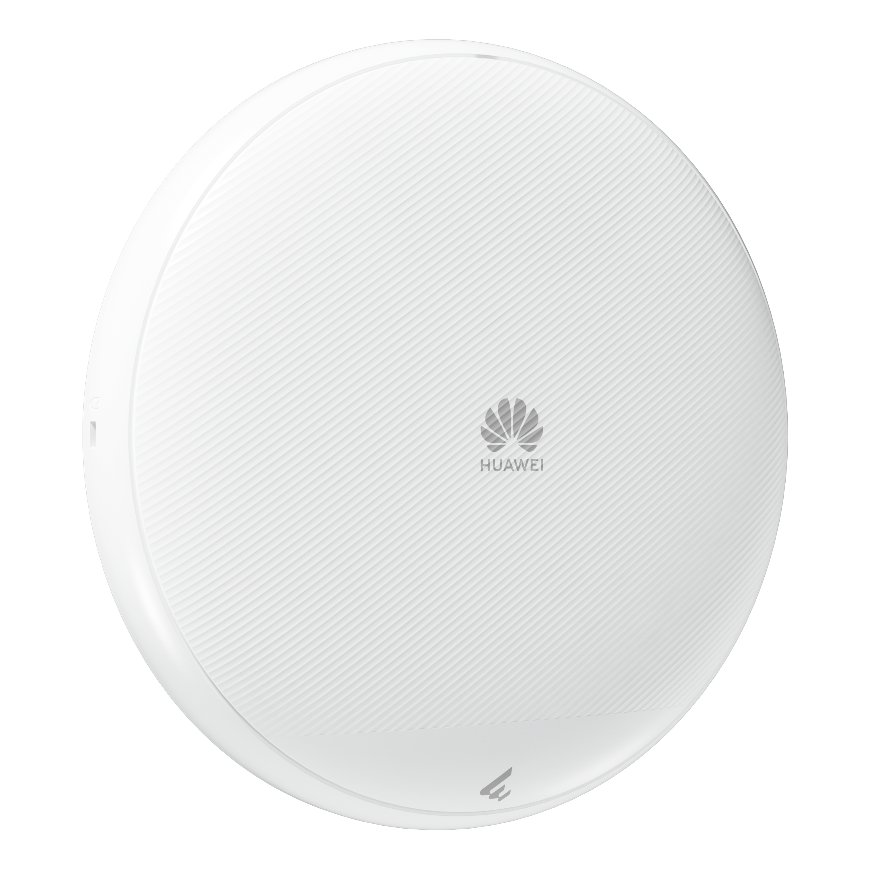

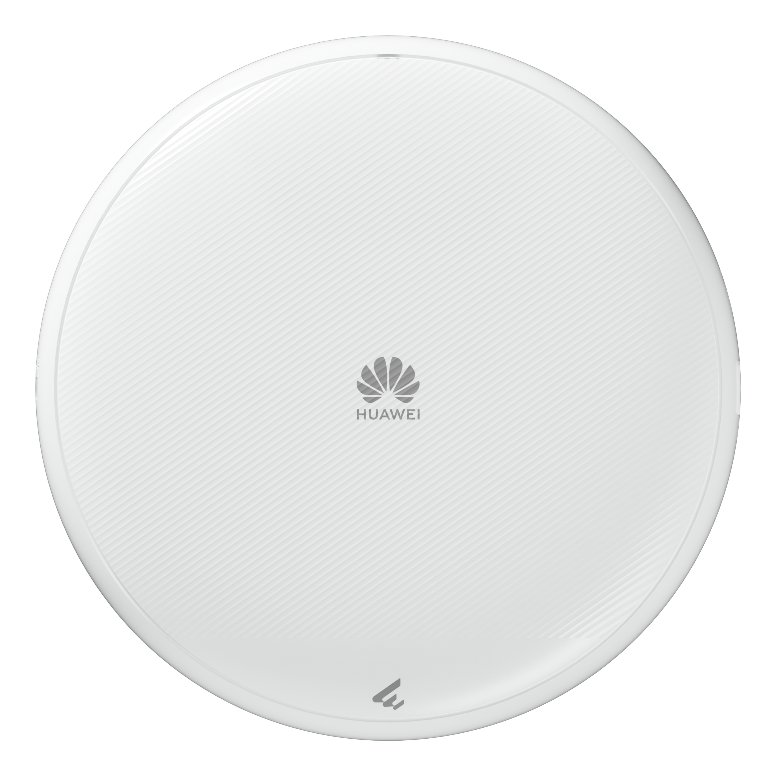

Huawei eKitEngine AP673 Indoor Wi-Fi 7 Access Point, 13.66 Gbps
Huawei eKitEngine AP673 Indoor Wi-Fi 7 Access Point, 13.66 Gbps من منتجات نقطة وصول لاسلكية. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A Huawei eKit enterprise Wi-Fi access point for offices, hotels, shops, schools and outdoor areas, with cloud management through the HUAWEI eKit app.
- AP673(11be indoor, 2+2+4 tri bands, smart antenna, USB)
عام
| الموديل | AP673 |
|---|
Key Features
- AP673(11be indoor, 2+2+4 tri bands, smart antenna, USB)
Best Fit Applications
Offices, hotels, retail, schools, clinics, warehouses and public areas.
Technical Specifications
| Model | AP673 |
|---|---|
| Part Number | 50087291-004 |
| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax/be 5 GHz: 802.11a/n/ac/ac Wave 2/ax/be 6 GHz: 802.11a/ax/be |
| Installation Type | Wall, Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod), Junction Box (86 mm/1-Gang 120 mm/Octagonal/2-Gang 120 mm) |
| Optimal Signal Distance (m) | 40 |
| Max Number of Access Users | 1024 |
| Recommended Number of Access Users | 300 |
| Device Rate | 13.66 Gbps |
| Maximum number of physical ports on the entire device | 5GE (RJ45) x 1, 100M/1000M/2500M/5000M auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing |
| Radio number | 3 |
| Maximum channel bandwidth [MHz] | Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 80 MHz Radio 2 (6 GHz): 320 MHz |
| Maximum transmit power | 2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz (2x2): 20 dBm/chain 23 dBm (combined power) 6 GHz (4x4): 20 dBm/chain 26 dBm (combined power) |
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 Radio 2 (6 GHz): 4x4 |
| Maximum power consumption [W] | 21.1 W (excluding USB) |
| Input voltage range [V] | DC: 12 V ± 10% PoE: 802.3at/af |
| Dimensions without packaging (H x W x D) [mm(in.)] | Diameter x depth: 220 mm x 45 mm (8.66 in. x 1.77 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 72 mm x 260 mm x 255 mm (2.83 in. x 10.24 in. x 10.04 in.) |
| Weight without packaging [kg(lb)] | 0.745 kg (1.64 lb) |
| Weight with packaging [kg(lb)] | 1.230 kg (2.71 lb) |
| Long-term operating temperature [°C(°F)] | –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4 GHz: 4 dBi/chain (peak gain) 2 dBi (combined gain) 5 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) 6 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) |
| Operating frequency band | 2.4GHz, 5GHz, 6GHz |
