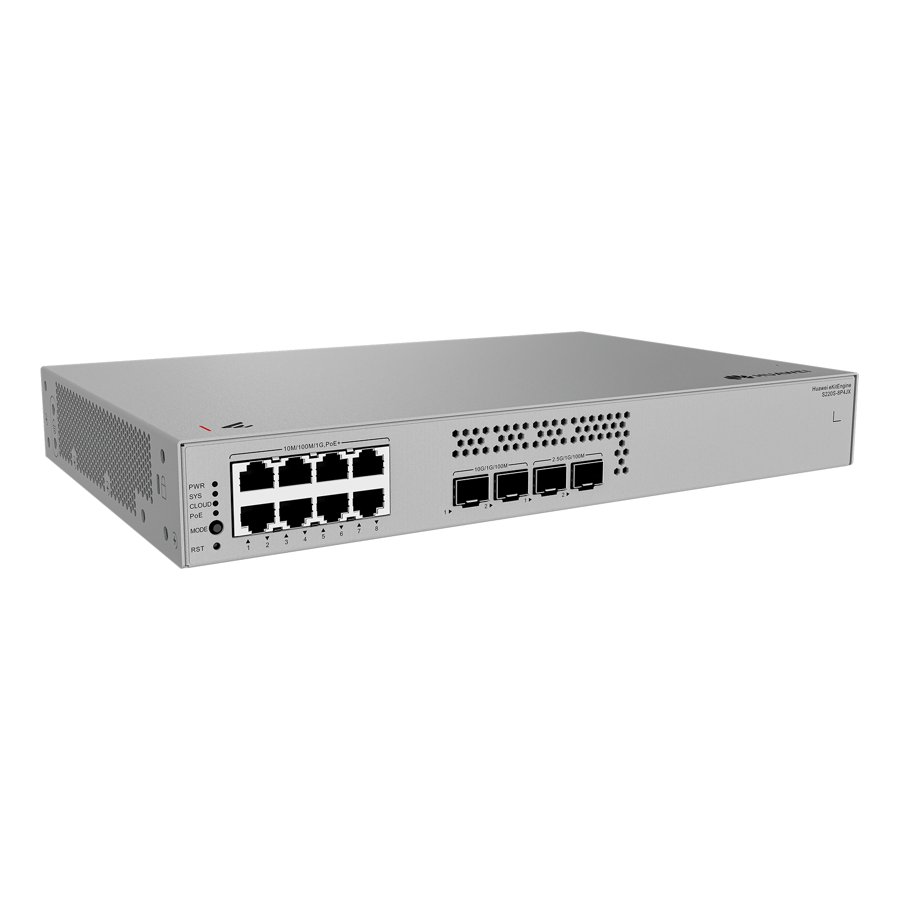

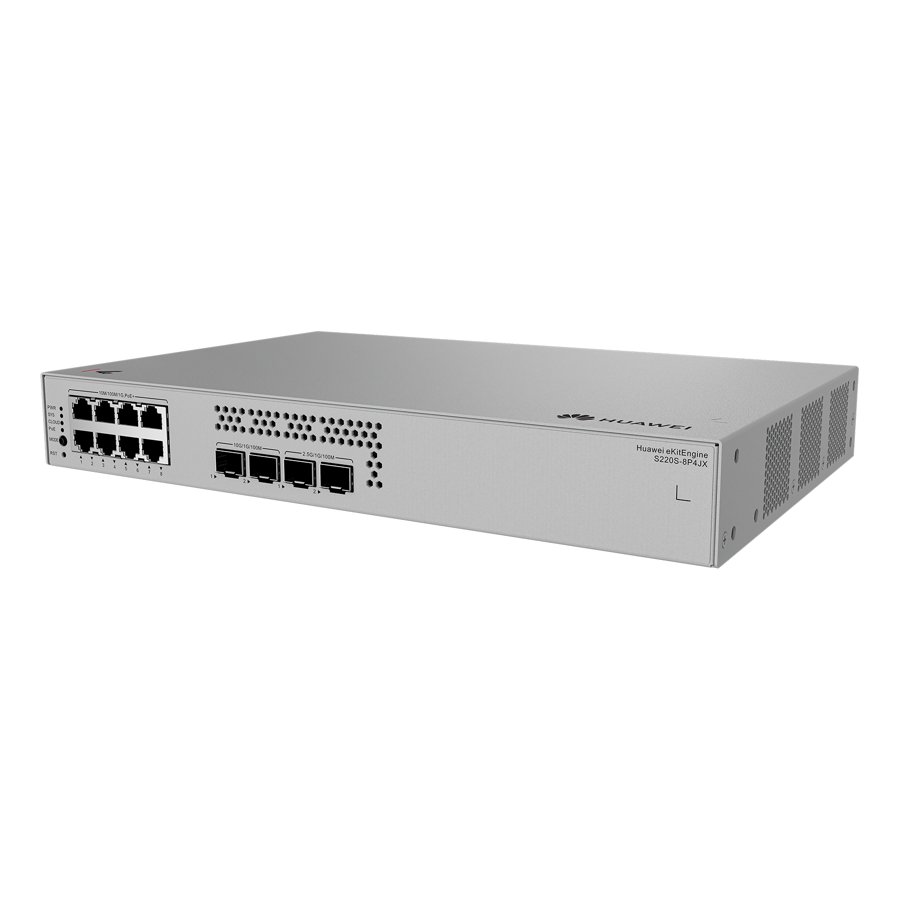

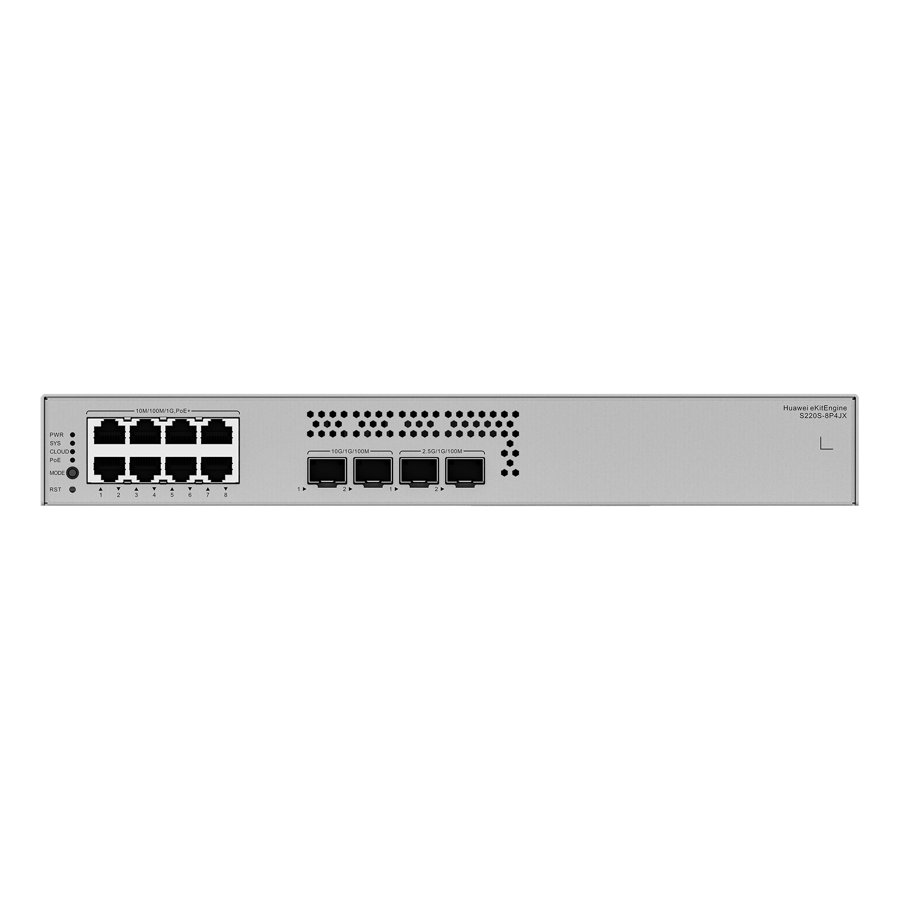

Huawei eKitEngine S220S-8P4JX Managed PoE+ Switch, 8 GE PoE+ + 2 10GE SFP+ + 2 2.5GE SFP, 128 W, Fanless
Huawei eKitEngine S220S-8P4JX Managed PoE+ Switch, 8 GE PoE+ + 2 10GE SFP+ + 2 2.5GE SFP, 128 W, Fanless من منتجات سويتش شبكات. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A Huawei eKit compact managed PoE+ switch: 8 Gigabit PoE+ ports with a 128 W budget, 2 x 10GE SFP+ and 2 x 2.5GE SFP uplinks, fanless silent design for cabinets, offices and shops.
- 8 x GE RJ45 PoE+ (128 W budget)
- 2 x 10GE SFP+ uplinks
- 2 x 2.5GE SFP ports
- 66 Gbit/s switching, 49 Mpps
- Fanless, built-in AC power
عام
| الموديل | S220S-8P4JX |
|---|
Key Features
- 8 x GE RJ45 PoE+ (128 W budget)
- 2 x 10GE SFP+ uplinks
- 2 x 2.5GE SFP ports
- 66 Gbit/s switching, 49 Mpps
- Fanless, built-in AC power
- Rack, desk or wall mounting
Best Fit Applications
Small offices, shops, CCTV and Wi-Fi access with PoE cameras and access points.
Technical Specifications
| Part Number | 98012473 |
|---|---|
| GE RJ45 | 8 PoE+ (1G/100M/10M) |
| 10G SFP+ | 2 (10G/1G/100M) |
| 2.5G SFP | 2 (2.5G/1G/100M) |
| PoE Budget | 128 W |
| Switching Capacity | 66 Gbit/s |
| Packet Forwarding Rate | 49 Mpps |
| Power Supply | Built-in AC, 90-300 V AC |
| Max Power Consumption | 161.56 W at full PoE load |
| Cooling | Natural heat dissipation (fanless) |
| Surge Protection | ±6 kV |
| Operating Temperature | -5°C to +40°C |
| Installation | Rack, desk, wall |
| Dimensions (H x W x D) | 43.6 x 320 x 210 mm |
| Weight | 2.53 kg |
